15SH-A Series
Manufacturer: Adam Tech
Beta
⌘K
CONN SHROUDED HEADER (4 SIDES) HDR 4 POS 1.5MM SOLDER ST TOP ENTRY THRU-HOLE
| Part | Contact Type | Style | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Mounting Type | Number of Positions | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Insulation Material | Material Flammability Rating | Voltage Rating | Contact Material | Fastening Type | Number of Positions Loaded | Contact Shape | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Insulation Color | Shrouding | Insulation Height | Insulation Height | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Male Pin | Board to Cable/Wire | Kinked Pin Solder | 85 °C | -25 °C | 1 | Through Hole | 4 | Tin | 0.181 in | 4.6 mm | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 1 A | 0.106 in | 2.69 mm | Header | Ivory | Shrouded - 4 Wall | |||

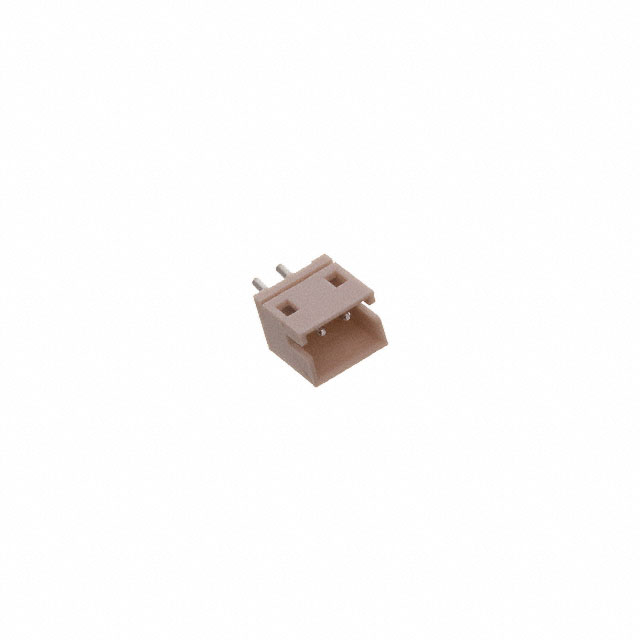

 Adam Tech | Male Pin | Board to Cable/Wire | Kinked Pin Solder | 85 °C | -25 °C | 1 | Right Angle Through Hole | 2 | Tin | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 100 VAC | Brass | Friction Lock | All | Circular | 1.5 A | 0.106 in | 2.69 mm | Header | Ivory | Shrouded - 4 Wall | 3.7 mm | 0.146 in | |||
 Adam Tech | Male Pin | Board to Cable/Wire | Solder | 85 °C | -25 °C | 1 | Surface Mount | 5 | Tin | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 0.7 A | Header | Natural | Shrouded - 4 Wall | 5 mm | 0.197 " | Solder Retention | |||||
 Adam Tech | Male Pin | Board to Cable/Wire | Solder | 85 °C | -25 °C | 1 | Surface Mount | 8 | Tin | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 0.7 A | Header | Natural | Shrouded - 4 Wall | 5 mm | 0.197 " | Solder Retention | |||||

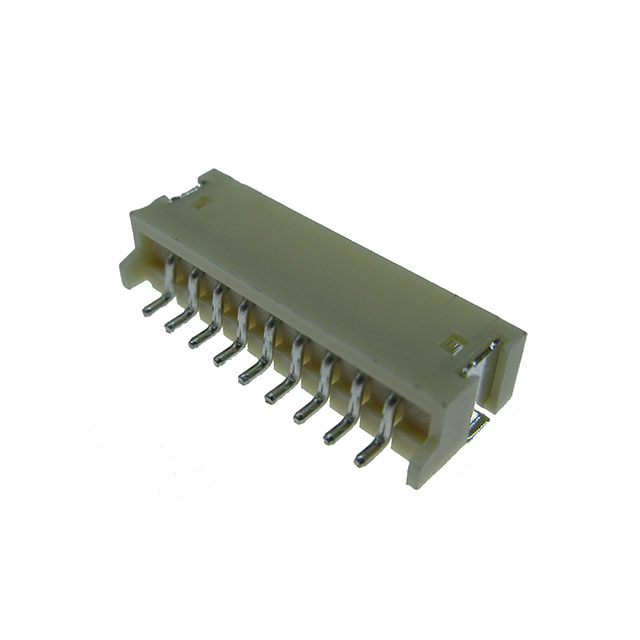

 Adam Tech | Male Pin | Board to Cable/Wire | Solder | 85 °C | -25 °C | 1 | Right Angle Surface Mount | 9 | Tin | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | Header | Ivory | Shrouded - 4 Wall | 3.7 mm | 0.146 in | Solder Retention | |||||
 Adam Tech | Male Pin | Board to Cable/Wire | Kinked Pin Solder | 85 °C | -25 °C | 1 | Through Hole | 2 | Tin | 0.181 in | 4.6 mm | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 1 A | 0.106 in | 2.69 mm | Header | Ivory | Shrouded - 4 Wall | |||
 Adam Tech | Male Pin | Board to Cable/Wire | Kinked Pin Solder | 85 °C | -25 °C | 1 | Through Hole | Tin | 0.181 in | 4.6 mm | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 1 A | 0.106 in | 2.69 mm | Header | Ivory | Shrouded - 4 Wall | ||||
 Adam Tech | Male Pin | Board to Board Cable | Solder | 85 °C | -25 °C | 1 | Surface Mount | Tin | Thermoplastic | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 0.7 A | Header | Natural | Shrouded - 4 Wall | 5 mm | 0.197 " | Solder Retention | |||||
 Adam Tech | Male Pin | Board to Cable/Wire | Solder | 85 °C | -25 °C | 1 | Right Angle Surface Mount | 7 | Tin | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | Header | Ivory | Shrouded - 4 Wall | 3.7 mm | 0.146 in | Solder Retention | |||||
 Adam Tech | Male Pin | Board to Cable/Wire | Solder | 85 °C | -25 °C | 1 | Surface Mount | 4 | Tin | UL94 V-0 | 50 VAC | Brass | Friction Lock | All | Circular | 0.7 A | Header | Natural | Shrouded - 4 Wall | 5 mm | 0.197 " | Solder Retention |
