TLE7241 Series

Catalog

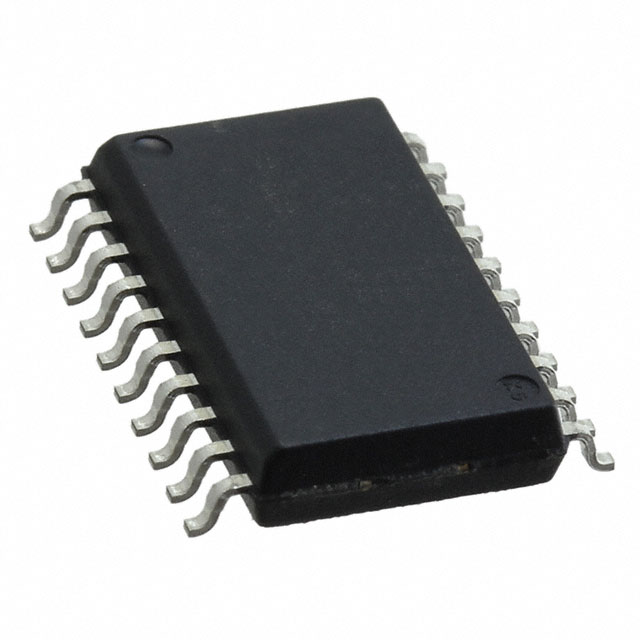

IC PWR DRIVER N-CHAN 1:2 DSO-20

Part	Interface	Rds On (Typ)	Package / Case [diameter]	Package / Case	Features	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Fault Protection	Ratio - Input:Output [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Switch Type
Infineon Technologies TLE7241EXUMA1	SPI	240 mOhm	7.5 mm	20-SOIC	Slew Rate Controlled	4.75 V	5.25 V	Surface Mount	2	1.2 A	N-Channel	9 V	18 V	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	1:2	PG-DSO-20-27	150 °C	-40 °C	Low Side	Relay Solenoid Driver
Infineon Technologies TLE7241EXUMA2	SPI	240 mOhm	7.5 mm	20-SOIC	Slew Rate Controlled	4.75 V	5.25 V	Surface Mount	2	1.2 A	N-Channel	9 V	18 V	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	1:2	PG-DSO-20-27	150 °C	-40 °C	Low Side	Relay Solenoid Driver
