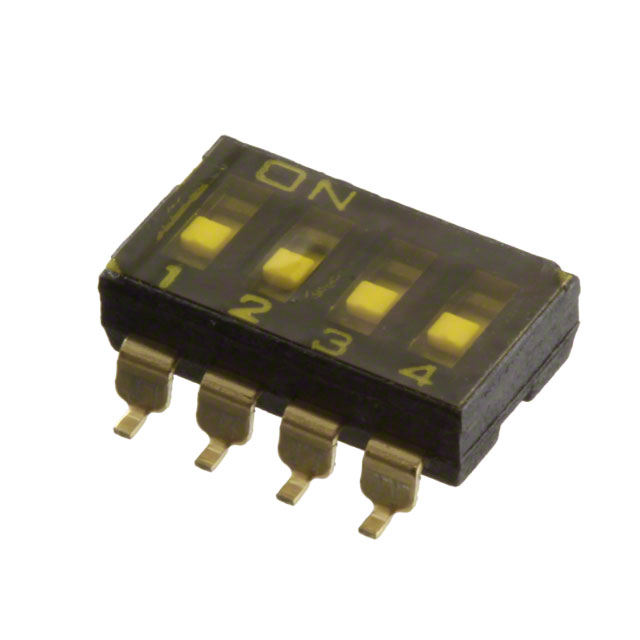

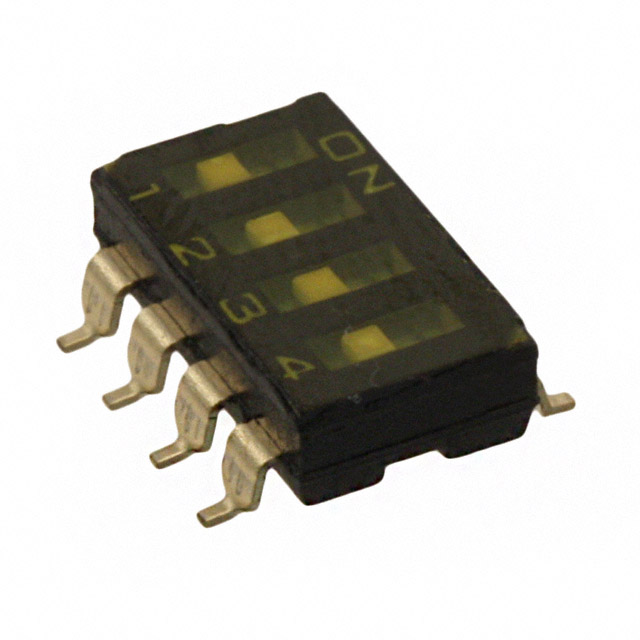

A6S-4102 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Number of Positions | Voltage Rating | Current Rating (Amps) | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Height Above Board [z] | Height Above Board [z] | Washable | Length [x] | Length [x] | Features | Actuator Level | Actuator Type | Circuit | Pitch | Pitch | Mounting Type | Mechanical Life | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 1000 Cycles | 4 | 24 VDC | 25 mA | Gull Wing | -20 ░C | 70 °C | 3.7 mm | 0.146 in | 11.1 mm | 0.437 in | Tape Seal | Flush Recessed | Slide (Standard) | SPST | 2.54 mm | 0.1 " | Surface Mount | 1000 Cycles | Gold | |
 Omron Electronics Inc-EMC Div | 1000 Cycles | 4 | 24 VDC | 25 mA | Gull Wing | -20 ░C | 70 °C | 3.7 mm | 0.146 in | 11.1 mm | 0.437 in | Tape Seal | Flush Recessed | Slide (Standard) | SPST | 2.54 mm | 0.1 " | Surface Mount | 1000 Cycles | Gold |
