1.6-A dual synchronous buck LED driver with SPI
Key Features
• AEC-Q100 qualified for automotive applicationsGrade 1: –40°C to 125°C ambient operating temperatureDevice HBM classification level H1CDevice CDM classification level C5Functional Safety-CapableDocumentation available to aid functional safety system design4.5-V to 65-V wide input voltage rangeUp to 1.6-A continuous output current with 4% accuracyAdaptive on-time average current controlProgrammable switching frequency from 100-kHz to 2.2-MHzAdvanced dimming operation10-bit precision analog dimming10-bit precision internal PWM dimmingSupports external PWM dimming inputOptimized for external shunt dimming including LED Matrix ManagerCycle-by-cycle switch overcurrent protectionSwitch thermal protectionSerial peripheral interface (SPI)Configurable analog reference, switching frequency, and PWM dimming duty cycleFault monitoring and reportingLimp-home (LH) and stand-alone mode operationAEC-Q100 qualified for automotive applicationsGrade 1: –40°C to 125°C ambient operating temperatureDevice HBM classification level H1CDevice CDM classification level C5Functional Safety-CapableDocumentation available to aid functional safety system design4.5-V to 65-V wide input voltage rangeUp to 1.6-A continuous output current with 4% accuracyAdaptive on-time average current controlProgrammable switching frequency from 100-kHz to 2.2-MHzAdvanced dimming operation10-bit precision analog dimming10-bit precision internal PWM dimmingSupports external PWM dimming inputOptimized for external shunt dimming including LED Matrix ManagerCycle-by-cycle switch overcurrent protectionSwitch thermal protectionSerial peripheral interface (SPI)Configurable analog reference, switching frequency, and PWM dimming duty cycleFault monitoring and reportingLimp-home (LH) and stand-alone mode operation
Description
AI
The TPS92520-Q1 is a monolithic dual synchronous buck LED driver with a wide 4.5-V to 65-V operating input voltage range that can independently power two strings of series connected LEDs. The TPS92520-Q1 implements an adaptive on-time average current mode control and is designed to be compatible with shunt FET dimming techniques and LED matrix manager-based dynamic beam headlamps. The adaptive on-time control provides near constant switching frequency that can be set between 100-kHz and 2.2-MHz. Inductor current sensing and closed-loop feedback enables better than ±4% accuracy over wide input voltage, output voltage and ambient temperature range.
The high performance LED driver can independently modulate LED current using both analog or PWM dimming techniques. Linear analog dimming response with over 16:1 range is obtained by programming the 10-bit IADJ value via SPI. PWM dimming of LED current is achieved by directly modulating the corresponding UDIM input pin with the desired duty cycle or by enabling the internal PWM generator circuit. The PWM generator translates the 10-bit PWM register value to a corresponding duty cycle by comparing it to a programmable digital counter.
The TPS92520-Q1 incorporates advanced SPI programmable diagnostic and fault protection featuring: cycle-by-cycle switch current limit, bootstrap undervoltage, LED open, LED short, thermal warning and thermal shutdown. An on-board 10-bit ADC samples critical input parameters required for system health monitoring and diagnostics.

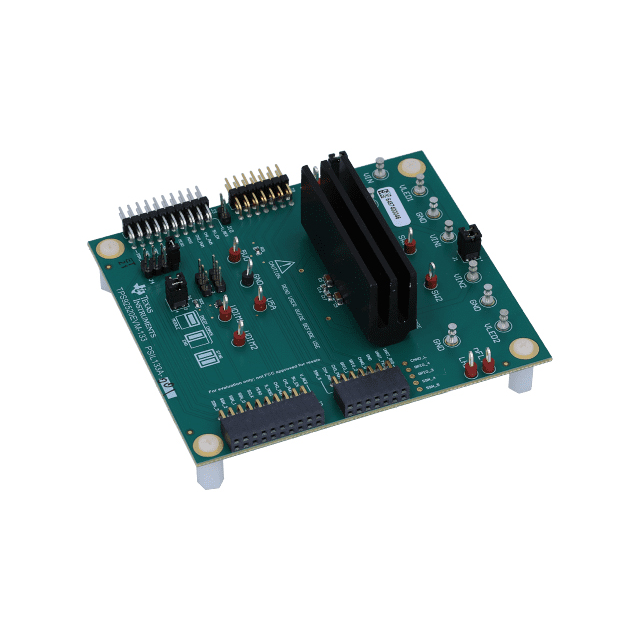

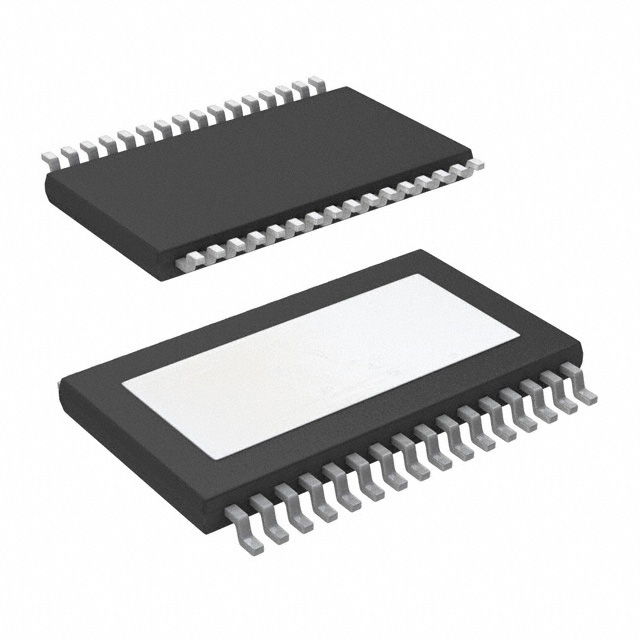

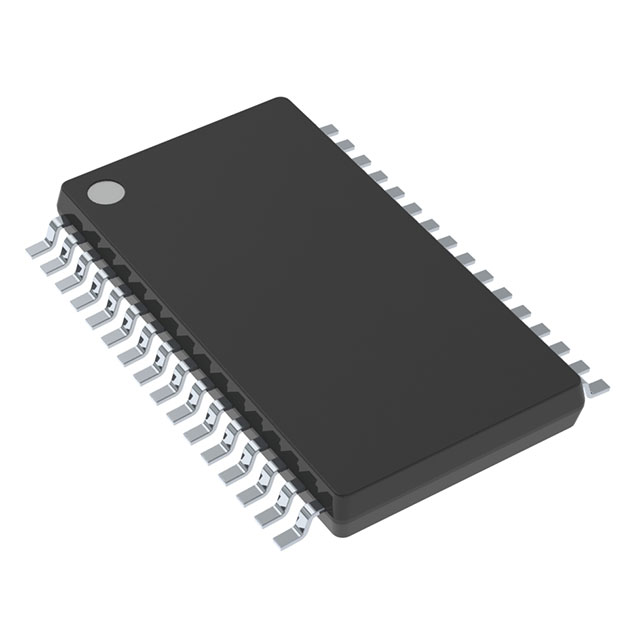

The TPS92520-Q1 is available in a 8.1-mm x 11-mm thermally-enhanced 32-pin HTSSOP package with a 2.75-mm x 3.45-mm top-exposed and bottom-exposed pad.
