1571294 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Features	Actuator Material	Termination Style	Mounting Type	Actuator Type	Contact Rating @ Voltage	Ingress Protection	Switch Function	Outline [x]	Outline [y]	Illumination	Switch Travel	Actuator Orientation	Circuit	Actuator Height off PCB, Vertical	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]

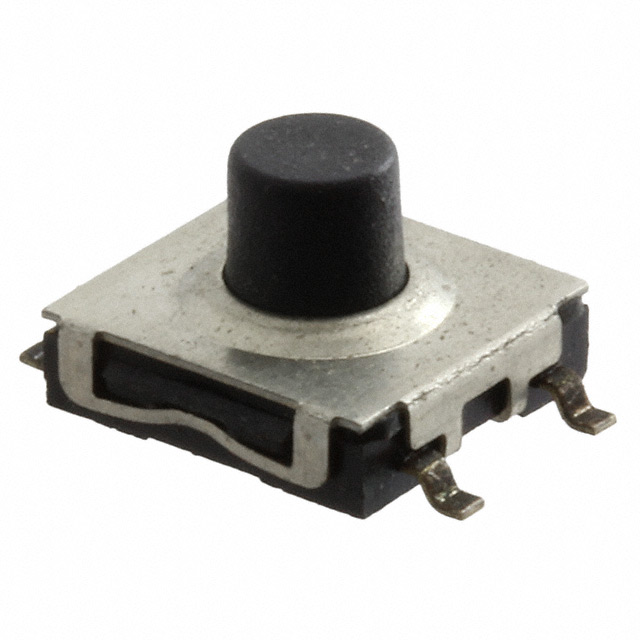

TE Connectivity Raychem Cable Protection 1571294-3	Sealed - Fully	Thermoplastic	Gull Wing	Surface Mount	Standard	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	Off-Mom	7.6 mm	7.3 mm	Non-Illuminated	0.35 mm	Top Actuated	SPST-NO	5 mm	1000000 Cycles	-35 °C	85 °C

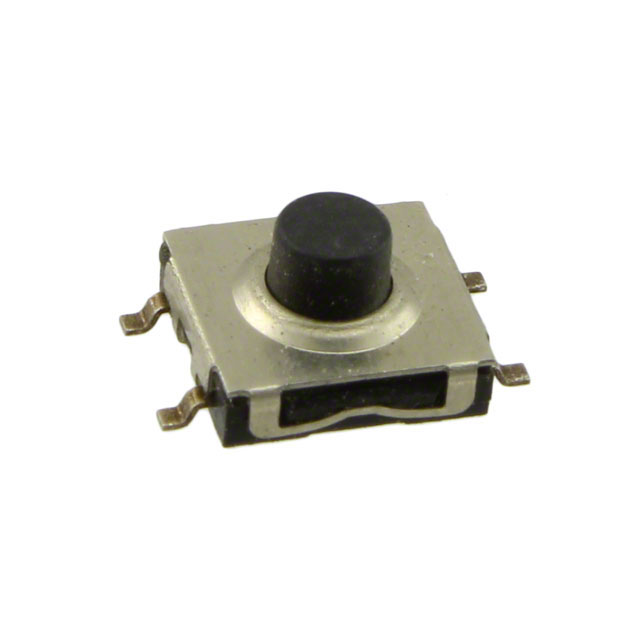

TE Connectivity Raychem Cable Protection 1571294-1	Sealed - Fully	Thermoplastic	Gull Wing	Surface Mount	Standard	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	Off-Mom	7.6 mm	7.3 mm	Non-Illuminated	0.35 mm	Top Actuated	SPST-NO		1000000 Cycles	-35 °C	85 °C	4.3 mm
