83656 Series
Manufacturer: Belden Inc.
Beta
⌘K

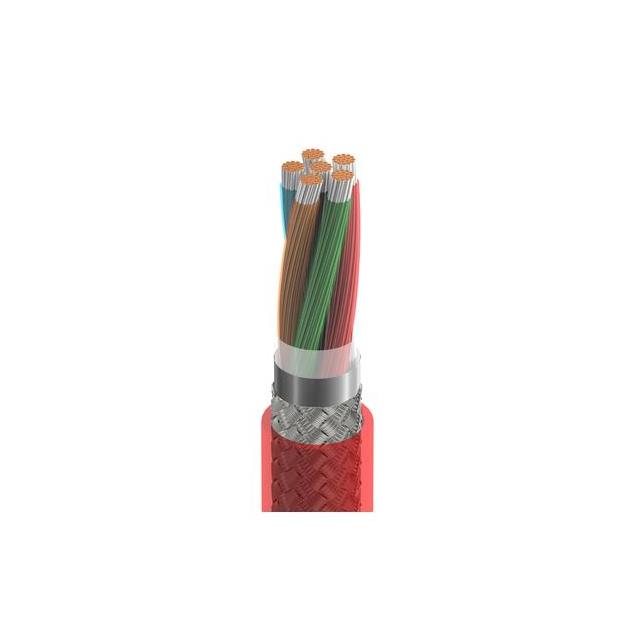

CABLE 6COND 18AWG RED SHLD
| Part | Shield Coverage | Shield Material | Shield Type | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket Color | Voltage | Ratings | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Braid Foil | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | 0.014 in | 0.356 mm | 6 | Fluorinated Ethylene-Propylene (FEP) | 5.79 mm | 0.228 in | 4000 ' | 1219.2 m | Red | 300 VDC | UL Style CMP | Audio Control Instrumentation | -70 °C | 200 °C | Copper Tinned | 18 AWG |
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Braid Foil | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) Plenum | 30 AWG | 19 | 0.014 in | 0.356 mm | 6 | Fluorinated Ethylene-Propylene (FEP) | 5.79 mm | 0.228 in | 1000 ft | 304.8 m | Red | 300 VDC | UL Style CMP | Audio Control Instrumentation | -70 °C | 200 °C | Copper Tinned | 18 AWG |
