3231 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING CIRC 6AWG #5/16 CRIMP

Part	Length - Overall	Length - Overall	Termination	Thickness	Thickness	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Mounting Type	Contact Material	Stud/Tab Size	Features	Insulation	Wire Gauge	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Termination [x]	Length - Termination [x]	Length - Pin [x]	Length - Pin [x]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Pin Diameter	Pin Diameter	Length - Overall	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]
TE Connectivity Raychem Cable Protection 323171	1.246 in	31.65 mm	Crimp	1.45 mm	0.057 in	Circular	0.625 in	15.88 mm	Nickel	Free Hanging (In-Line)	Copper	0.3125 Stud	Brazed Seam Serrated Termination	Non-Insulated	6 AWG
TE Connectivity Raychem Cable Protection 323197			Crimp	1.02 mm	0.04 in	Circular			Tin	Free Hanging (In-Line)	Copper	10 Stud	Serrated Termination	Insulated	8 AWG	7.57 mm	0.298 "	Red	Vinyl	1.328 in	33.73 mm	10.31 mm	0.406 in

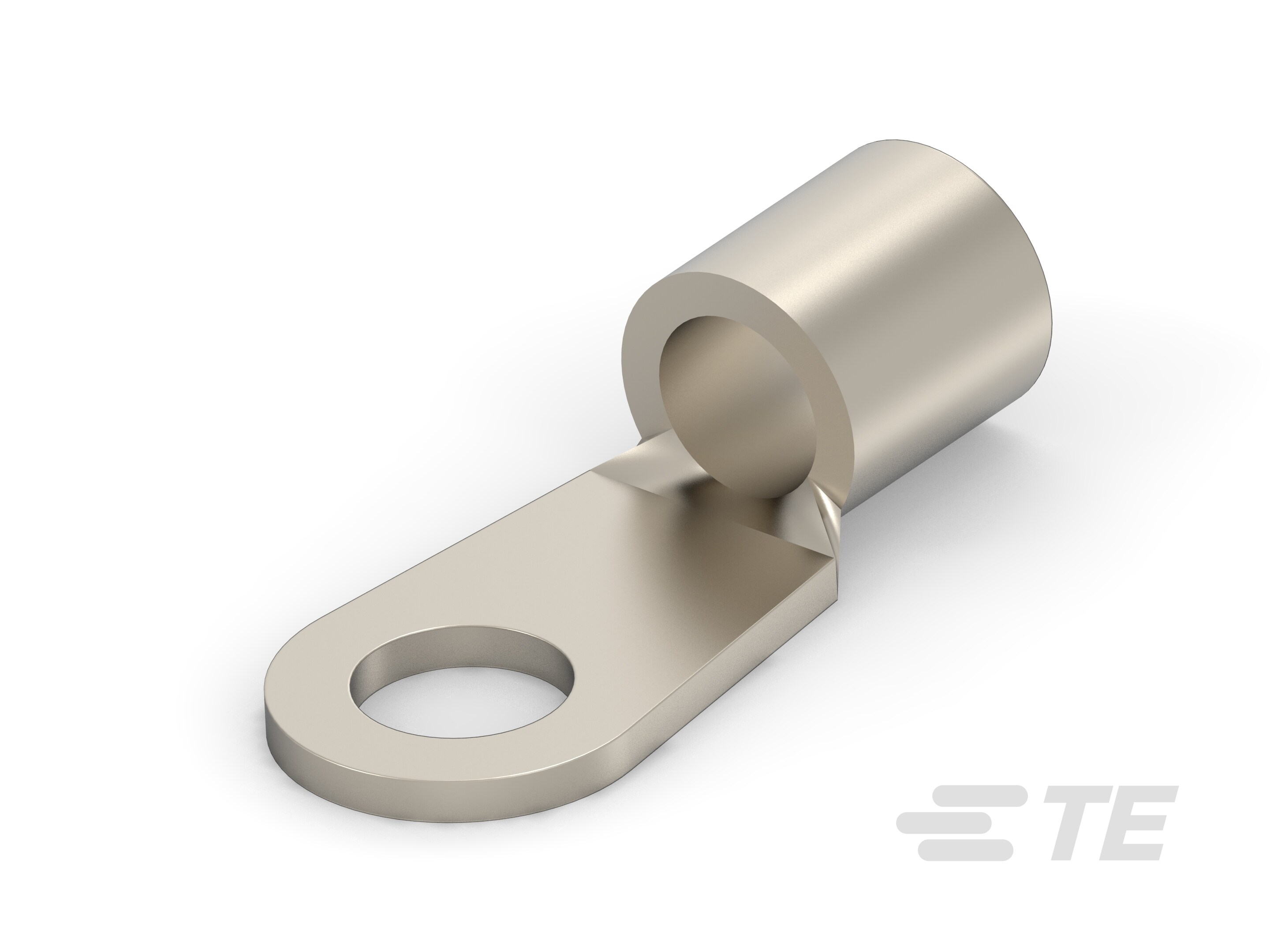

TE Connectivity Raychem Cable Protection 323170			Crimp	1.45 mm	0.057 in	Circular			Nickel	Free Hanging (In-Line)	Copper	0.25 Stud	Brazed Seam Serrated Termination	Non-Insulated	6 AWG					1.168 in	29.67 mm			0.468 in	11.89 mm

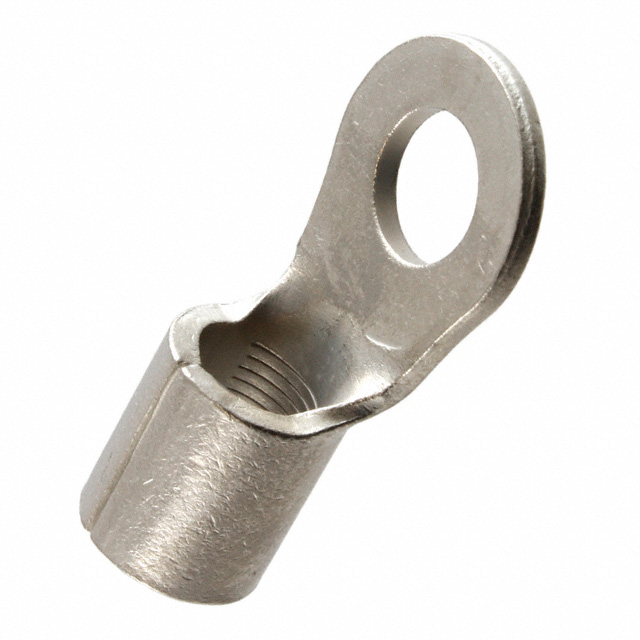

TE Connectivity Raychem Cable Protection 323174			Crimp	1.78 mm	0.07 in	Circular	0.625 in	15.88 mm	Nickel	Free Hanging (In-Line)	Copper	0.3125 Stud	Brazed Seam Serrated Termination	Non-Insulated	4 AWG					1.324 "	33.63 mm

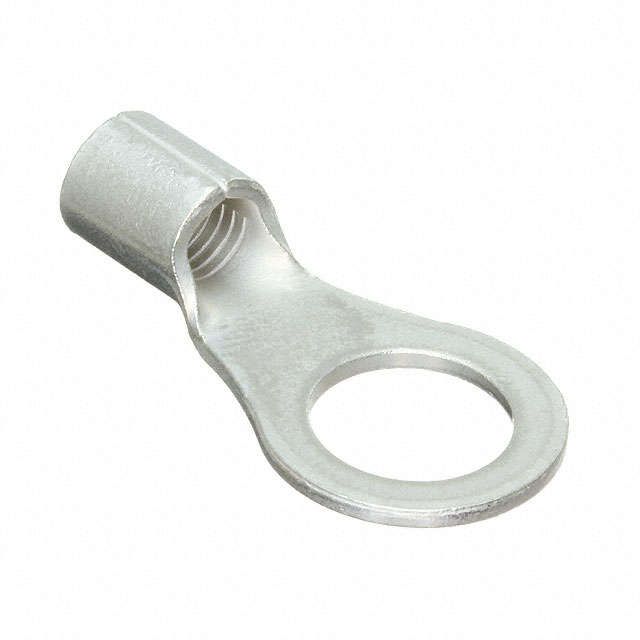

TE Connectivity Raychem Cable Protection 323168			Crimp	1.22 mm	0.048 in	Circular			Nickel	Free Hanging (In-Line)	Copper		Brazed Seam Serrated Termination	Non-Insulated	8 AWG					1.168 in	29.67 mm	15.09 mm	0.594 in			3/8 Stud

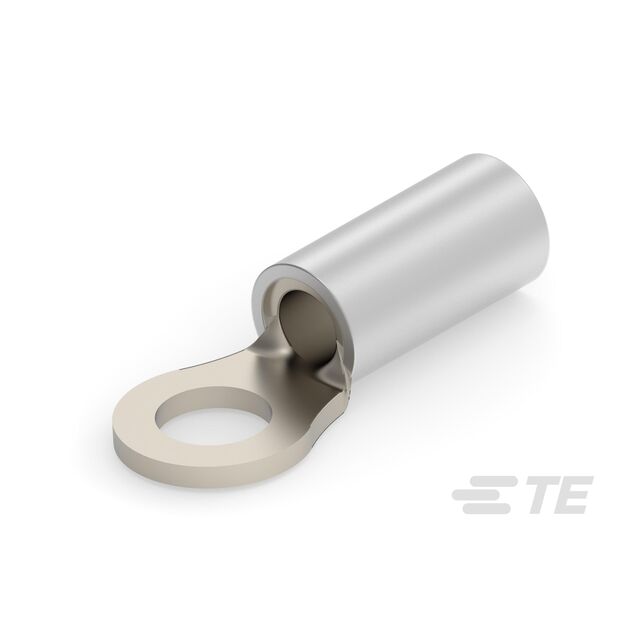

TE Connectivity Raychem Cable Protection 323158			Crimp	0.79 mm	0.031 in	Circular			Nickel	Free Hanging (In-Line)	Copper	6 Stud	Serrated Termination	Non-Insulated						0.68 in	17.27 mm			0.25 "	6.35 mm		3.3 mm	0.08 in	0.13 in	2.03 mm

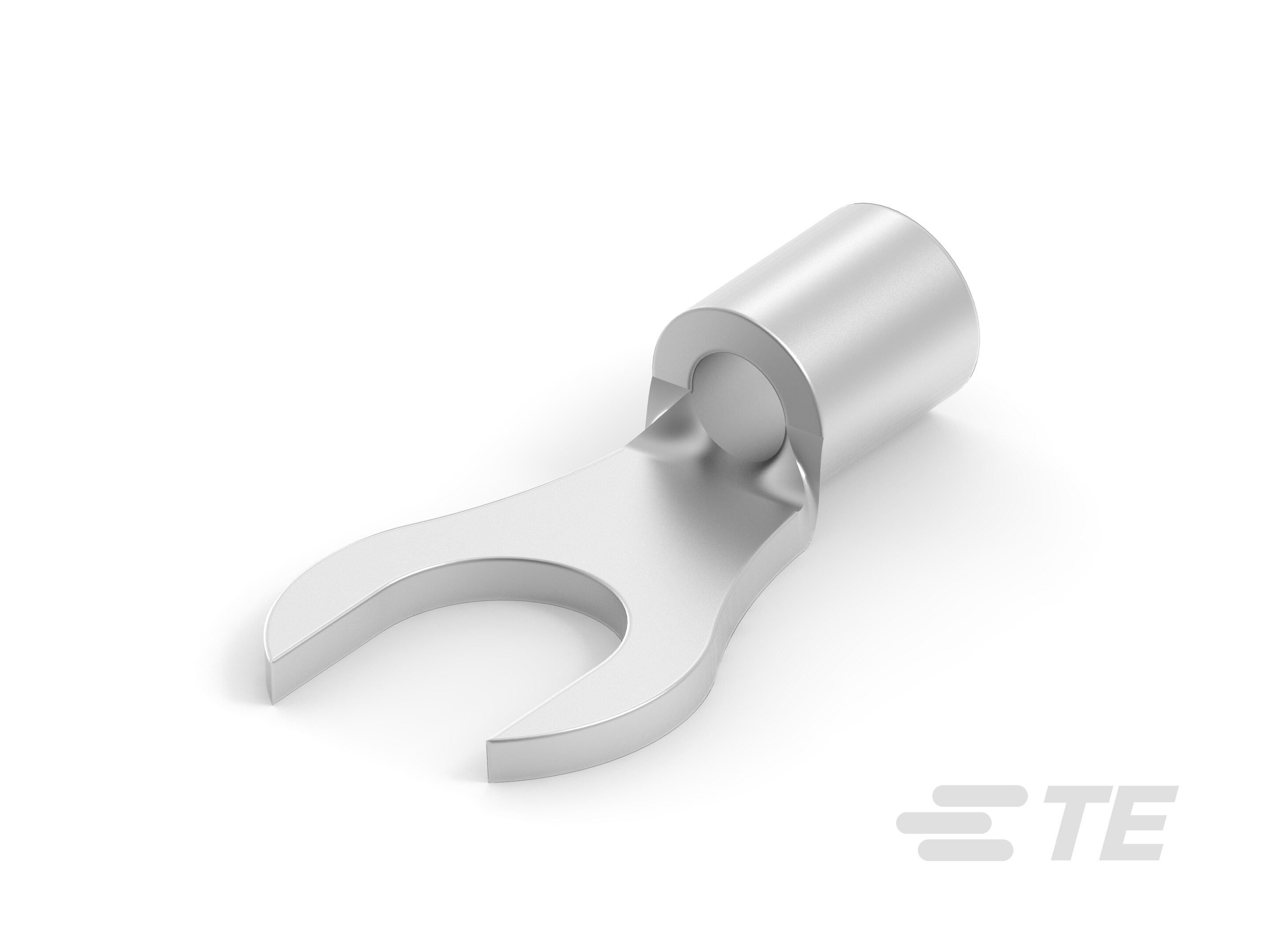

TE Connectivity Raychem Cable Protection 323129	13.89 mm		Crimp	0.79 mm	0.031 in	Slotted			Tin	Free Hanging (In-Line)	Copper		Brazed Seam Serrated Termination	Non-Insulated						0.547 "				0.281 in	7.14 mm	8 Stud					22 AWG	16 AWG

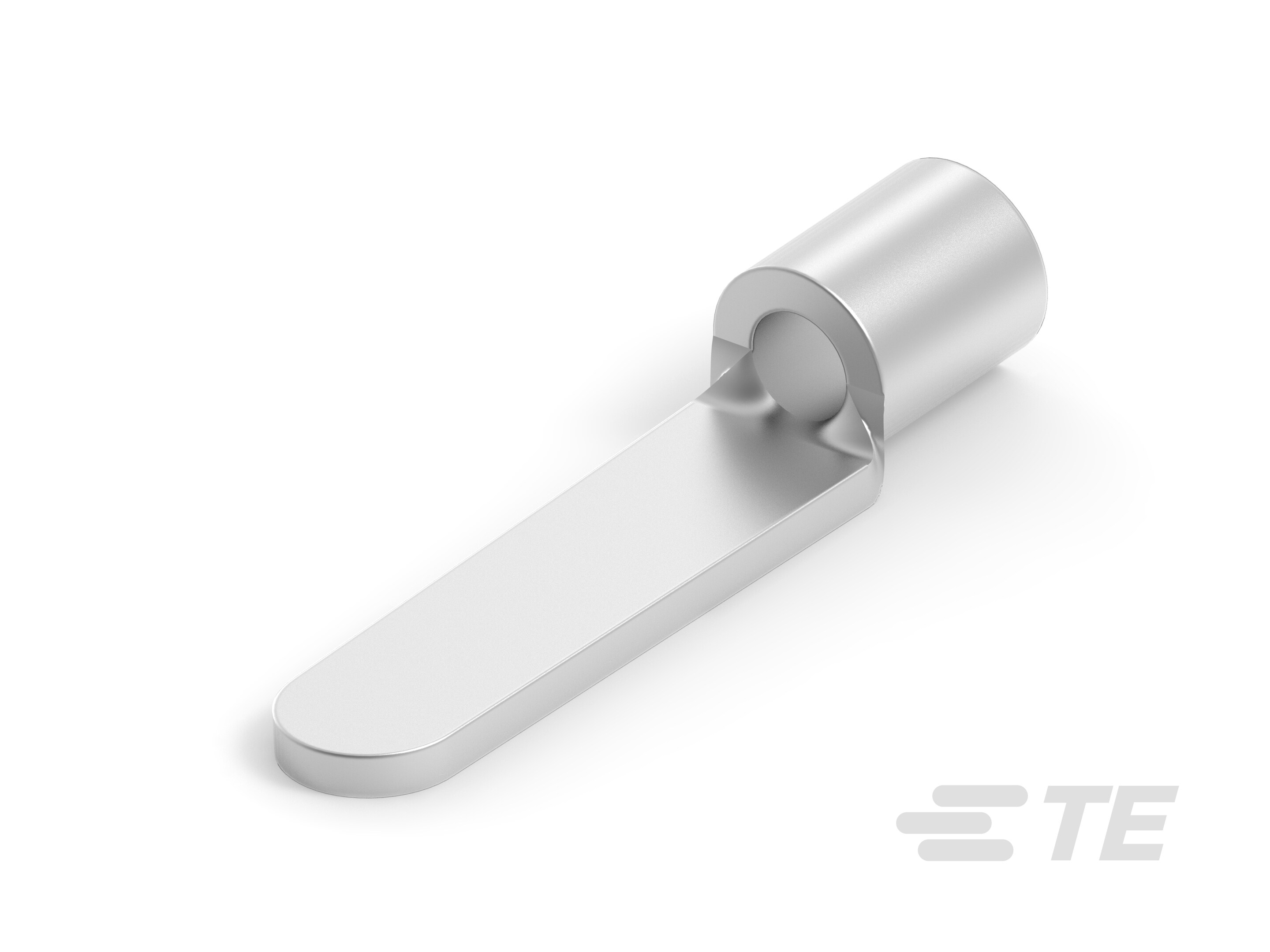

TE Connectivity Raychem Cable Protection 323135	17.3 mm		Crimp						Tin		Copper		Brazed Seam Serrated Termination	Non-Insulated																	22 AWG	16 AWG	0.181 in	4.6 mm	12.7 mm	0.5 in	0.141 in	3.58 mm	0.031 " 0.125 "	0.8 mm 3.17 mm	0.681 in	0.061 "	1.55 mm

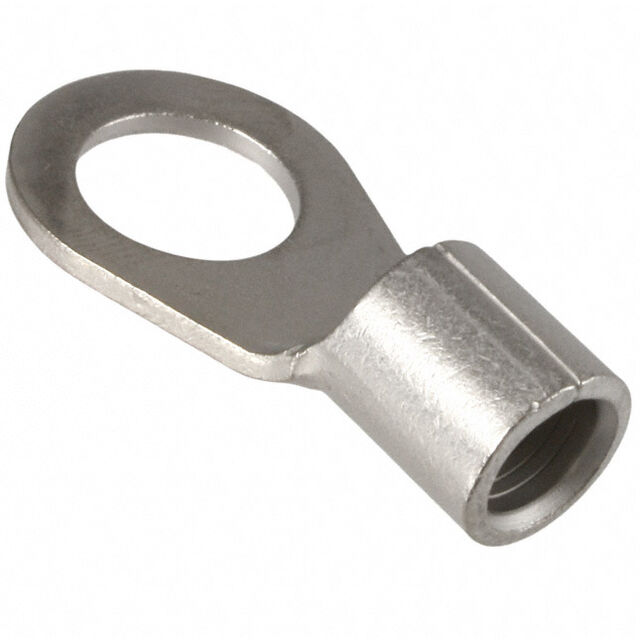

TE Connectivity Raychem Cable Protection 323172	1.246 in	31.65 mm	Crimp	1.45 mm	0.057 in	Circular	0.625 in	15.88 mm	Nickel	Free Hanging (In-Line)	Copper		Brazed Seam Serrated Termination	Non-Insulated	6 AWG											3/8 Stud

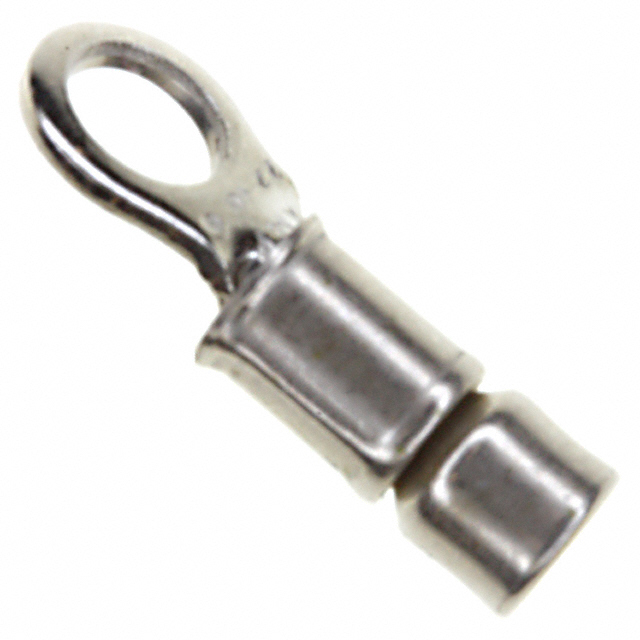

TE Connectivity Raychem Cable Protection 323151	16.38 mm		Crimp	0.79 mm	0.031 in	Circular	0.218 in	5.54 mm	Nickel	Free Hanging (In-Line)	Copper	6 Stud	Serrated Termination	Non-Insulated						0.645 in							2.79 mm	0.051 in	0.11 "	1.3 mm	22 AWG	16 AWG
