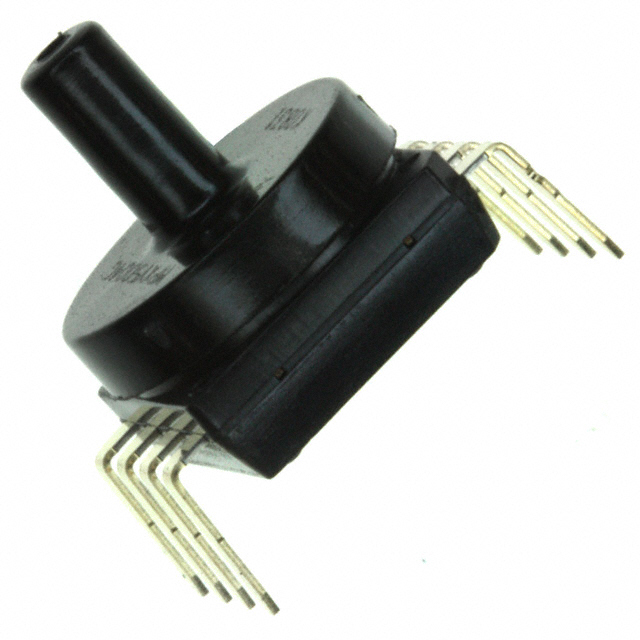

MPXV1 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
PRESSURE SENSOR, GAUGE, 0 KPA, 10 KPA, 3 V, 6 V, SOP
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Applications | Pressure Type | Port Diameter | Port Gender | Port Feature | Mounting Type | Operating Pressure | Maximum Pressure | Features | Package Feature | Package Features | Package Name | Package Pitch | Package Length | Package Width | Port Style | Termination Style | Output Voltage (Max) | Output Voltage (Min) | Output Type | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 6 V | 3 V | Board Mount | Vented Gauge | 0.13 " | Male | Tube | Through Hole | 1.45 PSI | 10.88 PSI | Temperature Compensated | Top Port | Top Port | 8-DIP | 0.55 in | 0.55 in 13.97 mm | 13.97 mm | Barbless | PC Pin | 35 mV | 0 mV | Wheatstone Bridge | 125 °C | -40 °C |
