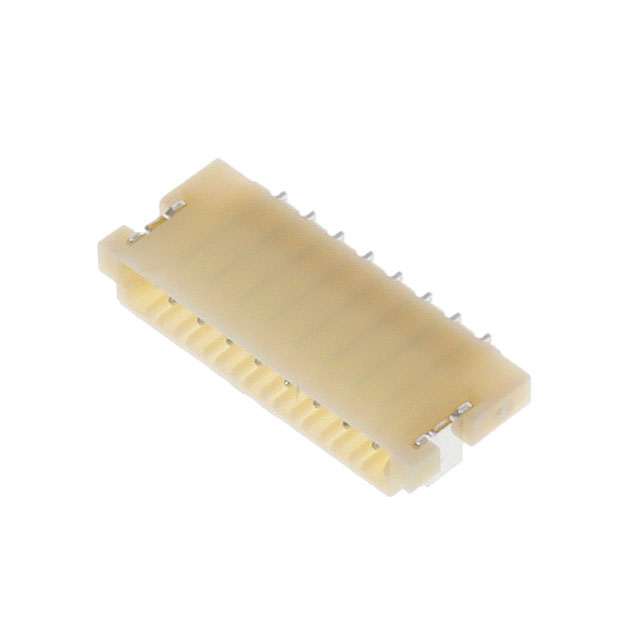

SM08B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 8POS 1MM
| Part | Contact Material | Fastening Type | Insulation Material | Material Flammability Rating | Contact Shape | Voltage Rating | Connector Type | Contact Finish - Post | Number of Rows | Insulation Height [z] | Insulation Height [z] | Style | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Number of Positions | Termination | Features | Contact Type | Mounting Type | Insulation Color | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Phosphor Bronze | Push-Pull | Nylon Polyamide (PA) | UL94 V-0 | Rectangular | 50 V | Header | Tin | 1 | 0.069 in | 1.75 mm | Board to Cable/Wire | Shrouded - 4 Wall | 85 °C | -25 °C | All | 8 | Solder | Solder Retention | Outer Shroud Contact | Right Angle Surface Mount | Natural | 1 mm | 0.039 in |
