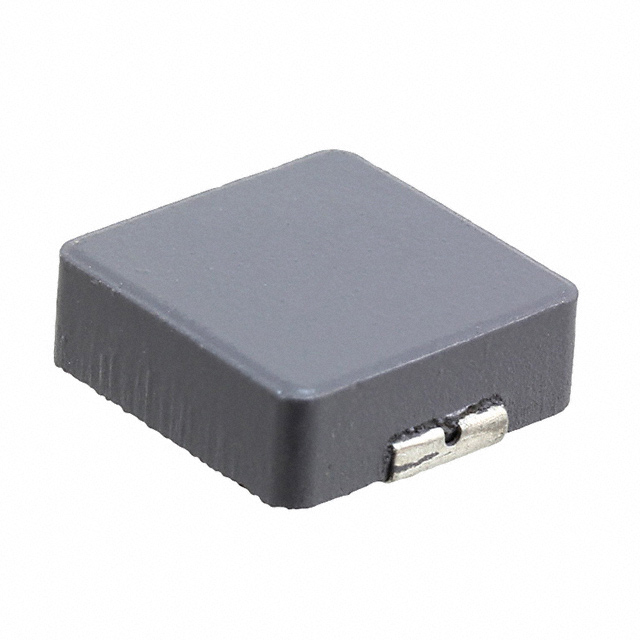

SRP1245A Series

Catalog

POWER INDUCTOR (SMD), 2.2 ΜH, 20 A, SHIELDED, 32 A, SRP1245A SERIES

Part	Inductance Frequency - Test	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shielding	Q @ Freq	Package / Case	Current - Saturation (Isat)	Tolerance	Ratings	DC Resistance (DCR)
Bourns Inc. SRP1245A-2R2M	100 kHz	20 A	0.197 in	5 mm	2.2 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	5.5 mOhm	24 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	32 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-6R8M	100 kHz	11 A	0.197 in	5 mm	6.8 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	18.5 mOhm	12 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	21 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-8R2M	100 kHz	9.5 A	0.197 in	5 mm	8.2 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	22.5 mOhm	11 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	18 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-100M	100 kHz	9 A	0.197 in	5 mm	10 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder		10 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	16 A	20 %	AEC-Q200	25.5 mOhm

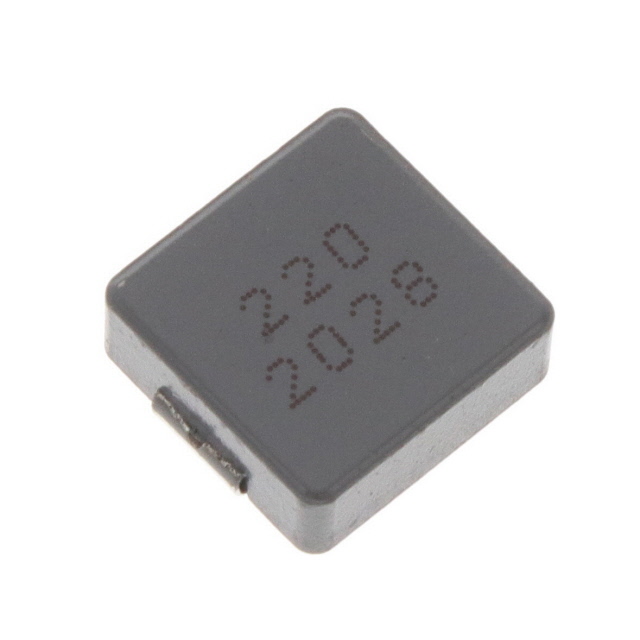

Bourns Inc. SRP1245A-220M	100 kHz	6.5 A	0.197 in	5 mm	22 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	58 mOhm	6 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	10 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-1R8M	100 kHz	21 A	0.197 in	5 mm	1.8 µH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	4.9 mOhm	27 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	40 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-R82M	100 kHz	31 A	0.197 in	5 mm	820 nH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder		45 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	52 A	20 %	AEC-Q200	2.1 mOhm
Bourns Inc. SRP1245A-R50M	100 kHz	37 A	0.197 in	5 mm	500 nH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	1.3 mOhm	65 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	20 100 kHz	Nonstandard	60 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-R39M	100 kHz	42 A	0.197 in	5 mm	390 nH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	0.95 mOhm	78 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	15 100 kHz	Nonstandard	70 A	20 %	AEC-Q200
Bourns Inc. SRP1245A-R22M	100 kHz	52 A	0.197 in	5 mm	220 nH	12.5 mm	13.5 mm	0.531 in	0.492 "	Carbonyl Powder	0.7 mOhm	120 MHz	Drum Core Wirewound	-40 C	150 °C	Surface Mount	Shielded	10 100 kHz	Nonstandard	110 A	20 %	AEC-Q200
