3-100 Series

Catalog

PWR ENT RCPT IEC320-2-2F PANEL

Part	Current Rating - Appliance Inlet	Mounting Type	Ingress Protection	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Filter Type	Panel Thickness	Panel Thickness	Connector Type	Approval Agency	Material Flammability Rating	Voltage Rating - Appliance Inlet	Connector Style	Electrical Life	Mechanical Life	Current Rating (Amps)	Actuator Type	Illumination Voltage (Nominal)	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Actuator Marking	Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Termination	Termination	Termination	Current Rating - Filter
SCHURTER Inc. 3-100-405	10 A	Panel Mount Snap-In	IP20	Light Pipe V-Lock Notch	32.5 mm	24.9 mm	Rectangular	Unfiltered - Commercial	1.7 mm	0.067 in	Receptacle Female Sockets	CCC CSA ENEC UL VDE	UL94 V-0	250 VAC	IEC 320-2-2/F

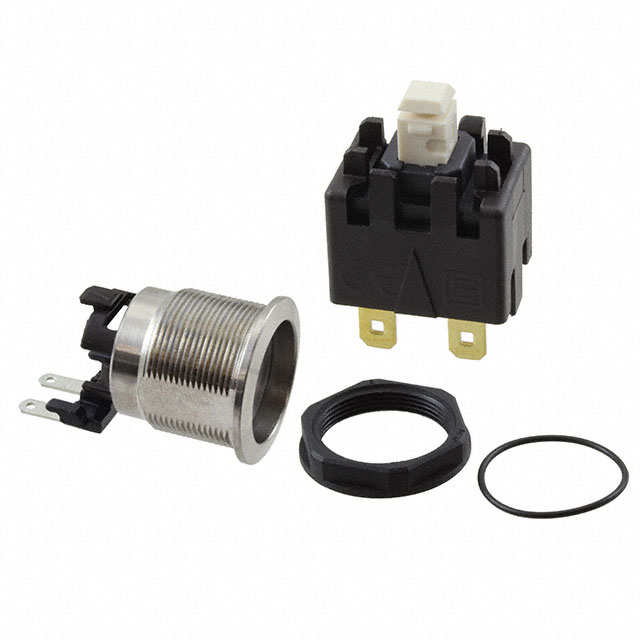

SCHURTER Inc. 3-100-999		Panel Mount Front	IP64 - Dust Tight Water Resistant													20000 Steps	100000 Cycles	16 A	Button Round	24 V	DPST	Quick Connect	19.1 mm	Silver	No Marking	Anti-Vandal Illuminated	85 °C	-20 ░C	Blue LED	30 V	Off-On	250 V

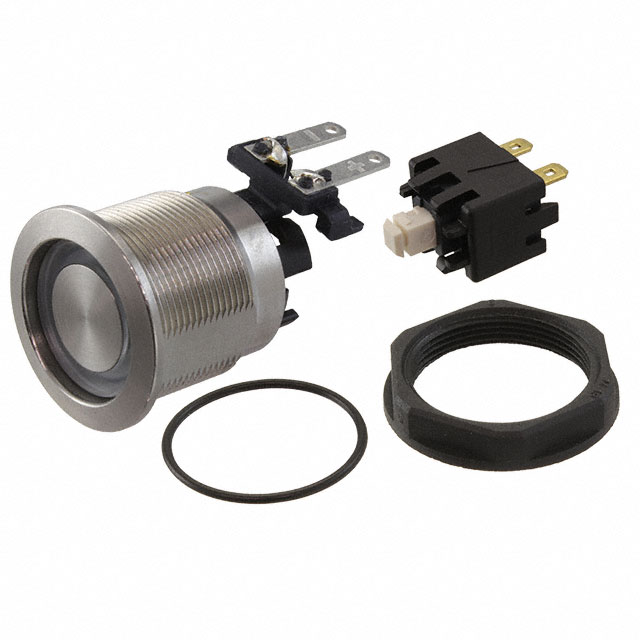

SCHURTER Inc. 3-100-991		Panel Mount Front	IP64 - Dust Tight Water Resistant													20000 Steps	100000 Cycles	16 A	Button Round	24 V	SPST	Quick Connect	19.1 mm	Silver	No Marking	Anti-Vandal Illuminated	85 °C	-20 ░C	Green LED	30 V	Off-On	250 V

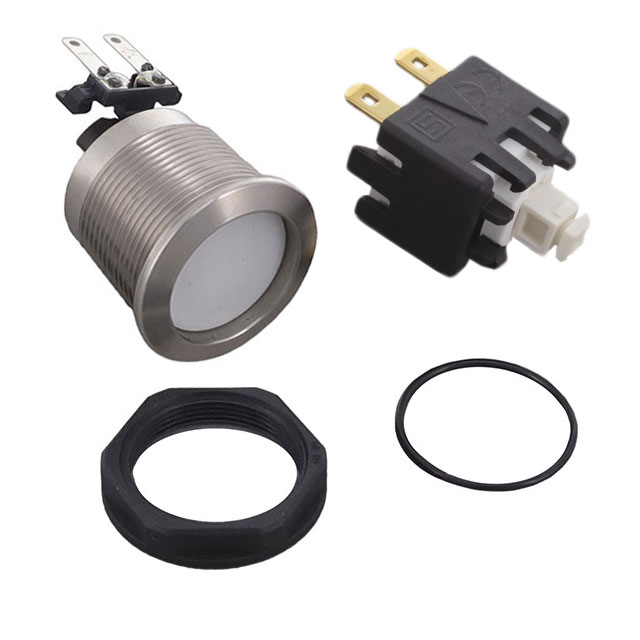

SCHURTER Inc. 3-100-990		Panel Mount Front	IP64 - Dust Tight Water Resistant													20000 Steps	100000 Cycles	16 A	Button Round	24 V	SPST	Quick Connect	19.1 mm	Silver	No Marking	Anti-Vandal Illuminated	85 °C	-20 ░C	LED Red	30 V	Off-On	250 V
SCHURTER Inc. 3-100-987		Panel Mount Front	IP64 - Dust Tight Water Resistant													20000 Steps	100000 Cycles	16 A	Button Round		SPST	Quick Connect	19.1 mm	Silver	No Marking	Anti-Vandal	85 °C	-20 ░C		30 V	Off-On	250 V

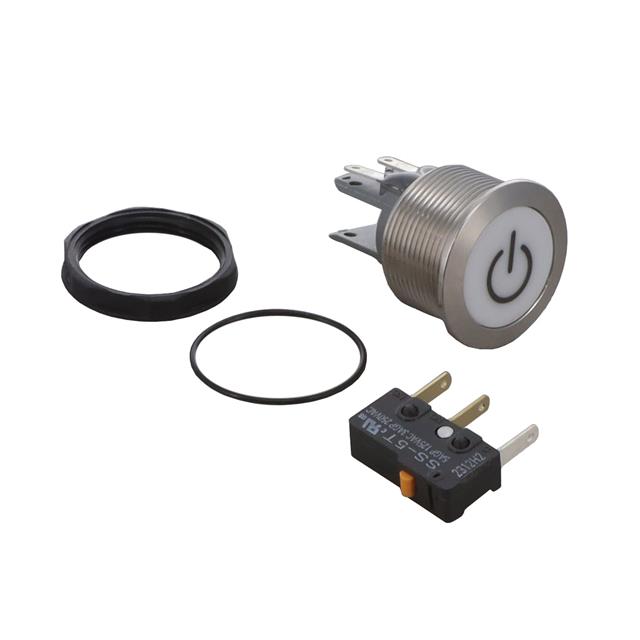

SCHURTER Inc. 3-100-143		Panel Mount Front	IP40													200000 Cycles	1500000 Cycles	5 A	Button Flush Round	24 V	SPDT	Quick Connect - 0.110" (2.8mm)	22.1 mm	Clear	Power Symbol	Anti-Vandal Illuminated	85 °C	-25 °C	Green LED		On-Mom	125 V

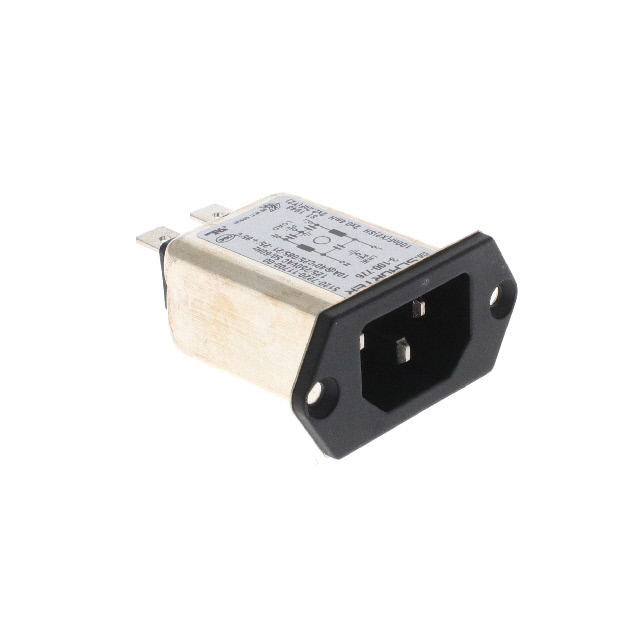

SCHURTER Inc. 3-100-776	10 A	Flange Panel Mount	IP40	Shielded	29 mm	21.5 mm		Filtered (EMI RFI) - Commercial	8 mm	0.315 in	Receptacle Male Blades	CQC cURus ENEC	UL94 V-0	250 VAC	IEC 320-C14																		6.3 mm	Quick Connect	0.25 "	10 A
SCHURTER Inc. 3-100-912		Panel Mount Front	IP64 - Dust Tight Water Resistant													20000 Steps	100000 Cycles	16 A	Button Round	24 V	DPST	Quick Connect	22.1 mm	Silver	No Marking	Anti-Vandal Illuminated	85 °C	-20 ░C	Green LED	30 V	Off-On	250 V
SCHURTER Inc. 3-100-403	10 A	Panel Mount Snap-In	IP20	Light Pipe V-Lock Notch	32.5 mm	24.9 mm	Rectangular	Unfiltered - Commercial	1.7 mm	0.067 in	Receptacle Female Sockets	CCC CSA ENEC UL VDE	UL94 V-0	250 VAC	IEC 320-2-2/F
