9L28014 Series
Manufacturer: Belden Inc.
Beta
⌘K

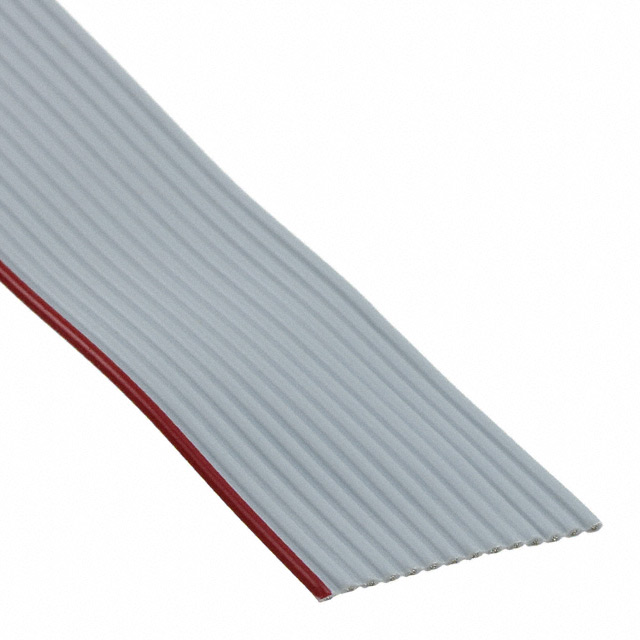

CBL RIBN 14COND 0.05 GRAY 100'
| Part | First Conductor Mark | Conductor Material | Current Rating (Amps) | Insulation Resistance | Jacket Color | Ribbon Thickness | Ribbon Thickness | Length | Length | Ribbon Width [custom] | Ribbon Width [custom] | Pitch | Pitch | Wire Gauge | Shielding | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Red | Copper Tinned | 1 A | 10 GOhm | Gray | 0.89 mm | 0.035 in | 100 ' | 30.48 m | 17.78 mm | 0.7 in | 0.05 in | 1.27 mm | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 14 | 36 AWG | 7 Strands | Flat Cable | UL Style 2651 | -40 C | 105 ░C | 300 VDC |
