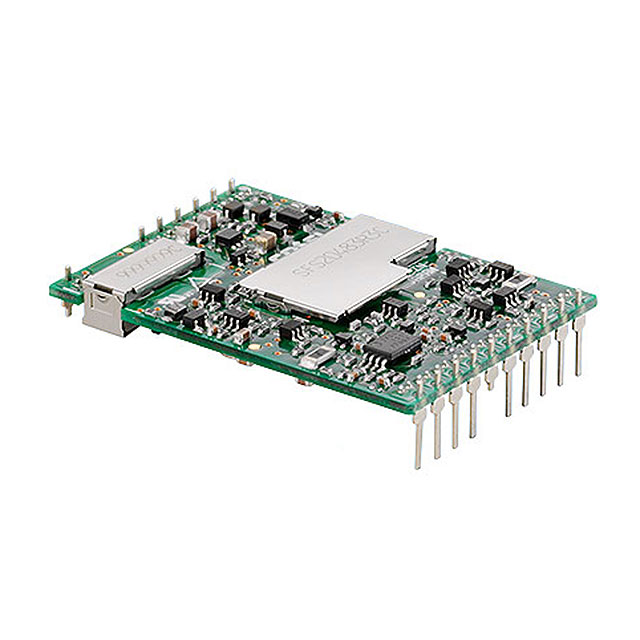

SFS204805 Series

Catalog

DC DC CONVERTER 5V 20W

Part	Voltage - Output 1	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Type	Power (Watts)	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]
Cosel USA, Inc. SFS204805B	5 V	20-SMD Module 17 Leads	4 A	76 V	-40 °C	85 °C	90 %	36 V	1	Surface Mount	Isolated Module	20 W	1.5 kV	ITE (Commercial)	0.2 "	38.7 mm	1.52 in	27.2 mm	5 mm	1.07 in
Cosel USA, Inc. SFS204805C	5 V	20-DIP Module 17 Leads	4 A	76 V	-40 °C	85 °C	90 %	36 V	1	Through Hole	Isolated Module	20 W	1.5 kV	ITE (Commercial)	0.2 "	38.7 mm	1.52 in	27.2 mm	5 mm	1.07 in
