PPPN052 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 10POS 0.079 GOLD SMD

Part	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Mounting Type	Contact Type	Fastening Type	Features	Contact Finish - Post	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height [z]
Sullins Connector Solutions PPPN052FFKP	Polyester	Phosphor Bronze	Flash	Square	UL94 V-0	Surface Mount	Female Socket	Push-Pull	Board Guide	Gold	2	All	Gold	Header	0.079 "	2 mm	2 A	4.4 mm	0.173 in	Black	-40 C	105 ░C	Solder	2 mm	0.079 in	Flash	10
Sullins Connector Solutions PPPN052GFNP	Polyester	Phosphor Bronze	Flash	Square	UL94 V-0	Surface Mount	Female Socket	Push-Pull	Board Guide	Gold	2	All	Gold	Header Top or Bottom Entry	0.079 "	2 mm	2 A			Black	-40 C	105 ░C	Solder	2 mm	0.079 in	Flash	10

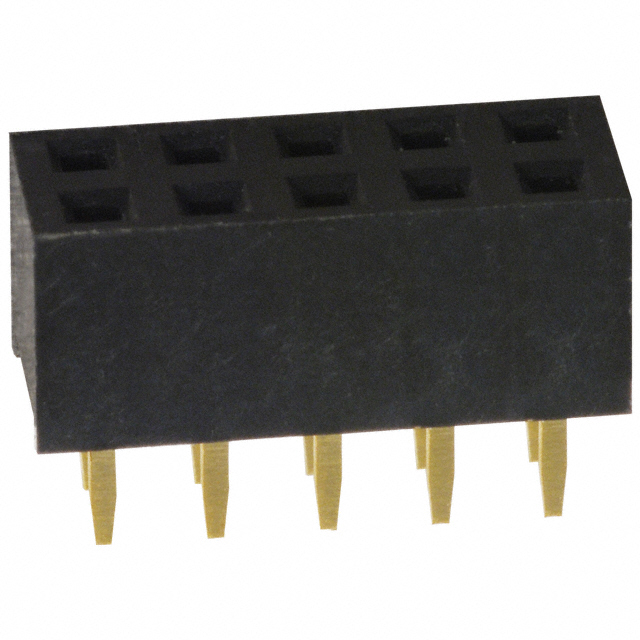

Sullins Connector Solutions PPPN052AFCN	Polyester	Phosphor Bronze	Flash	Square	UL94 V-0	Through Hole	Female Socket	Push-Pull		Gold	2	All	Gold	Header	0.079 "	2 mm			4.3 mm	Black	-40 C	105 ░C	Solder	2 mm	0.079 in	Flash	10	2.4 mm	0.094 in	0.169 "
Sullins Connector Solutions PPPN052GHNP	Polyester	Phosphor Bronze	Flash	Square	UL94 V-0	Surface Mount	Female Socket	Push-Pull	Board Guide	Gold	2	All	Gold	Header Bottom Entry	0.079 "	2 mm				Black	-40 C	105 ░C	Solder	2 mm	0.079 in	Flash	10
Sullins Connector Solutions PPPN052FJFN	Polyester	Phosphor Bronze	Flash	Square	UL94 V-0	Right Angle Through Hole	Female Socket	Push-Pull		Gold	2	All	Gold	Header	0.079 "	2 mm			4.85 mm	Black	-40 C	105 ░C	Solder	2 mm	0.079 in	Flash	10	3 mm	0.118 in		0.191 in
