5200.0443 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

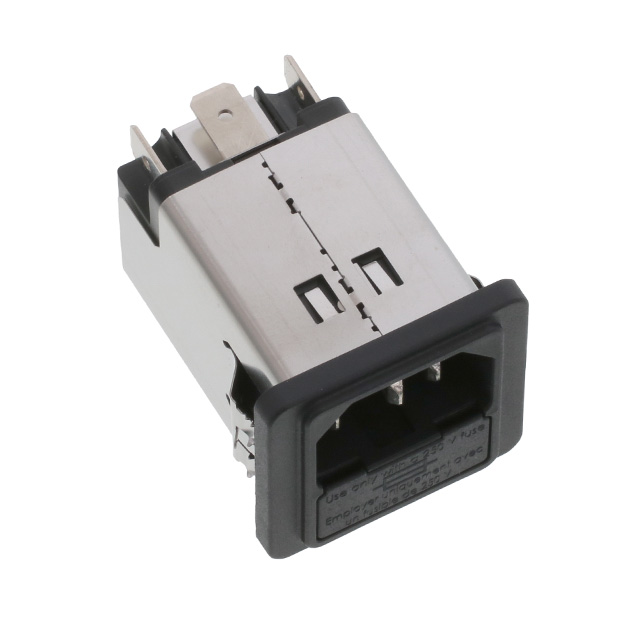

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Mounting Type | Approval Agency | Current Rating - Filter | Fuse Holder, Drawer | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Accomodates a Fuse | Termination | Termination | Termination | Ingress Protection | Material Flammability Rating | Panel Thickness | Panel Thickness [Max] | Panel Thickness [Min] | Connector Type | Connector Style | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Panel Mount Snap-In | cULus ENEC | 4 A | Fuse Holder | 32 mm | 29 mm | 6.3 mm | Quick Connect | 0.25 " | IP40 | UL94 V-0 | 0.79 mm 3 mm | 0.118 in | 0.031 " | Receptacle Male Blades - Module | IEC 320-C14 | 250 VAC | 4 A | Filtered (EMI RFI) - Commercial Medical |
