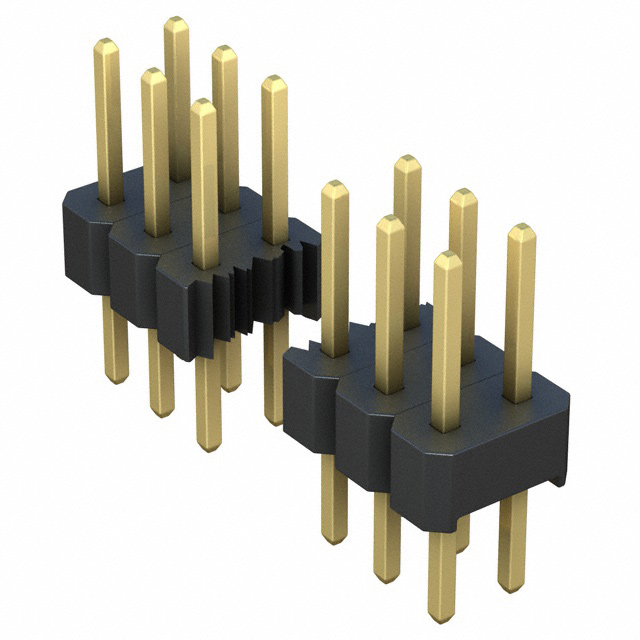

PRPN402 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 80POS 2MM
| Part | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Number of Positions | Termination | Material Flammability Rating | Style | Shrouding | Mounting Type | Insulation Height [z] | Insulation Height [z] | Contact Length - Mating | Contact Length - Mating | Contact Shape | Fastening Type | Contact Finish - Post | Connector Type | Number of Rows [custom] | Contact Finish Thickness - Mating | Contact Material | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Type | Contact Length - Post [custom] | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Overall Contact Length | Overall Contact Length | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | 0.079 " | 2 mm | Gold | 80 | Solder | UL94 V-0 | Board to Board Cable | Unshrouded | Through Hole | 2 mm | 0.079 in | 4 mm | 0.157 in | Square | Push-Pull | Gold | Header | 2 | Flash | Brass | All | 2 mm | 0.079 in | Black | Male Pin | 0.11 in | 2.79 mm | -40 C | 105 ░C | 8.8 mm | 0.346 in | Polyester |
