MICRORB Series

Catalog

SENSOR PHOTODIODE 905NM 4SMD

Part	Active Area	Color - Enhanced	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Type	Package / Case	Current - Dark (Typ)	Response Time	Responsivity @ nm	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	Utilized IC / Part	Supplied Contents	Sensor Type	Interface

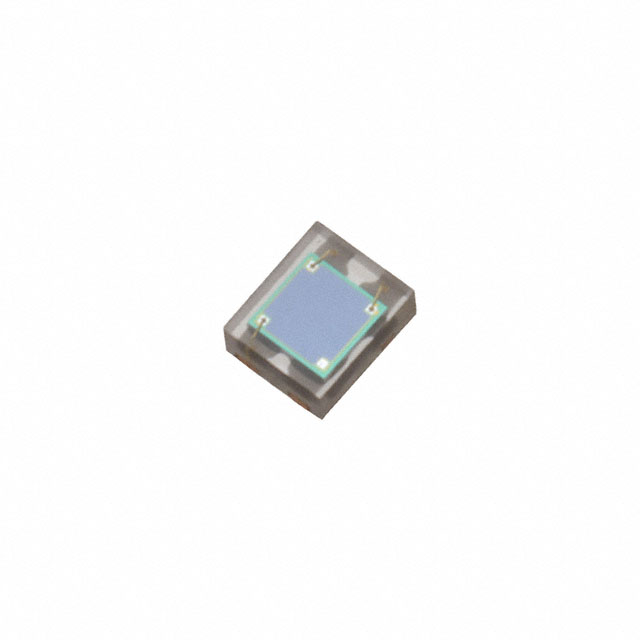

ON Semiconductor MICRORB-10020-MLP-TR1	1 mm˛	Infrared (NIR) Red	85 °C	-40 °C	905 nm	Surface Mount	23 V	PIN	4-SMD No Lead	540 nA	1 ns	270 kA/W	300 nm	1050 nm
ON Semiconductor MICRORB-10035-MLP-TR	1 mm˛	Infrared (NIR) Red	85 °C	-40 °C	905 nm	Surface Mount	25 V	PIN	4-SMD No Lead	1.5 µA	900 ps		300 nm	1050 nm
ON Semiconductor MICRORB-10035-MLP-TR1	1 mm˛	Infrared (NIR) Red	85 °C	-40 °C	905 nm	Surface Mount	25 V	PIN	4-SMD No Lead	1.5 µA	900 ps		300 nm	1050 nm
ON Semiconductor MICRORB-SMA-10020-GEVB															MicroRB-10020	Board(s)	Light Silicon Photomultiplier (SiPM)	Analog

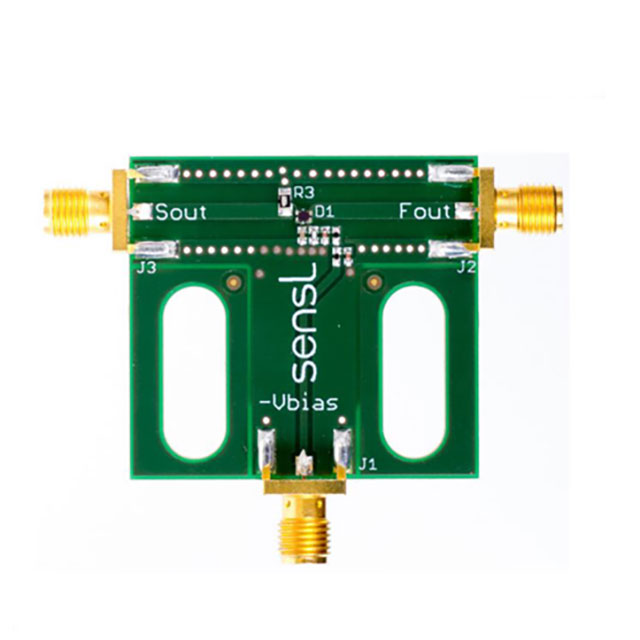

ON Semiconductor MICRORB-SMA-10035-GEVB															MicroRB-10035	Board(s)	Light Silicon Photomultiplier (SiPM)	Analog
