624-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

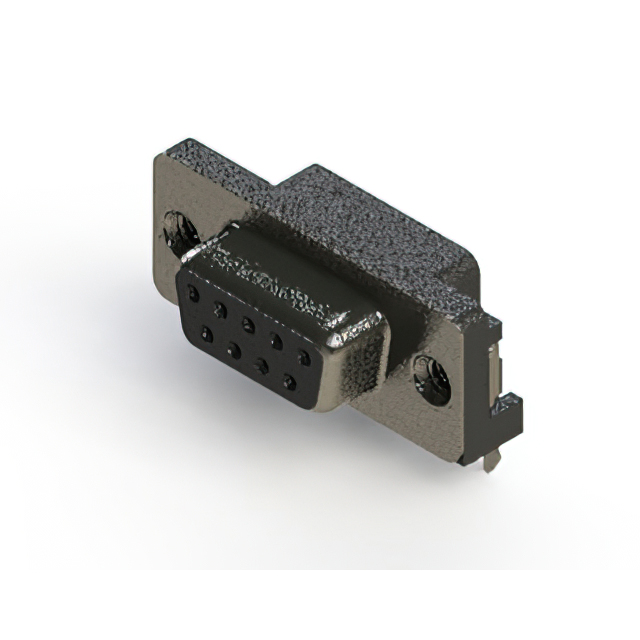

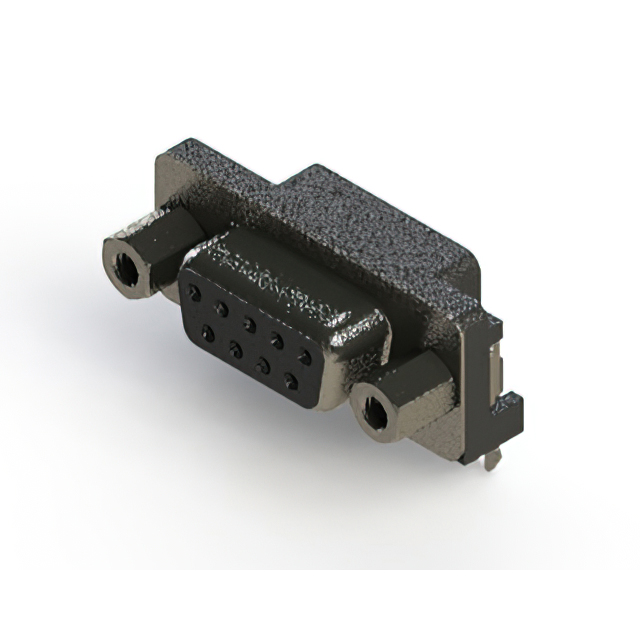

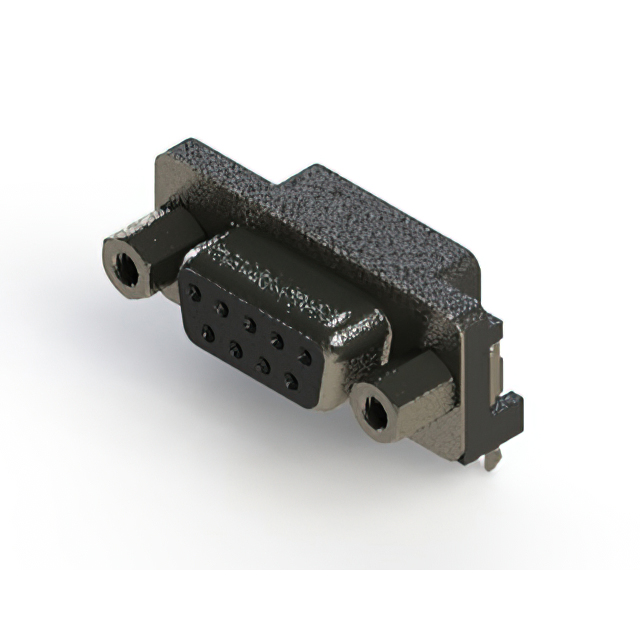

624 SERIES RIGHT ANGLE D-SUB PLU
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Backset Spacing | Backset Spacing | Shell Material, Finish | Contact Finish Thickness | Flange Feature | Material Flammability Rating | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Features | Termination | Contact Finish | Connector Type | Number of Positions | Current Rating (Amps) | Connector Style | Mounting Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Flash | Housing/Shell (M3) | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Housing/Shell | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 4-40 | 0.38 µm | 15 µin | |
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Housing/Shell | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 4-40 | 0.38 µm | 15 µin | |
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Flash | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Housing/Shell (M3) | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Flash | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | |||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 125 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Housing/Shell (Unthreaded) | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | -55 C | 85 °C | Copper Alloy | 0.197 in | 5 mm | Nickel Plated Steel | Flash | Housing/Shell | UL94 V-0 | 2 | 1 | DE E | Signal | Board Lock Shielded | Solder | Gold | Receptacle Female Sockets | 9 | 3 A | D-Sub | Board Edge Right Angle Through Hole | 4-40 |
