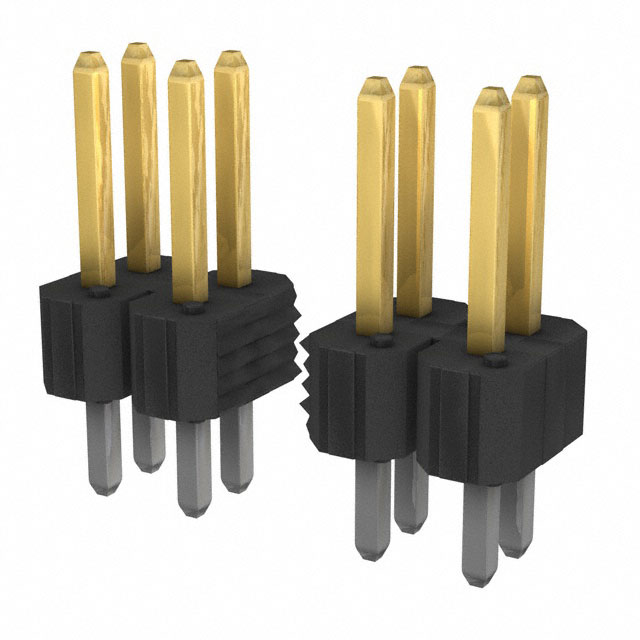

68449 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Shrouding	Material Flammability Rating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Fastening Type	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions
Amphenol ICC (FCI) 68449-158HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0	10	0.45 "	11.43 mm	0.23 in	5.84 mm	0.12 in	3.05 mm	Male Pin	Solder	9	-65 ░C	130 °C	3 A	Square	Push-Pull	Black
Amphenol ICC (FCI) 68449-026	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold	Header	Unshrouded	UL94 V-0	20	0.533 in	13.55 mm	0.318 "				Male Pin	Solder	19				Square	Push-Pull	Black	2.92 mm	0.115 in	8.08 mm
Amphenol ICC (FCI) 68449-014HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0	20	0.533 in	13.55 mm	0.318 "				Male Pin	Solder	19	-65 ░C	130 °C	3 A	Square	Push-Pull	Black	2.92 mm	0.115 in	8.08 mm

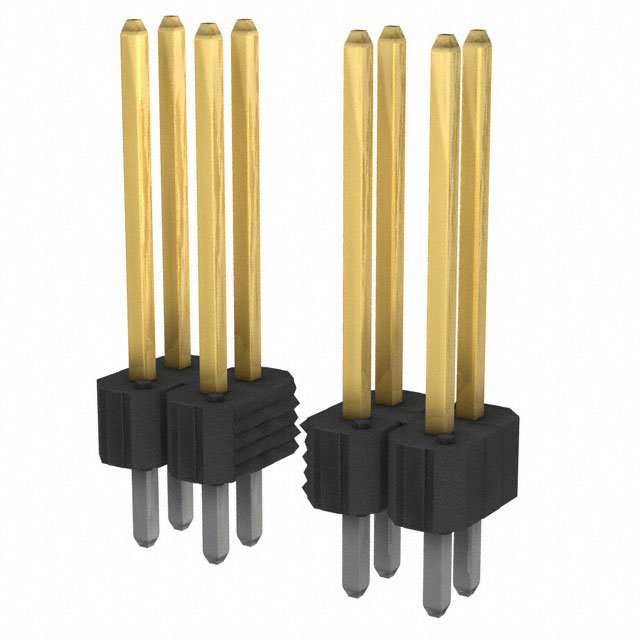

Amphenol ICC (FCI) 68449-269HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0	14	0.676 in	17.17 mm		11.43 mm	0.125 in	3.18 mm	Male Pin	Solder		-65 ░C	130 °C	3 A	Square	Push-Pull	Black				0.45 in
Amphenol ICC (FCI) 68449-242HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	30 Áin	0.76 Ám	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0		0.45 "	11.43 mm	0.23 in	5.84 mm	0.12 in	3.05 mm	Male Pin	Solder	15	-65 ░C	130 °C	3 A	Square	Push-Pull	Black					16
Amphenol ICC (FCI) 68449-220HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0	20	0.45 "	11.43 mm	0.23 in	5.84 mm	0.12 in	3.05 mm	Male Pin	Solder	19	-65 ░C	130 °C	3 A	Square	Push-Pull	Black
Amphenol ICC (FCI) 68449-275HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	30 Áin	0.76 Ám	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0				0.23 in	5.84 mm	0.095 in	2.41 mm	Male Pin	Solder	15	-65 ░C	130 °C	3 A	Square	Push-Pull	Black					16
Amphenol ICC (FCI) 68449-065HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0	26	0.533 in	13.55 mm	0.318 "				Male Pin	Solder	25	-65 ░C	130 °C	3 A	Square	Push-Pull	Black	2.92 mm	0.115 in	8.08 mm
Amphenol ICC (FCI) 68449-079	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	15 µin	0.38 µm	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0		0.45 "	11.43 mm	0.23 in	5.84 mm	0.12 in	3.05 mm	Male Pin	Solder	15	-65 ░C	130 °C	3 A	Square	Push-Pull	Black					16

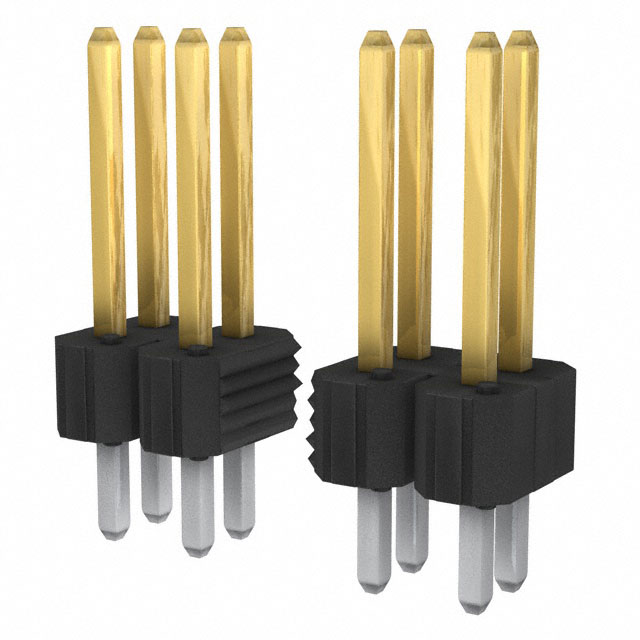

Amphenol ICC (FCI) 68449-181HLF	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	2	30 Áin	0.76 Ám	0.1 in	2.54 mm	Gold or Gold GXT™	Header	Unshrouded	UL94 V-0	20	0.538 "	13.67 mm	0.318 "		0.12 in	3.05 mm	Male Pin	Solder	19	-65 ░C	130 °C	3 A	Square	Push-Pull	Black			8.08 mm
