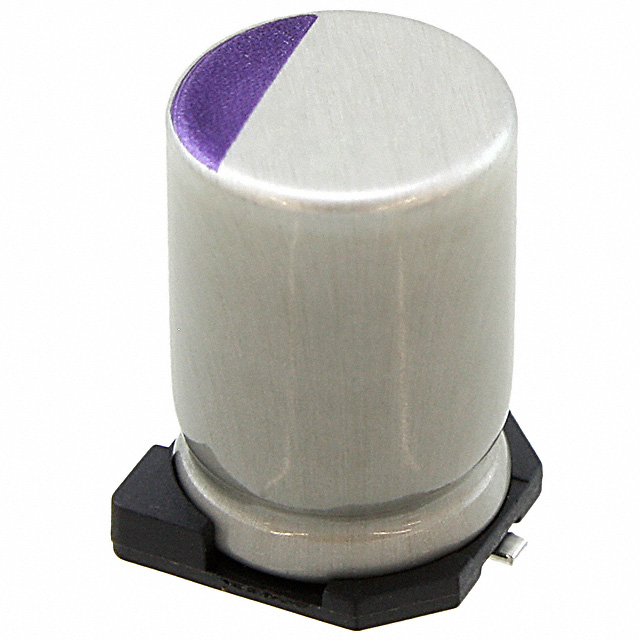

os-con-svpc Series

Catalog

CAP ALUMINUM POLYMER 100UF 6.3VDC 20%( 5 X 5.9MM) SMD 0.03 OHM 1.97A 2000H 105°C T/R

Part	Package / Case	Ripple Current @ Low Frequency	Lifetime @ Temp.	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ripple Current @ High Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max)	Height - Seated (Max) [Max]	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]
Panasonic Electronic Components 6SVPC100M	Radial Can - SMD	107.5 mA	2000 Hrs	Surface Mount	Polymer	-55 C	105 ░C	100 µF	0.197 in	5 mm	General Purpose	2.15 A	0.209 in 5.3 mm	0.209 in 5.3 mm	20 %	30 mOhms	6 mm	0.236 "	6.3 VDC
Panasonic Electronic Components 10SVPC68MV	Radial Can - SMD	127 mA	2000 Hrs	Surface Mount	Polymer	-55 C	105 ░C	68 µF	0.197 in	5 mm	General Purpose	2.54 A	0.209 in 5.3 mm	0.209 in 5.3 mm	20 %	23 mOhm	6 mm	0.236 "	10 V
Panasonic Electronic Components 16SVPC68M	Radial Can - SMD	110 mA	2000 Hrs	Surface Mount	Polymer	-55 C	105 ░C	68 µF	0.248 "	6.3 mm	General Purpose	2.2 A	6.6 mm	6.6 mm	20 %	30 mOhms	6 mm	0.236 "	16 V	0.26 in	0.26 in
Panasonic Electronic Components 10SVPC68M	Radial Can - SMD	98.5 mA	2000 Hrs	Surface Mount	Polymer	-55 C	105 ░C	68 µF	0.197 in	5 mm	General Purpose	1.97 A	0.209 in 5.3 mm	0.209 in 5.3 mm	20 %	30 mOhms	6 mm	0.236 "	10 V
Panasonic Electronic Components 16SVPC39M	Radial Can - SMD	91 mA	2000 Hrs	Surface Mount	Polymer	-55 C	105 ░C	39 µF	0.197 in	5 mm	General Purpose	1.82 A	0.209 in 5.3 mm	0.209 in 5.3 mm	20 %	35 mOhms	6 mm	0.236 "	16 V
