KN5C Series

Catalog

BALL KNOB 1.250 IN DIAMETER WITH

...

Part	Height [z]	Height [z]	Color	Style	Type	Material	Shaft Size	Diameter [diameter]	Diameter [diameter]	Indicator	Height	Height	Height

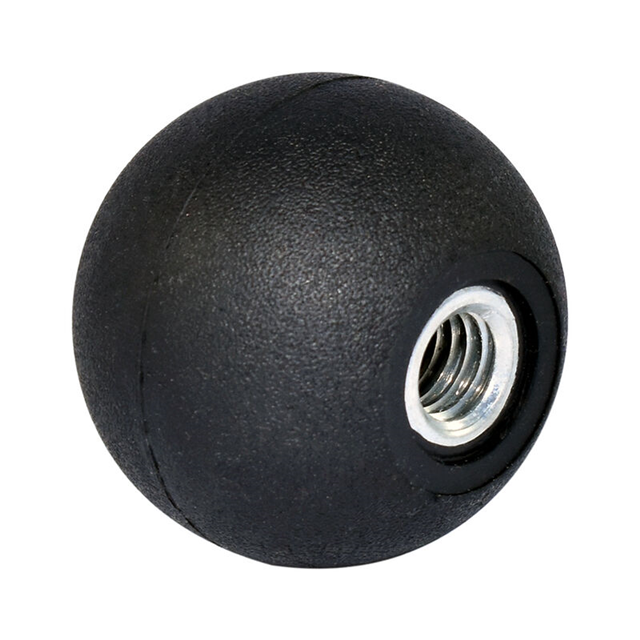

Essentra Components KN5C----B2S--22	1.15 in	29.21 mm	Black	Ball	Smooth	Polypropylene	5/16"-18	1.25 in	31.75 mm	No Indicator
Essentra Components KN5C----B5S--22			Black	Ball	Smooth	Polypropylene	5/16"-18	1.6 in	40.64 mm	No Indicator	38.61 mm	1.52 in
Essentra Components KN5C1250R5--S21	1.15 in	29.21 mm	Black	Clamping	5 Arm	Polypropylene	5/16"-18	2 in	50.8 mm	No Indicator
Essentra Components KN5C----F6-B-22	1.23 in	31.24 mm	Black	Clamping	Fluted	Polypropylene	5/16"-18	2.38 in	60.45 mm	No Indicator
Essentra Components KN5C1000R3--S21	1.08 in	27.43 mm	Black	Clamping	5 Arm	Polypropylene	5/16"-18	1.58 in	40.13 mm	No Indicator
Essentra Components KN5C----TR6--22			Black		2 Arm	Polypropylene	5/16"-18	2.27 in	57.66 mm	No Indicator	1.39 in		35.31 mm

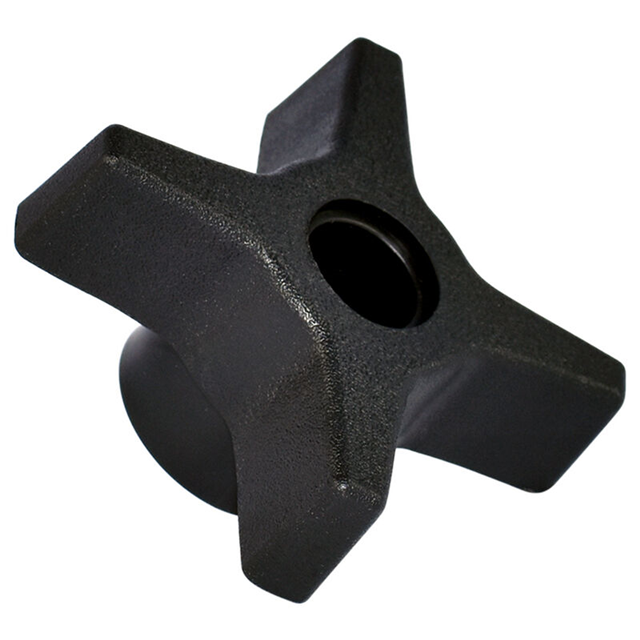

Essentra Components KN5C----4P7--21	1.11 in	28.19 mm	Black	Clamping	4 Arm	Nylon	5/16"-18	2.46 in	62.48 mm	No Indicator
Essentra Components KN5C----T1---22			Black		2 Arm	Polypropylene	5/16"-18	1.16 in	29.46 mm	No Indicator	23.88 mm	0.94 in
Essentra Components KN5C----B2---22	1.15 in	29.21 mm	Black	Ball	Smooth	Polypropylene	5/16"-18	1.25 in	31.75 mm	No Indicator
Essentra Components KN5C0625K6C--21			Black	Cylindrical	Knurled Straight	Polypropylene	5/16"-18	1 in	25.4 mm	No Indicator	20.57 mm	0.81 in
