392-084 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 84POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Gender	Pitch	Pitch	Number of Rows [custom]	Mounting Type	Contact Finish	Read Out	Color	Termination	Contact Type	Contact Material	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 392-084-559-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Right Angle Through Hole	Gold	Dual	Black	Solder Wire Wrap	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 392-084-523-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Through Hole	Gold	Dual	Black	Solder	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 392-084-559-212	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Side Opening Unthreaded	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Right Angle Through Hole	Gold	Dual	Black	Solder Wire Wrap	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge	0.128 "	3.25 mm
EDAC Inc. 392-084-559-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Right Angle Through Hole	Gold	Dual	Black	Solder Wire Wrap	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 392-084-542-202	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Through Hole	Gold	Dual	Black	Wire Wrap	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge	0.128 "	3.25 mm
EDAC Inc. 392-084-542-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Through Hole	Gold	Dual	Black	Wire Wrap	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 392-084-544-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Through Hole	Gold	Dual	Black	Wire Wrap	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 392-084-523-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Through Hole	Gold	Dual	Black	Solder	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 392-084-560-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Board Edge Straddle Mount	Gold	Dual	Black	Solder	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge	0.156 "	3.96 mm	Card Extender

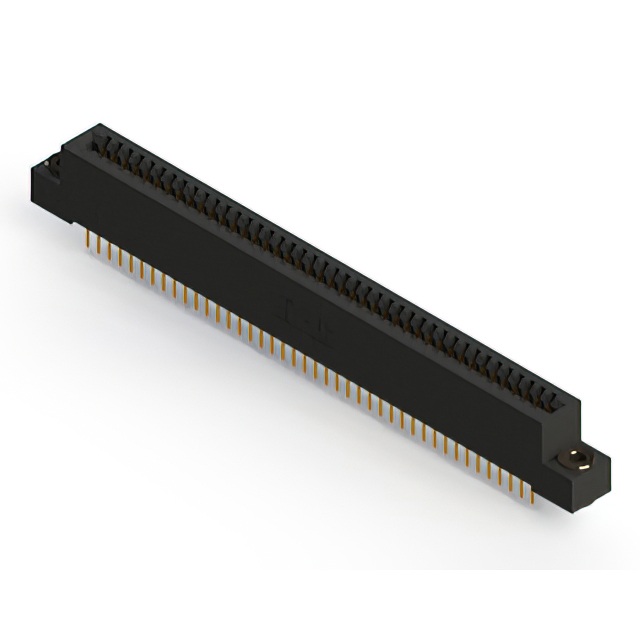

EDAC Inc. 392-084-524-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount	84	0.25 Ám	10 Áin	Female	0.1 "	2.54 mm	2	Through Hole	Gold	Dual	Black	Solder	Cantilever	Copper Alloy	42	-40 C	105 ░C	Non Specified - Dual Edge	0.116 "	2.95 mm
