AE10-EW Series

Manufacturer: CUI Inc.

Catalog

DC/DC DIN RAIL SUPPLY 9V 10W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	DC Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation	Current - Output (Max) [Max]	Approval Agency	DC Voltage - Input (Min) [Min]	Input Type	Number of Outputs	Voltage - Output 1	Type	Package / Case	Voltage - Input (Max) [Max]	Applications	Features	Standard Number	Voltage - Input (Min) [Min]	Mounting Type

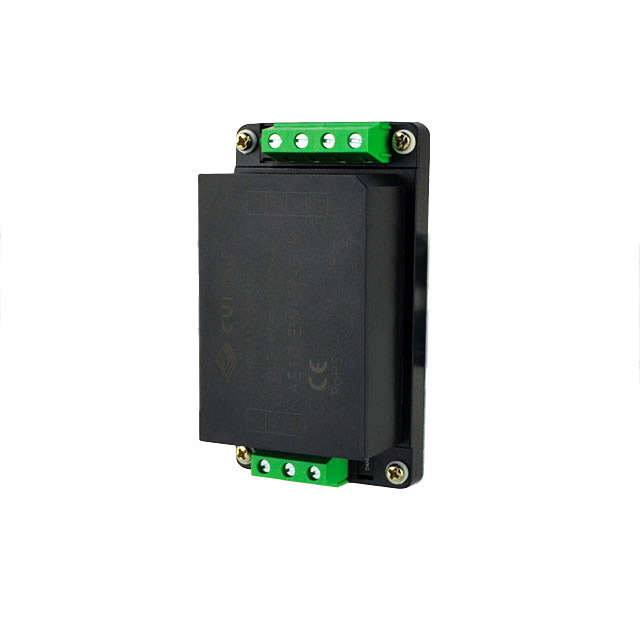

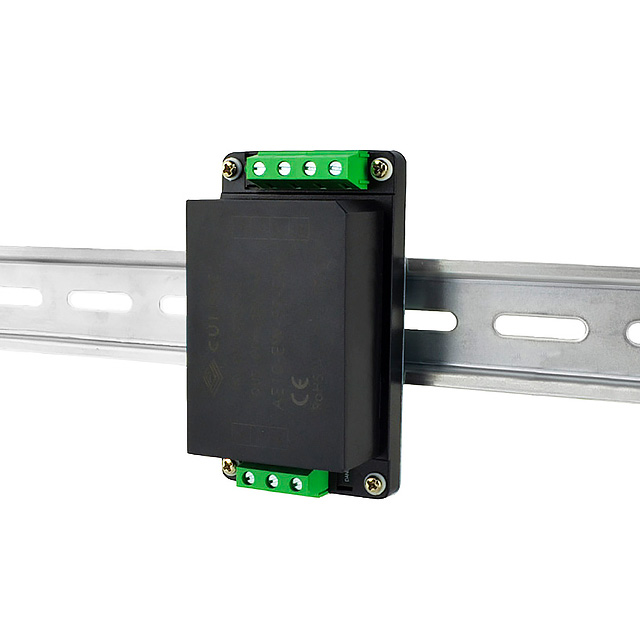

CUI Inc. AE10-EW-S9-DIN	36.6 mm	96.1 mm	3.78 in	2.13 in	54 mm	1.44 in	10 W	1000 V	76 %	4000 V	1.11 A	CE	100 V	DC	1	9 V

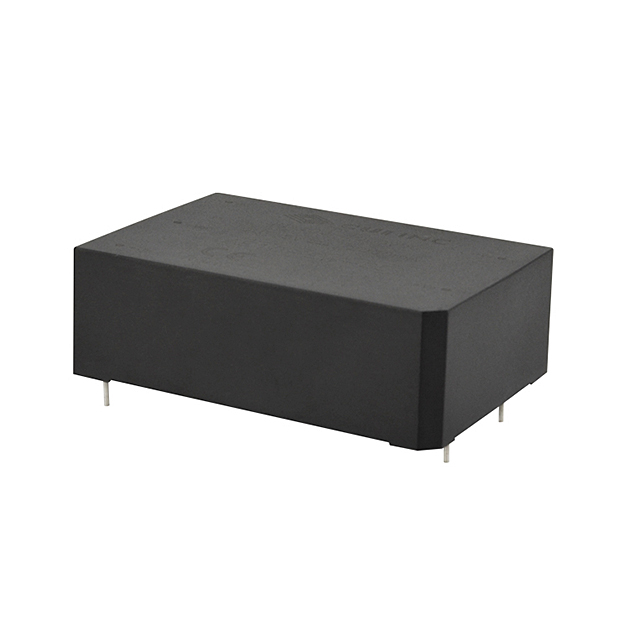

CUI Inc. AE10-EW-S9	23.5 mm	70 mm	2.76 "	1.89 in	48 mm	0.93 "	10 W		76 %	4000 V	1.11 A	EN			1	9 V	Isolated Module	5-DIP Module	1000 V	ITE (Commercial)	OCP OVP SCP	55024 55032	100 VDC	Through Hole

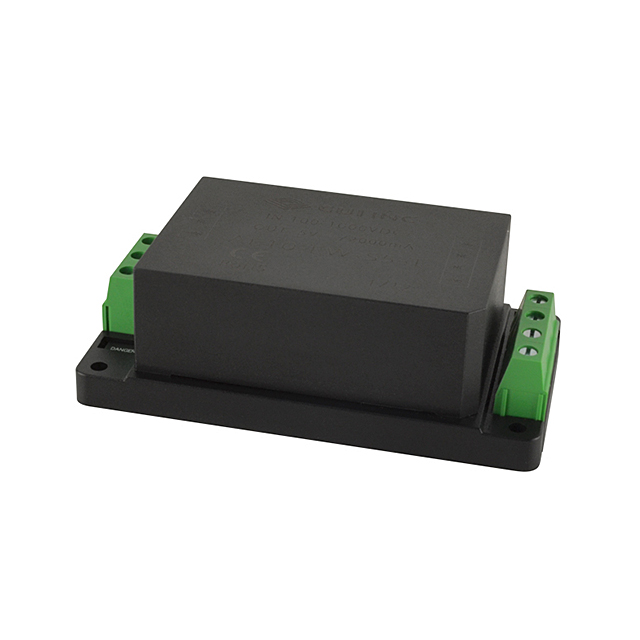

CUI Inc. AE10-EW-S5-T	32 mm	96.1 mm	3.78 in	2.13 in	54 mm	1.26 "	10 W		72 %	4000 V	2 A	CE			1	5 V	Enclosed		1000 V				100 VDC	Chassis Mount
CUI Inc. AE10-EW-S5	23.5 mm	70 mm	2.76 "	1.89 in	48 mm	0.93 "	10 W		72 %	4000 V	2 A	EN			1	5 V	Isolated Module	5-DIP Module	1000 V	ITE (Commercial)	OCP OVP SCP	55024 55032	100 VDC	Through Hole
