ECG.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 7POS GOLD SOLDER

Part	Shell Material	Mounting Type	Primary Material	Shell Finish	Fastening Type	Shielding	Shell Size - Insert	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Material Flammability Rating	Mounting Feature	Number of Positions	Color	Contact Finish - Mating	Contact Material	Insert Material	Ingress Protection	Orientation

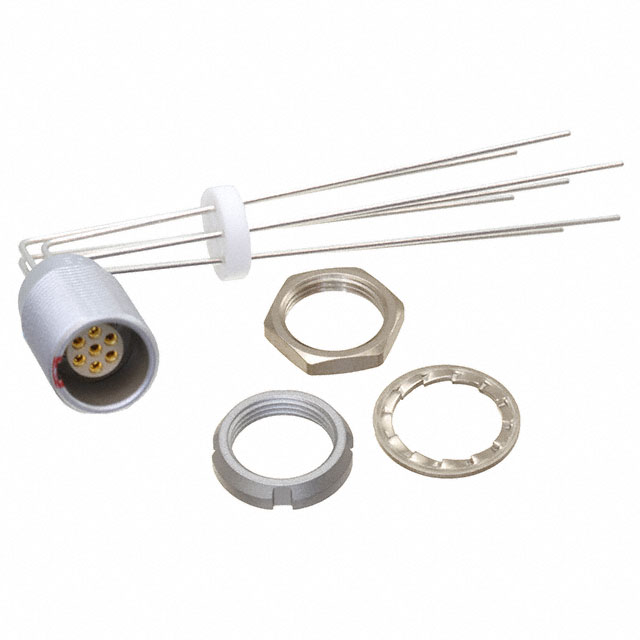

LEMO ECG.0B.307.CLV	Brass	Panel Mount Right Angle Through Hole	Metal	Chrome	Push-Pull	Shielded	307	Solder	59 Áin	1.5 Ám	-55 °C	250 °C	2.5 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut	7	Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G

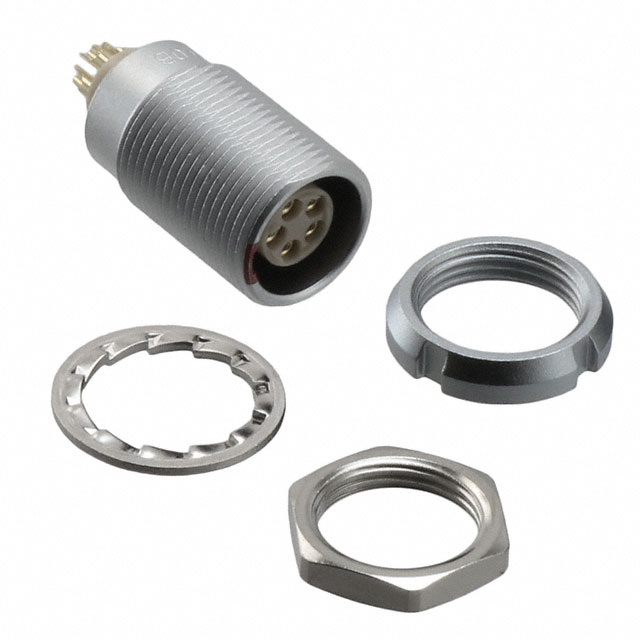

LEMO ECG.0B.305.CLL	Brass		Metal	Chrome	Push-Pull	Shielded	305		59 Áin	1.5 Ám	-55 °C	250 °C	6.5 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut		Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G
LEMO ECG.0B.302.KLL	Brass		Metal		Push-Pull	Shielded	302		59 Áin	1.5 Ám	-55 °C	250 °C	10 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut	2	Black	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G

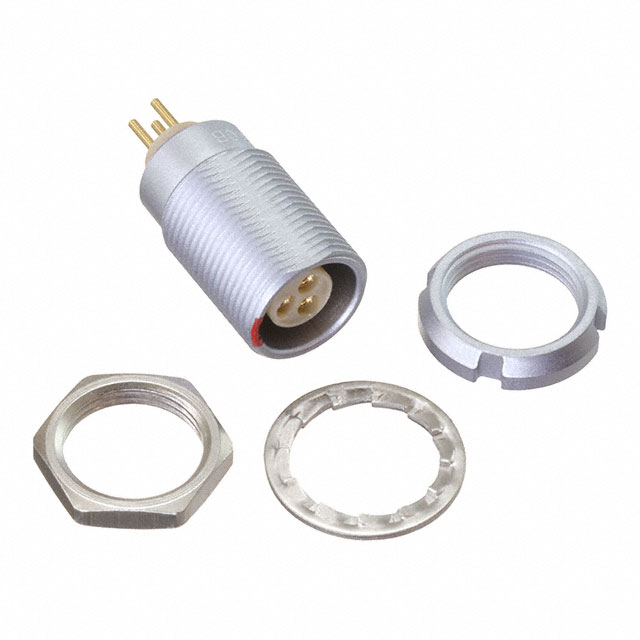

LEMO ECG.0B.303.CLN	Brass	Panel Mount Through Hole	Metal	Chrome	Push-Pull	Shielded	303	Solder	59 Áin	1.5 Ám	-55 °C	250 °C	8 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut		Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G

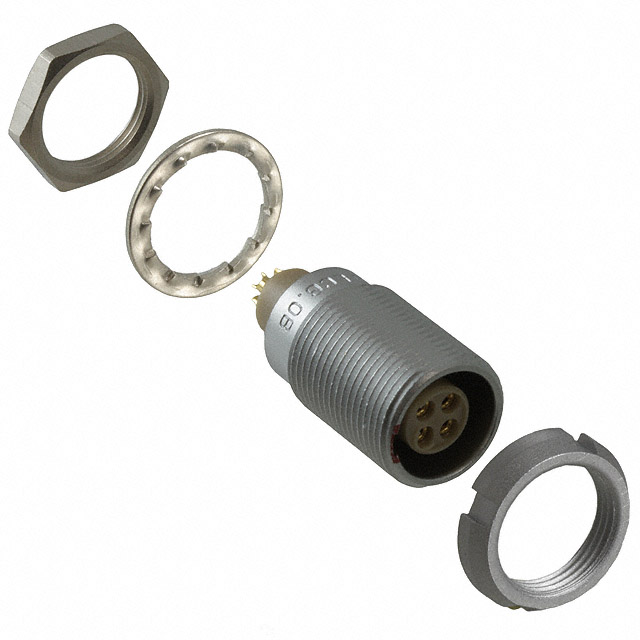

LEMO ECG.0B.304.CLL	Brass		Metal	Chrome	Push-Pull	Shielded	304		59 Áin	1.5 Ám	-55 °C	250 °C	7 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut	4	Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G
LEMO ECG.0B.306.CLV	Brass	Panel Mount Right Angle Through Hole	Metal	Chrome	Push-Pull	Shielded	306	Solder	59 Áin	1.5 Ám	-55 °C	250 °C	2.5 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut	6	Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G

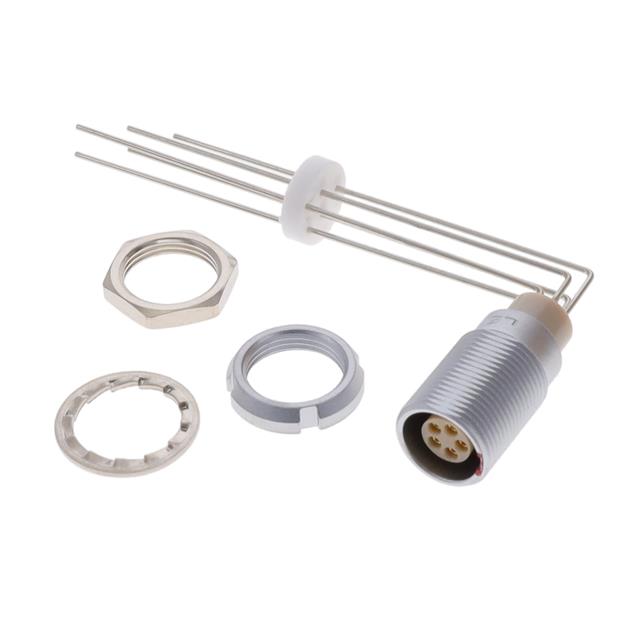

LEMO ECG.0B.305.CLV	Brass	Panel Mount Right Angle Through Hole	Metal	Chrome	Push-Pull	Shielded	305	Solder	59 Áin	1.5 Ám	-55 °C	250 °C	6 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut		Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G

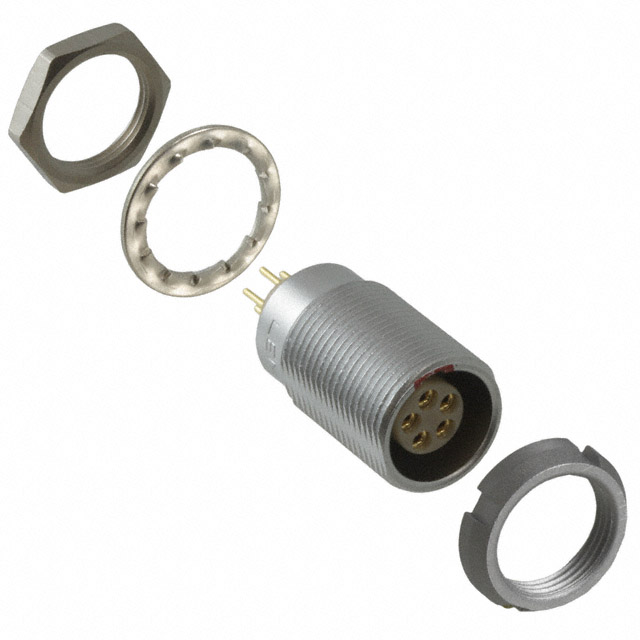

LEMO ECG.0B.305.CLN	Brass	Panel Mount Through Hole	Metal	Chrome	Push-Pull	Shielded	305	Solder	59 Áin	1.5 Ám	-55 °C	250 °C	6.5 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut		Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G

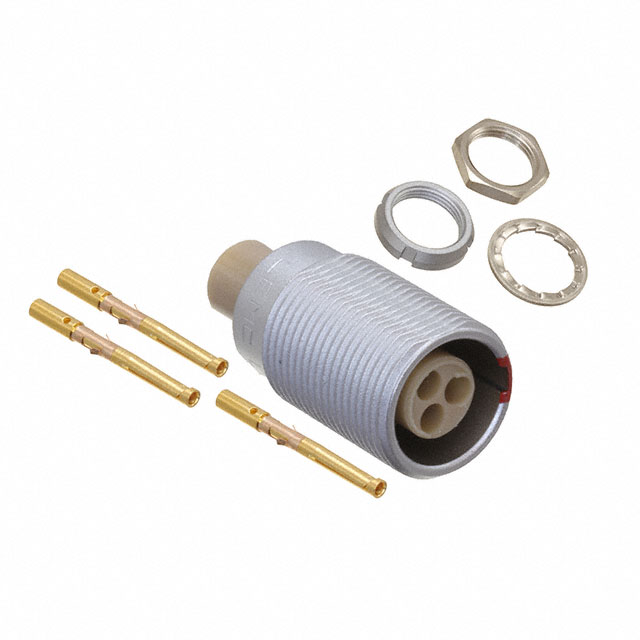

LEMO ECG.0B.303.CYM	Brass		Metal	Chrome	Push-Pull	Shielded	303	Crimp	59 Áin	1.5 Ám	-55 °C	250 °C	8 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut		Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G
LEMO ECG.0B.305.CYM	Brass		Metal	Chrome	Push-Pull	Shielded	305	Crimp	59 Áin	1.5 Ám	-55 °C	250 °C	6.5 A	Receptacle Female Sockets	UL94 V-0	Front and Rear Side Nut		Silver	Gold	Bronze	Polyetheretherketone (PEEK)	IP50	G
