7198-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

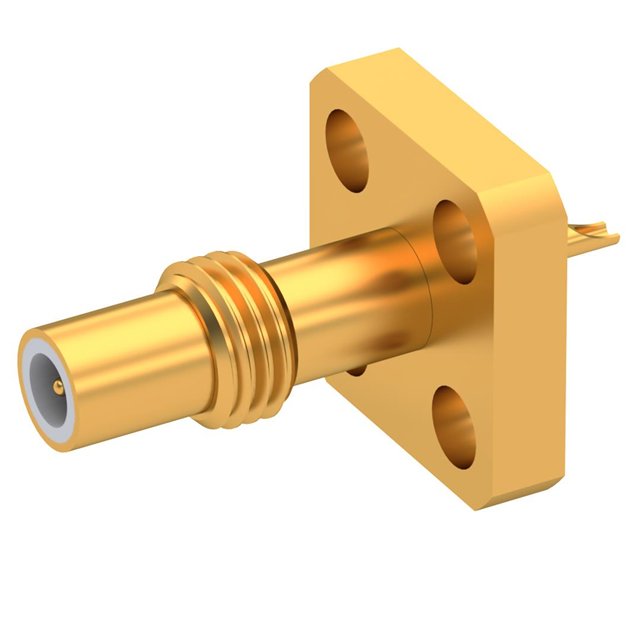

SSMC / STRAIGHT RECEPTACLE MALE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Dielectric Material | Voltage Rating | Center Contact Plating | Body Finish | Mounting Feature | Impedance | Fastening Type | Center Contact Material | Shield Termination | Housing Color | Contact Termination | Connector Type | Connector Style | Mounting Type | Frequency - Max [Max] | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Stainless Steel | 500 | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Gold | Flange | 50 Ohms | Threaded | Beryllium Copper | Solder | Gold | Solder Cup | Receptacle Male Pin | SSMC | Panel Mount | 12.4 GHz | 1 |
