NB7L1008M Series

Clock / Data Fanout Buffer, 1:8 Differential, with CML Outputs

Catalog

Clock / Data Fanout Buffer, 1:8 Differential, with CML Outputs

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Frequency - Max [Max]	Ratio - Input:Output	Type	Supplier Device Package	Package / Case	Input	Mounting Type	Output	Operating Temperature [Max]	Operating Temperature [Min]	Function	Supplied Contents	Utilized IC / Part
ON Semiconductor NB7L1008MMNR4G	3.6 V	2.375 V	1	8 GHz	1:8	Fanout Buffer (Distribution)	32-QFN (5x5)	32-VFQFN Exposed Pad	CML LVCMOS LVDS LVPECL LVTTL	Surface Mount	CML	85 °C	-40 °C
ON Semiconductor NB7L1008MMNG	3.6 V	2.375 V	1	8 GHz	1:8	Fanout Buffer (Distribution)	32-QFN (5x5)	32-VFQFN Exposed Pad	CML LVCMOS LVDS LVPECL LVTTL	Surface Mount	CML	85 °C	-40 °C

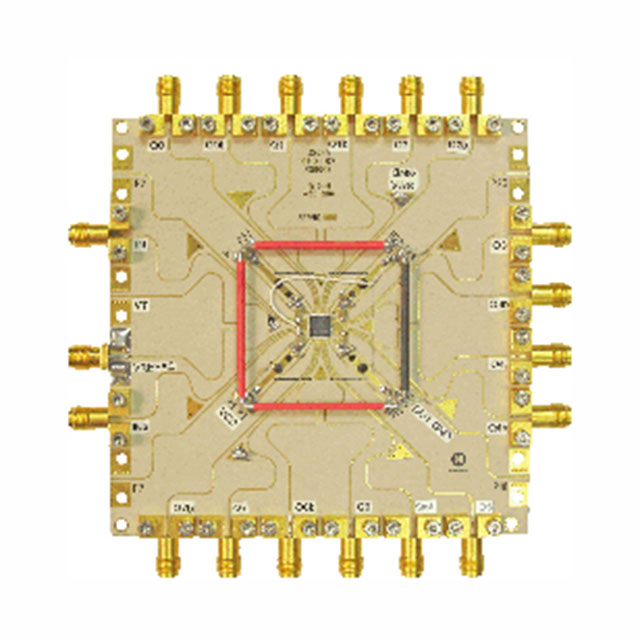

ON Semiconductor NB7L1008MNGEVB						Timing								Clock Buffer	Board(s)	NB7L1008

Catalog

Clock / Data Fanout Buffer, 1:8 Differential, with CML Outputs

Key Features

• Input Data Rate > 12 Gb/s Typical

• Data Dependent Jitter < 20 ps

• Maximum Input Clock Frequency > 8 GHz Typical

• Random Clock Jitter < 0.8 ps RMS

• Low Skew 1:8 CML Outputs, < 25 ps max

• Multi-Level Inputs, accepts LVPECL, CML, LVDS

• Differential CML Outputs, 400 mV Peak-to-Peak, Typical

• Operating Range: VCC = 2.375 V to 3.6 V, GND = 0 V

• Internal Input Termination Resistors, 50-ohm

• VREFAC Reference Output

-40C to +85C Ambient Operating TemperaturerPas

Description

The NB7L1008M is a high performance differential 1:8 Clock/Data fanout buffer. The NB7L1008M produces eight identical output copies of Clock or Data operating up to 6 GHz or 10.7 Gb/s, respectively. As such, the NB7L1008M is ideal for SONET, GigE, Fiber Channel, Backplane and other Clock/Data distribution applications. The differential inputs incorporate internal 50-ohm termination resistors that are accessed through the VT pin. This feature allows the NB7L1008M to accept various logic standards, such as LVPECL, CML, LVDS, LVCMOS or LVTTL logic levels. The VREFAC reference output can be used to rebias capacitor-coupled differential or single-ended input signals. The 1:8 fanout design was optimized for low output skew applications. The NB7L1008M is a member of the GigaComm family of high performance clock products.
