3215 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERMINAL,DG R 12-10 6

Part	Features	Contact Finish	Mounting Type	Stud/Tab Size	Termination	Terminal Type	Contact Material	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Material - Insulation	Color	Insulation Diameter [Min]	Insulation Diameter [Max]	Stud/Tab Size	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Number of Wire Entries [custom]	Wire Gauge	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Terminal Style	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Tab Thickness	Tab Thickness

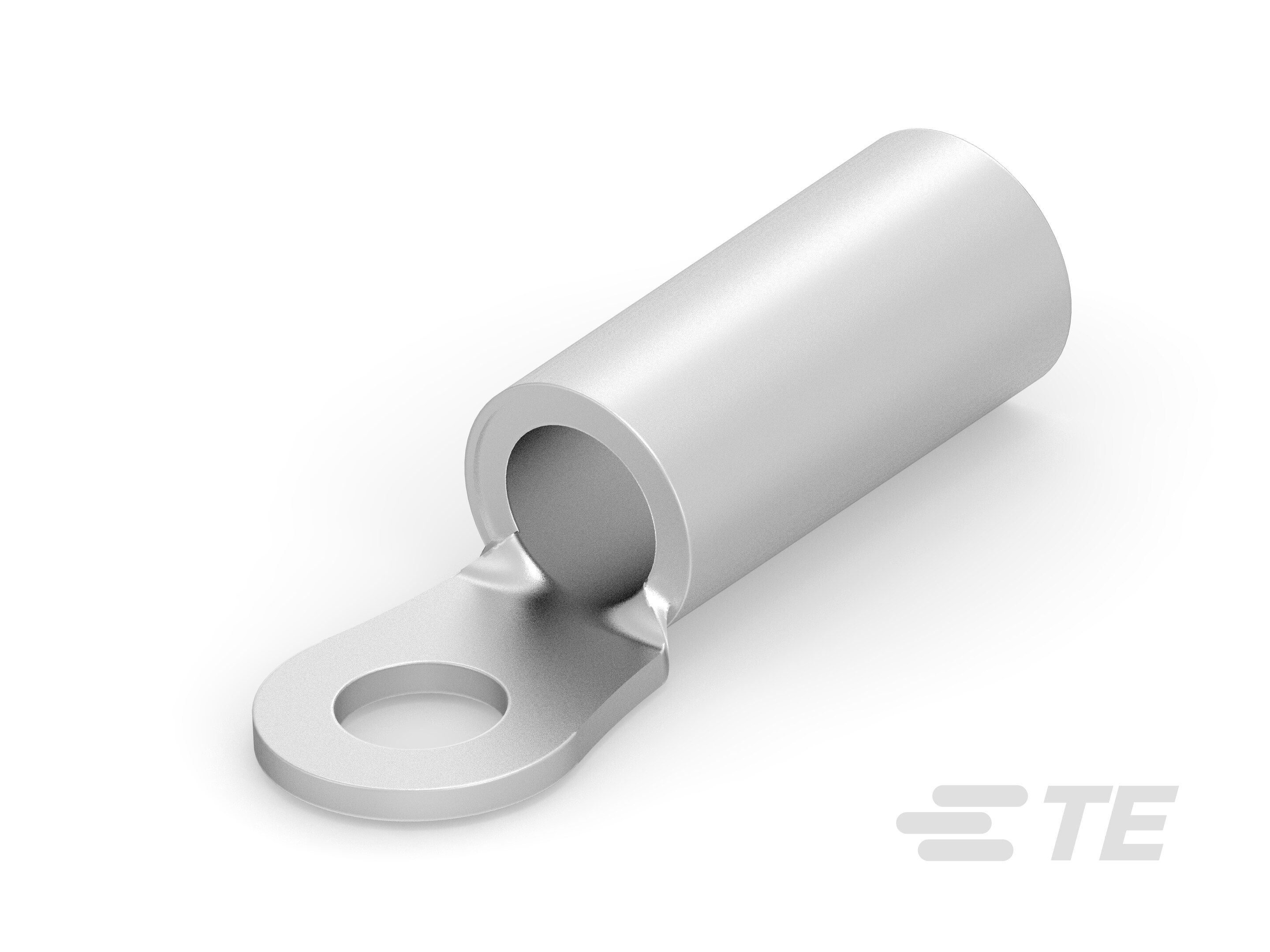

TE Connectivity Raychem Cable Protection 321501	Serrated Termination	Tin	Free Hanging (In-Line)	6 Stud	Crimp	Circular	Copper	Non-Insulated	12 AWG	10 AWG	0.04 in	1.02 mm	7.14 mm	0.281 in	0.15 "	3.81 mm	0.23 in	5.84 mm	0.896 in	22.76 mm

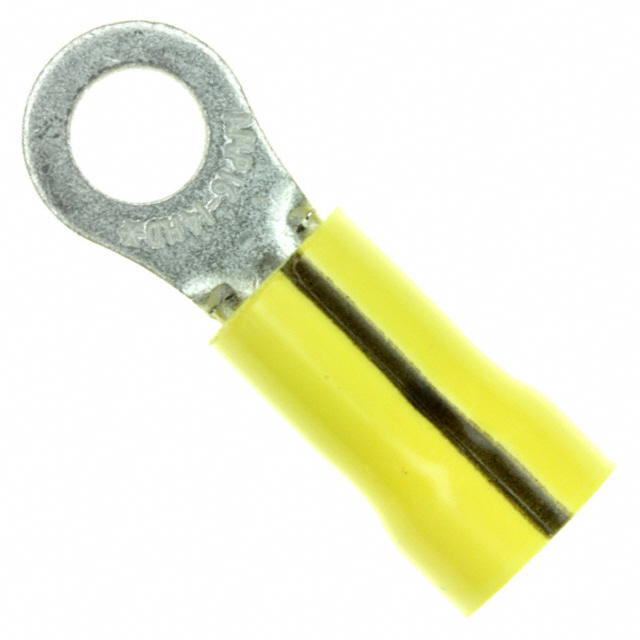

TE Connectivity Raychem Cable Protection 321518	Heavy Duty Serrated Termination	Tin	Free Hanging (In-Line)	10 Stud	Crimp	Circular	Copper	Insulated			0.048 in	1.22 mm			0.15 "		0.25 "		1.046 in	26.57 mm	0.343 in	8.71 mm	Poly-Vinyl Chloride (PVC)	Yellow Black Stripe	3.81 mm	6.35 mm

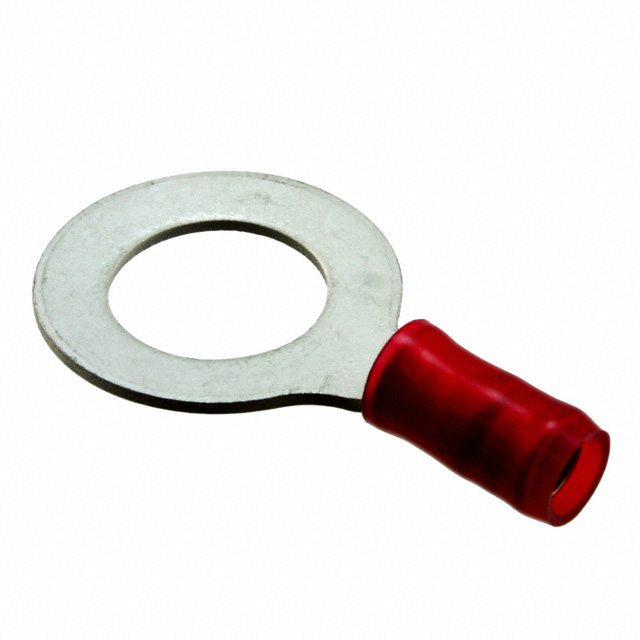

TE Connectivity Raychem Cable Protection 321522	Serrated Termination	Tin	Free Hanging (In-Line)		Crimp	Oval	Copper	Insulated	22 AWG	16 AWG	0.031 in	0.79 mm	16.66 mm	0.656 in					1.171 in	29.74 mm			Nylon Polyamide (PA)	Red			3/8 Stud	2.03 mm	3.18 mm	0.125 "	0.08 in

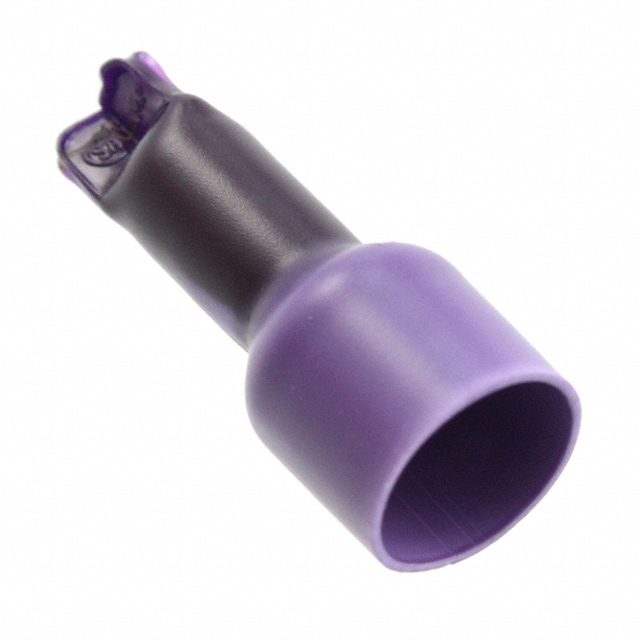

TE Connectivity Raychem Cable Protection 321519					Crimp	Butt Splice Closed End Single Opening		Fully Insulated	22 AWG	10 AWG														Purple								1

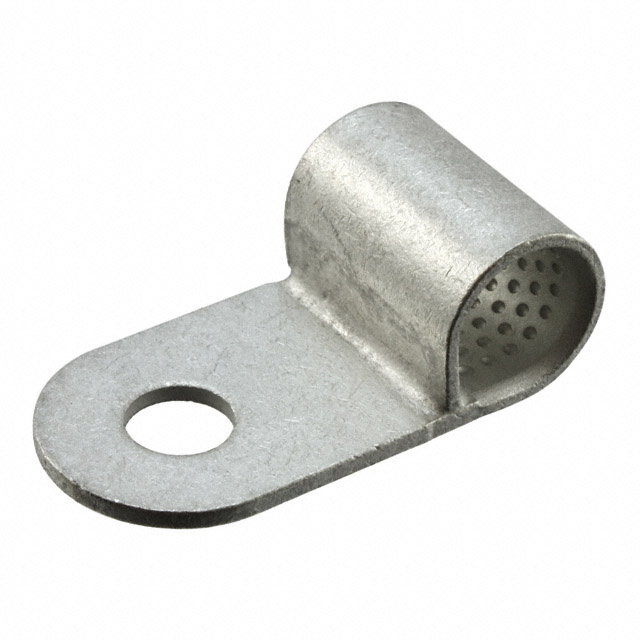

TE Connectivity Raychem Cable Protection 321580	Brazed Seam Serrated Termination	Tin	Free Hanging (In-Line) Right Angle	0.3125 Stud	Crimp Flag	Circular	Copper	Non-Insulated			0.07 in	1.78 mm	22.23 mm	0.875 in					1.733 in	44.02 mm													44 AWG
TE Connectivity Raychem Cable Protection 321558	Brazed Seam Serrated Termination	Tin	Free Hanging (In-Line)	10 Stud	Crimp	Rectangular Tongue	Copper	Non-Insulated	12 AWG	10 AWG			7.92 mm	0.312 in					0.843 "	21.4 mm														0.226 in	5.74 mm	Single Stud Hole	0.129 in	3.28 mm	0.039 in	0.99 mm
