JN513 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC RF TXRX+MCU 802.15.4 56VFQFN

Part	Memory Size [custom]	Memory Size [custom]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	GPIO	Current - Transmitting	Power - Output	Current - Receiving	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Protocol	Frequency	Type	RF Family/Standard	Mounting Type	Antenna Type
Freescale Semiconductor - NXP JN5139/Z01,515	96 kB	192 kB	56-VFQFN	2.2 V	3.6 V	-97 dBm	21	38 mA	3 dBm	37 mA	SPI UART	85 °C	-40 °C	1 Mbps	Zigbee®	2.4 GHz	TxRx + MCU	802.15.4
Freescale Semiconductor - NXP JN5139-001-M/04R1T	96 kB	192 kB	Module	2.2 V	3.6 V	-100 dBm		125 mA	19 dBm	45 mA	I2C SPI UART	85 °C	-40 °C		Zigbee®	2.4 GHz		802.15.4	Surface Mount	Antenna Not Included U.FL

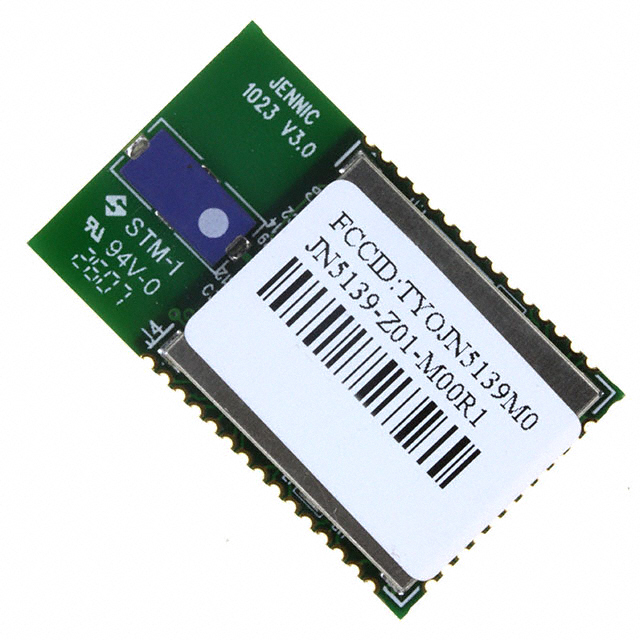

Freescale Semiconductor - NXP JN5139-Z01-M/00R1T	96 kB	192 kB	Module	2.2 V	3.6 V			37 mA	2.5 dBm	37 mA	I2C SPI UART	85 °C	-40 °C		Zigbee®	2.4 GHz		802.15.4	Surface Mount	Integrated Trace
Freescale Semiconductor - NXP JN5139-001-M/01R1V	96 kB	192 kB	Module	2.2 V	3.6 V			37 mA	2.5 dBm	37 mA	I2C SPI UART	85 °C	-40 °C		Zigbee®	2.4 GHz		802.15.4	Surface Mount	Antenna Not Included SMA

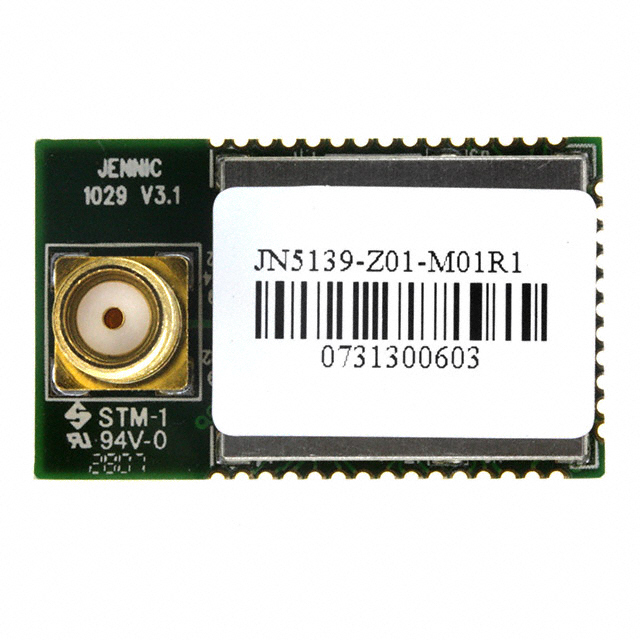

Freescale Semiconductor - NXP JN5139-Z01-M/01R1V	96 kB	192 kB	Module	2.2 V	3.6 V			37 mA	2.5 dBm	37 mA	I2C SPI UART	85 °C	-40 °C		Zigbee®	2.4 GHz		802.15.4	Surface Mount	Antenna Not Included SMA
Freescale Semiconductor - NXP JN5139/001,518	96 kB	192 kB	56-VFQFN	2.2 V	3.6 V	-97 dBm	21	38 mA	3 dBm	37 mA	SPI UART	85 °C	-40 °C	1 Mbps	Zigbee®	2.4 GHz	TxRx + MCU	802.15.4
Freescale Semiconductor - NXP JN5139-001-M/03R1T	96 kB	192 kB	Module	2.2 V	3.6 V			37 mA	2.5 dBm	37 mA	I2C SPI UART	85 °C	-40 °C		Zigbee®	2.4 GHz		802.15.4	Surface Mount	Antenna Not Included U.FL

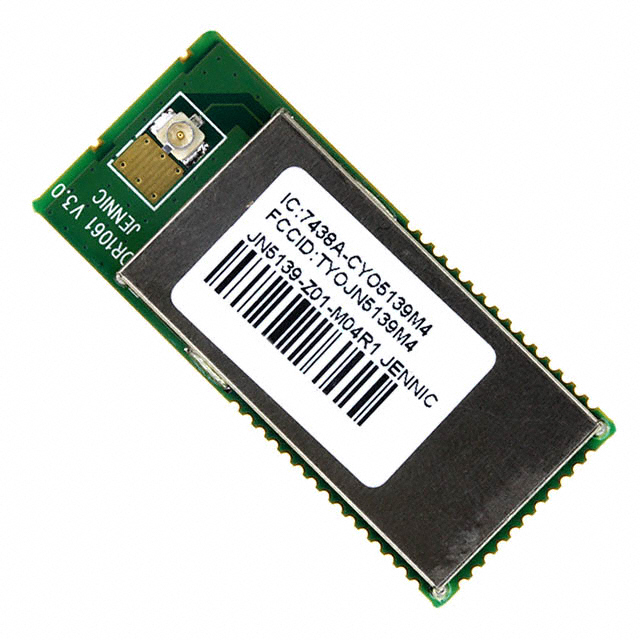

Freescale Semiconductor - NXP JN5139-Z01-M/04R1T	96 kB	192 kB	Module	2.2 V	3.6 V	-100 dBm		125 mA	19 dBm	45 mA	I2C SPI UART	85 °C	-40 °C		Zigbee®	2.4 GHz		802.15.4	Surface Mount	Antenna Not Included U.FL
