RR3130A Series
Manufacturer: E-Switch
Beta
⌘K

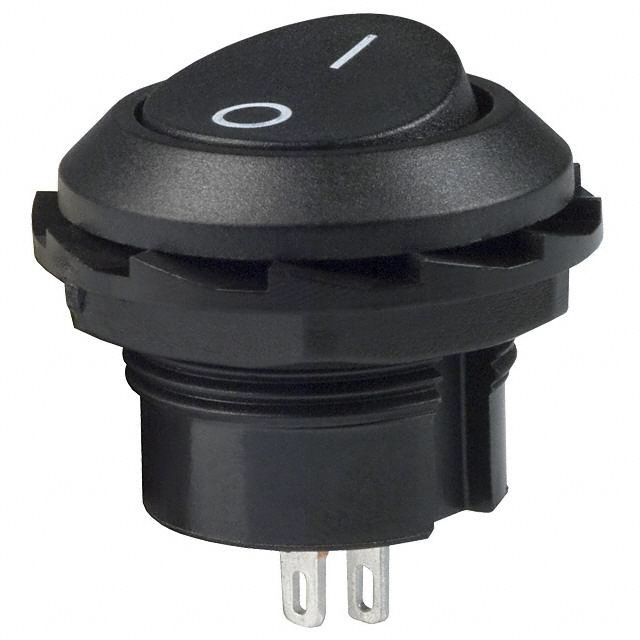

ROCKER SWITCH, ON-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, RR 3130 SERIES
| Part | Mechanical Life | Electrical Life | Termination Style | Actuator Marking | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Mounting Type | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Color - Actuator/Cap | Actuator Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 20000 Cycles | 6000 Cycles | Solder Lug | O - | On-Off | 0 °C | 65 °C | SPST | Panel Mount Threaded Body with Nut | 18.2 mm | 125 V | Black | Round | 10 A |

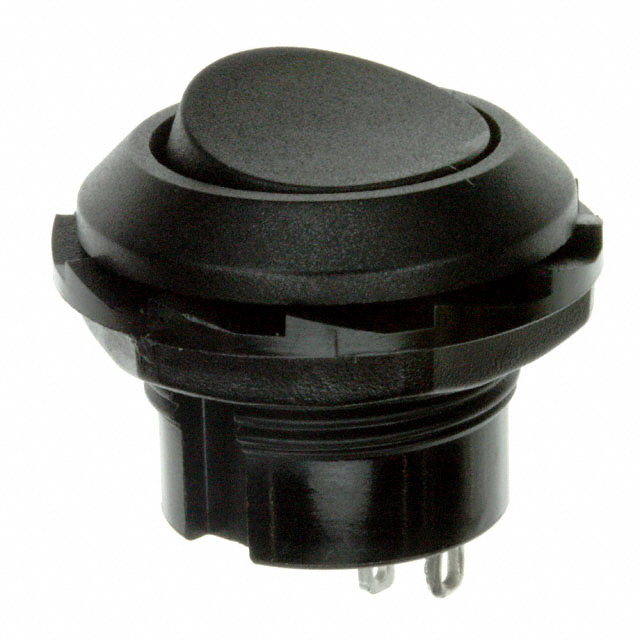

 E-Switch | 20000 Cycles | 6000 Cycles | Solder Lug | No Marking | On-Off | 0 °C | 65 °C | SPST | Panel Mount Threaded Body with Nut | 18.2 mm | 125 V | Black | Round | 10 A |
 E-Switch | 20000 Cycles | 6000 Cycles | Solder Lug | O - | On-Off | 0 °C | 65 °C | SPST | Panel Mount Threaded Body with Nut | 18.2 mm | 125 V | Red | Round | 10 A |
