BU9832GUL-W Series

8KBit, SPI BUS, Low Power Serial EEPROM

Catalog

8KBit, SPI BUS, Low Power Serial EEPROM

Part	Memory Type	Memory Interface	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Memory Organization	Memory Size	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page	Clock Frequency	Memory Format	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]
Rohm Semiconductor BU9832GUL-WE2	Non-Volatile	SPI	EEPROM	1.8 V	5.5 V	Surface Mount	1K x 8	8 Kbit	8-UFBGA CSPBGA	85 °C	-40 °C	5 ms	5 MHz	EEPROM	2.09	8-VCSP50L2	1.85

Catalog

8KBit, SPI BUS, Low Power Serial EEPROM

Key Features

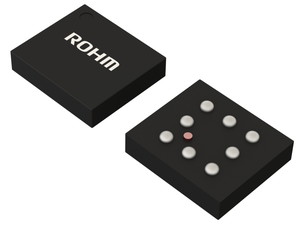

• EEPROMs in the WL-CSP optimized for compact modules and portable devicesVCSP50L2 : 2.09 × 1.85 × 0.55 mm, Completely conforming to the world standard SPI BUS, Wide operating voltage range:1.8 to 5.5V, Data rewrite up to 1,000,000times

Description

New package type, which is WL-CSP, is lined up to the high-reliability EEPROMs. There are a variety of interface products available such as I²C BUS and SPI BUS for the small application (i.e. wireless LAN, Blue tooth, and so on).
