SA10-21 Series

Catalog

DISPLAY 7-SEG 1" SGL RED 10DIP

Part	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Display Type	Wavelength - Peak	Millicandela Rating	Common Pin	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Characters	Voltage - Forward (Vf) (Typ)	Color	Power Dissipation (Max)	Package / Case	Power Dissipation (Max) [Max]
Kingbright SA10-21EWA	10-DIP (1.200" 30.48mm)	1 in	25.4 mm	20 mA	7-Segment	627 nm	23 mcd	Common Anode	24 mm	34 mm	1.339 in	0.945 "	10.5 mm	0.413 in	1	4 V	Red	150 mW

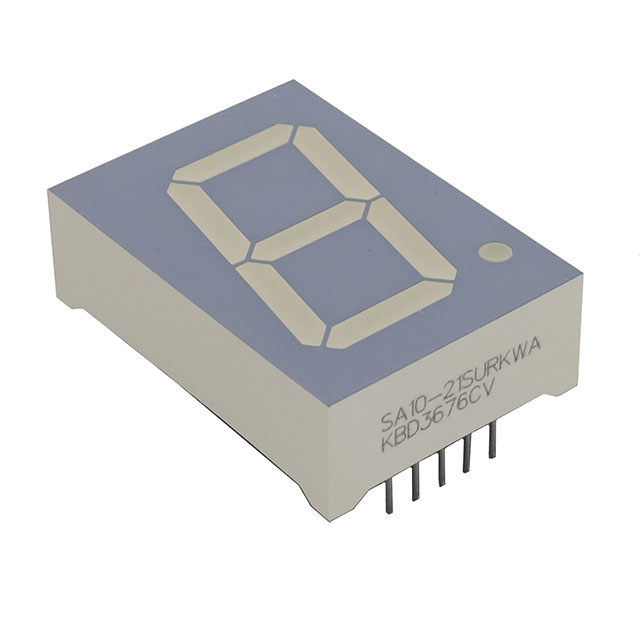

Kingbright SA10-21SURKWA	10-DIP	1 in	25.4 mm	20 mA	7-Segment	645 nm	260 mcd	Common Anode	14 mm	10.5 mm	0.413 in	0.551 in	34 mm	1.339 in	1	1.95 V	Red		1.197 in 30.4 mm	75 mw
Kingbright SA10-21SRWA	10-DIP (1.200" 30.48mm)	1 in	25.4 mm	20 mA	7-Segment	660 nm	120 mcd	Common Anode	24 mm	34 mm	1.339 in	0.945 "	10.5 mm	0.413 in	1	3.7 V	Red	150 mW
Kingbright SA10-21CGKWA	10-DIP	1 in	25.4 mm	20 mA	7-Segment		95 mcd	Common Anode	14 mm	10.5 mm	0.413 in	0.551 in	34 mm	1.339 in	1	2.1 V	Green		1.197 in 30.4 mm	75 mw
Kingbright SA10-21SYKWA	10-DIP	1 in	25.4 mm	20 mA	7-Segment	590 nm	400 mcd	Common Anode	14 mm	10.5 mm	0.413 in	0.551 in	34 mm	1.339 in	1	2 V	Yellow		1.197 in 30.4 mm	75 mw
Kingbright SA10-21YWA	10-DIP (1.200" 30.48mm)	1 in	25.4 mm	20 mA	7-Segment	590 nm	23 mcd	Common Anode	24 mm	34 mm	1.339 in	0.945 "	10.5 mm	0.413 in	1	4.2 V	Yellow	150 mW
Kingbright SA10-21GWA	10-DIP (1.200" 30.48mm)	1 in	25.4 mm	20 mA	7-Segment	565 nm	37 mcd	Common Anode	24 mm	34 mm	1.339 in	0.945 "	10.5 mm	0.413 in	1	4.4 V	Green			125 mW
