EB2065 Series

Catalog

LIGHT TOUCH MINIATURE PUSHBUTTON

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Circuit	Illumination Type, Color	Current Rating (Amps)	Switch Function	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Termination Style	Type	Panel Cutout Dimensions [diameter]
NKK Switches EB2065-A-J34ACF	100000 Cycles	25000 Steps	18.4 mm	15 mm	2 VDC 2.1 VDC	SPDT	Green/Red LED	3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	Black	Button Square	Solder Lug	Illuminated Standard

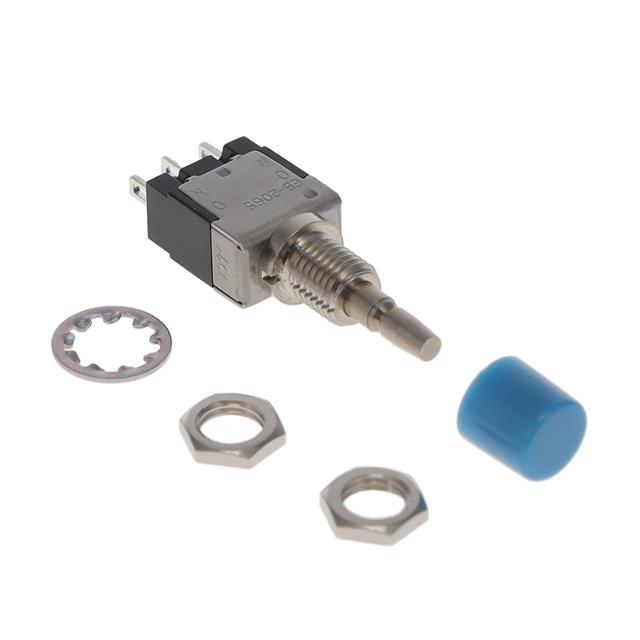

NKK Switches EB2065-BG	100000 Cycles	25000 Steps				SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Blue	Button Round	Solder Lug	Standard	0.25 in

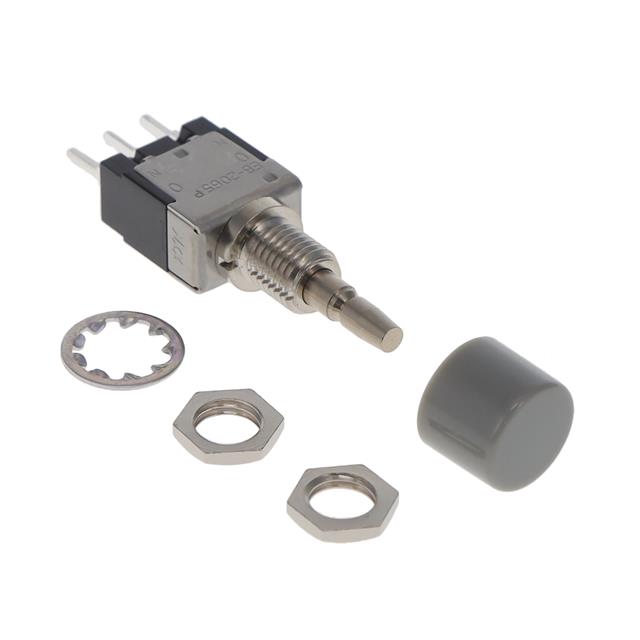

NKK Switches EB2065P-CH	100000 Cycles	25000 Steps				SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V		Button Round	PC Pin	Standard	0.25 in
NKK Switches EB2065-B-J31A	100000 Cycles	25000 Steps	15 mm	12.5 mm		SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	White	Button Square	Solder Lug	Standard
NKK Switches EB2065-H-J31H	100000 Cycles	25000 Steps	15 mm	12.5 mm		SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V		Button Square	Solder Lug	Standard

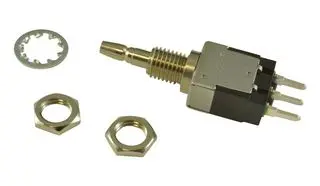

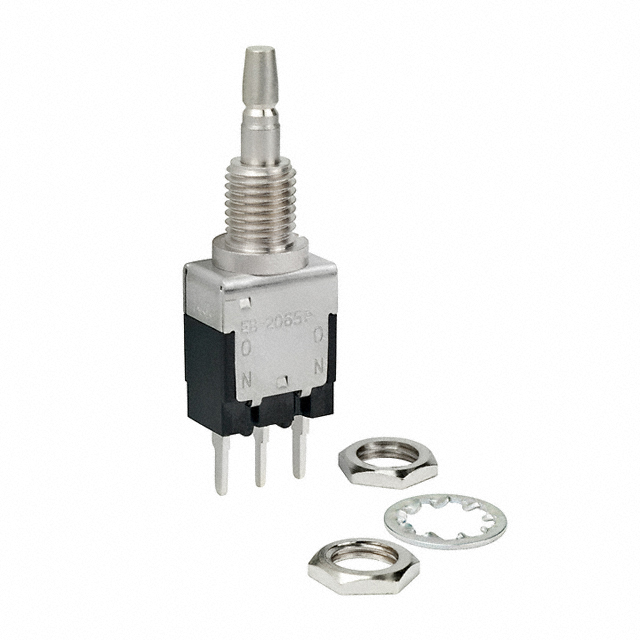

NKK Switches EB2065P	100000 Cycles	25000 Steps				SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V		Plunger for Cap	PC Pin	Standard	0.25 in
NKK Switches EB2065P-CC	100000 Cycles	25000 Steps				SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Red	Button Round	PC Pin	Standard	0.25 in

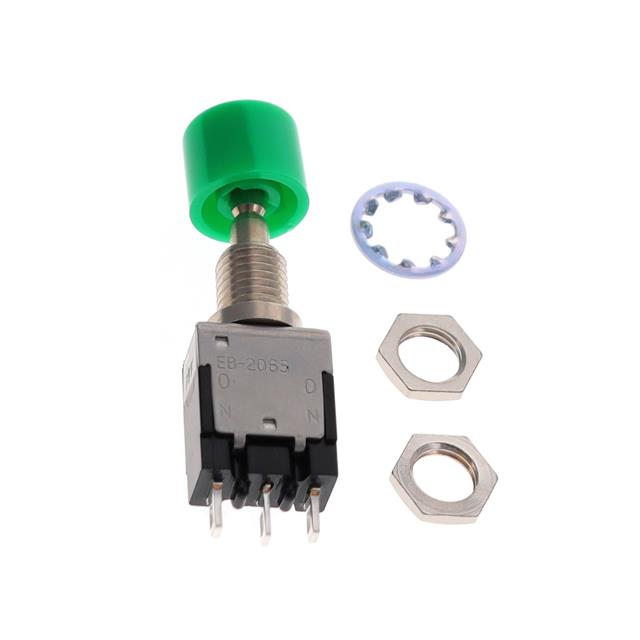

NKK Switches EB2065-CF	100000 Cycles	25000 Steps				SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Green	Button Round	Solder Lug	Standard	0.25 in

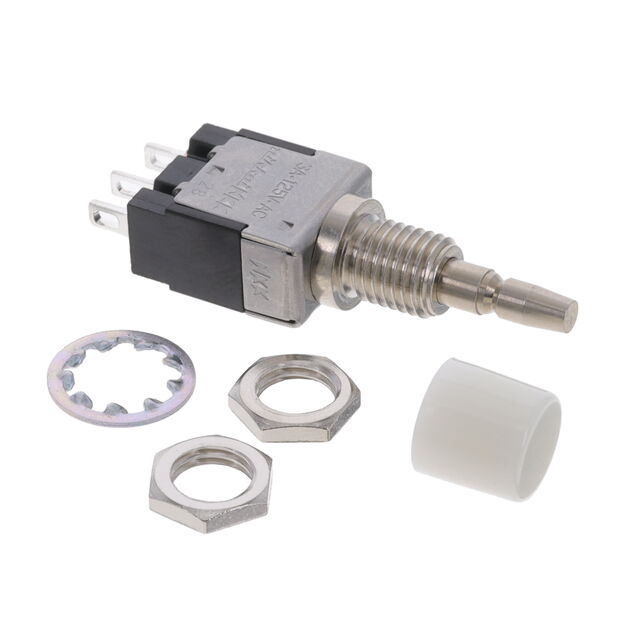

NKK Switches EB2065-BB	100000 Cycles	25000 Steps				SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	White	Button Round	Solder Lug	Standard	0.25 in
NKK Switches EB2065-G-J31A	100000 Cycles	25000 Steps	15 mm	12.5 mm		SPDT		3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	Blue	Button Square	Solder Lug	Standard
