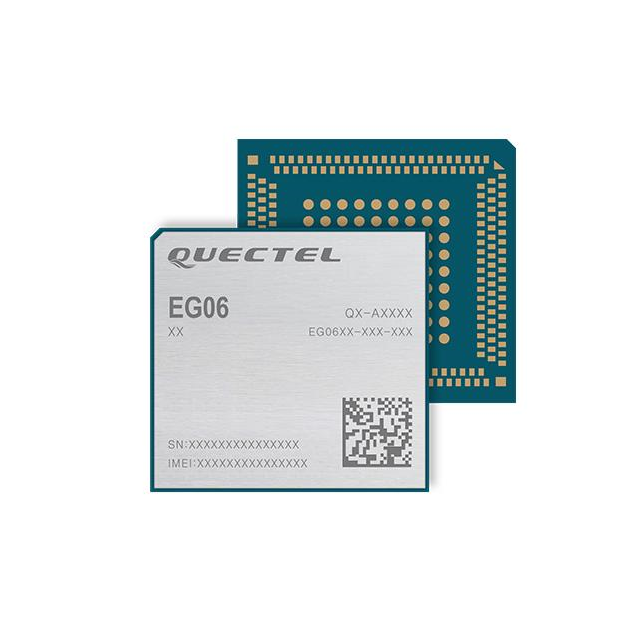

EG06 Series
Manufacturer: Quectel
Beta
⌘K
RF TXRX MOD CELL NAV SMD
| Part | Current - Receiving | Current - Transmitting | Data Rate | Package / Case | Mounting Type | Utilized IC / Part | Operating Temperature [Max] | Operating Temperature [Min] | Serial Interfaces | Protocol | RF Family/Standard | Voltage - Supply [Max] | Voltage - Supply [Min] | Antenna Type | Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | 20 mA | 20 mA | 300 Mbps | Module | Surface Mount | MDM9240-1 | 75 ░C | -35 °C | ADC GPIO I2C PCM UART USB | BeiDou Galileo GLONASS GNSS GPS LTE | Cellular Navigation | 4.3 V | 3.3 V | Antenna Not Included | ||
Quectel | 18 mA | 18 mA | 300 Mbps | Module | Surface Mount | MDM9240-1 | 75 ░C | -35 °C | ADC GPIO I2C PCM UART USB | BeiDou Galileo GLONASS GNSS GPS LTE WCDMA | Cellular Navigation | 4.3 V | 3.3 V | Antenna Not Included | ||
Quectel | 20 mA | 20 mA | 300 Mbps | Module | Surface Mount | MDM9240-1 | 75 ░C | -35 °C | ADC GPIO I2C PCM UART USB | BeiDou Galileo GLONASS GNSS GPS LTE WCDMA | Cellular Navigation | 4.3 V | 3.3 V | Antenna Not Included | ||

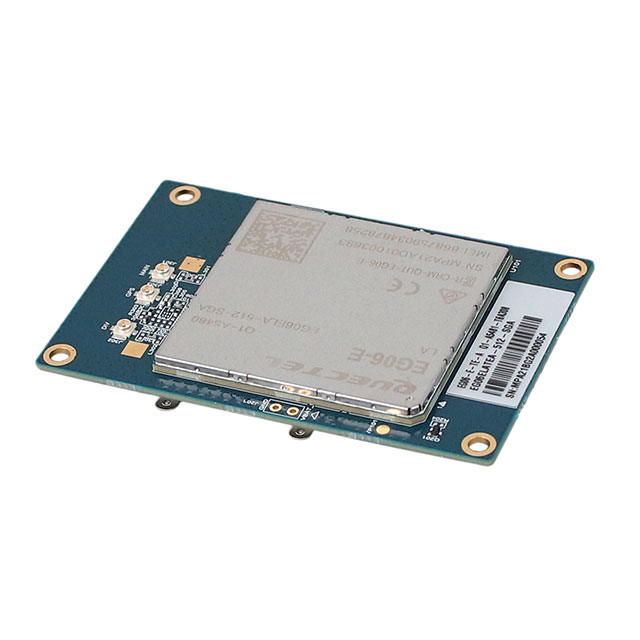

 Quectel | 18 mA | 18 mA | 300 Mbps | Module | Surface Mount | EG06 | 75 ░C | -35 °C | ADC GPIO I2C PCM UART USB | BeiDou Galileo GLONASS GNSS GPS LTE WCDMA | Cellular Navigation | 4.3 V | 3.3 V | Antenna Not Included | Board(s) | Cellular |
