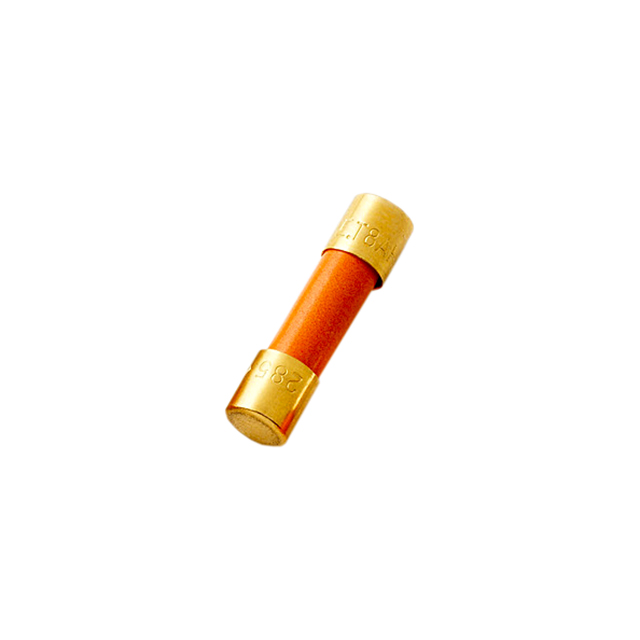

FUSE 250V 5X20 PB-FREE .500A
Description
AI
Ideal for supplementary protection in appliance or utilization equipment, especially in audio and medical equipment.
Beta
⌘K
FUSE 250V 5X20 PB-FREE .500A
FUSE 250V 5X20 PB-FREE .500A
| Part | Breaking Capacity @ Rated Voltage | Response Time | Melting I²t | Voltage Rating - AC | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Fuse Type | Package / Case [x] | Package / Case [y] | Melting I˛t | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1.5 kA | Slow Blow | 0.3 | 250 V | 0.5 A | Requires Holder | -55 C | 125 °C | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Ceramic | 5 mm | 20 mm | ||
 LITTELFUSE | 1.5 kA | Slow Blow | 0.3 | 250 V | 0.5 A | Requires Holder | -55 C | 125 °C | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Ceramic | 5 mm | 20 mm | 0.3 | 1.1215 Ohms |
LITTELFUSE | 1.5 kA | Slow Blow | 0.3 | 250 V | 0.5 A | Requires Holder | -55 C | 125 °C | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Ceramic | 5 mm | 20 mm | ||
LITTELFUSE | 1.5 kA | Slow Blow | 0.3 | 250 V | 0.5 A | Requires Holder | -55 C | 125 °C | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Ceramic | 5 mm | 20 mm |
