2390868 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

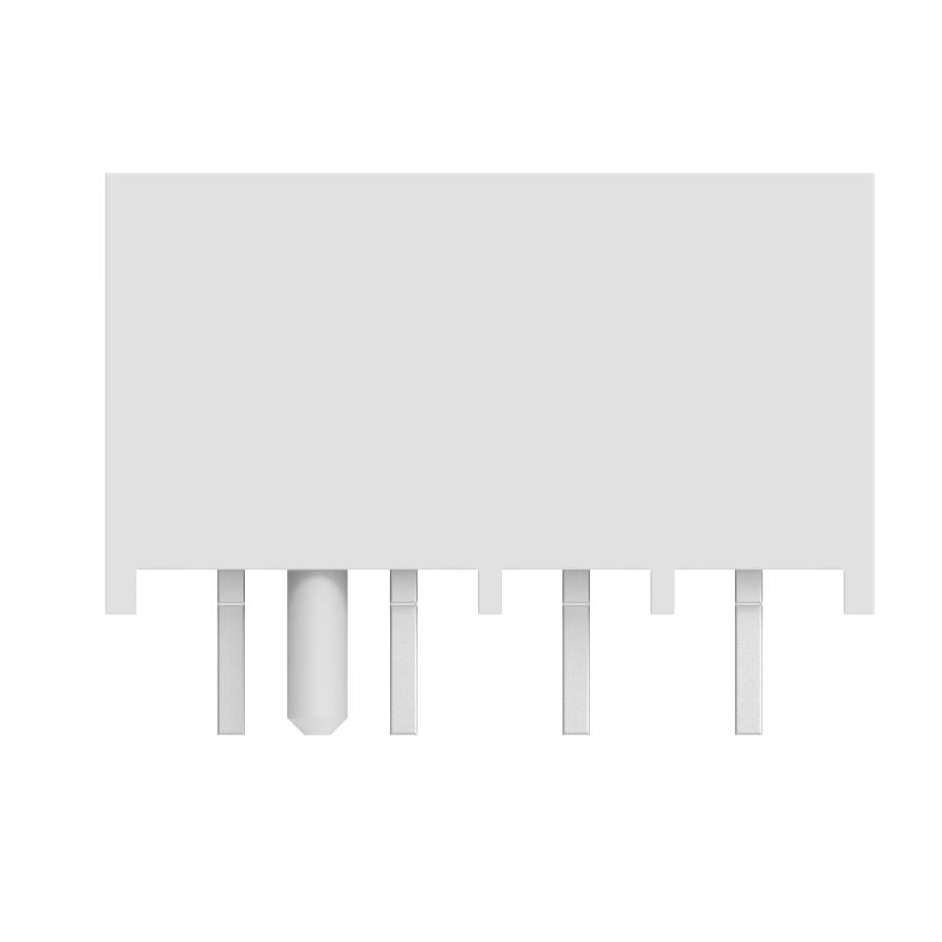

4P, RAST 5 HEADER, PL, SHROUDED
| Part | Insulation Height | Insulation Height | Number of Positions Loaded | Style | Pitch - Mating | Pitch - Mating | Contact Type | Termination | Voltage Rating | Mounting Type | Number of Rows | Shrouding | Contact Length - Post | Contact Length - Post | Contact Shape | Features | Insulation Material | Contact Material | Fastening Type | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Connector Type | Material Flammability Rating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12.8 mm | 0.504 in | All | Board to Cable/Wire | 5 mm | 0.197 " | Tab | Solder | 250 VAC | Through Hole | 1 | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Rectangular | Board Guide | Nylon Polyamide (PA) | Copper Alloy | Detent Lock | Natural | -40 °C | 120 °C | 4 | Header | UL94 V-0 | Tin |
 TE Connectivity Raychem Cable Protection | 12.8 mm | 0.504 in | All | Board to Cable/Wire | 5 mm | 0.197 " | Tab | Solder | 250 VAC | Through Hole | 1 | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Rectangular | Board Guide | Nylon Polyamide (PA) | Copper Alloy | Detent Lock | Natural | -40 °C | 120 °C | Header | UL94 V-0 | Tin | |
 TE Connectivity Raychem Cable Protection | 12.8 mm | 0.504 in | All | Board to Cable/Wire | 5 mm | 0.197 " | Tab | Solder | 250 VAC | Through Hole | 1 | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Rectangular | Board Guide | Nylon Polyamide (PA) | Copper Alloy | Detent Lock | Natural | -40 °C | 120 °C | 4 | Header | UL94 V-0 | Tin |
 TE Connectivity Raychem Cable Protection | 12.8 mm | 0.504 in | All | Board to Cable/Wire | 5 mm | 0.197 " | Tab | Solder | 250 VAC | Through Hole | 1 | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Rectangular | Board Guide | Nylon Polyamide (PA) | Copper Alloy | Detent Lock | Natural | -40 °C | 120 °C | 2 | Header | UL94 V-0 | Tin |
