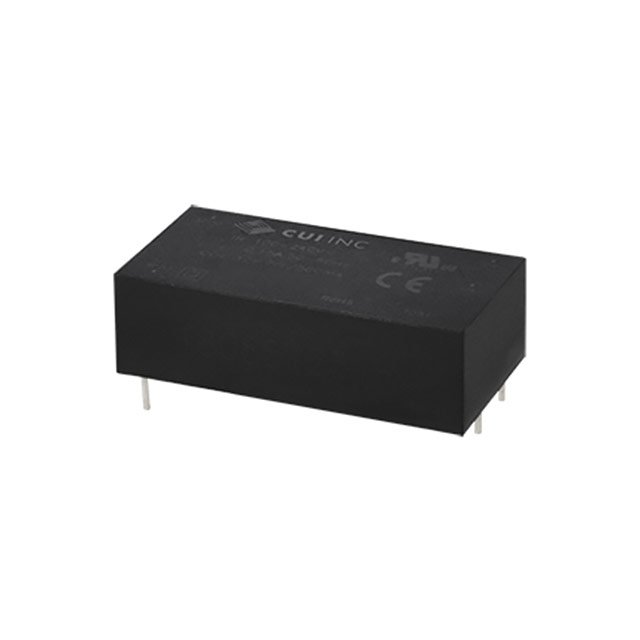

PSK-S6C Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 6W

Part	Features	Mounting Type	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Package / Case	Number of Outputs	Efficiency	Load Regulation	Type	Line Regulation	Current - Output (Max) [Max]	Voltage - Isolation	Current - Output 1	DC Voltage - Input (Min) [Min]	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Max) [Max]
CUI Inc. PSK-S6C-15	Universal Input	Through Hole	CB Scheme EN IEC UL	85 VAC 100 V	264 VAC 370 VDC	6 W	15 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	50.8 mm	1 "	2 in	25.4 mm	0.6 "	15.4 mm	ITE (Commercial)	4-DIP Module	1	77 %	±1%	Enclosed	0.5 %	400 mA
CUI Inc. PSK-S6C-3	Universal Input	Through Hole	CB Scheme EN IEC UL	85 VAC 100 V	264 VAC 370 VDC	4.1 W	3.3 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	50.8 mm	1 "	2 in	25.4 mm	0.6 "	15.4 mm	ITE (Commercial)	4-DIP Module	1	70 %	±1%	Enclosed	0.5 %	1.25 A

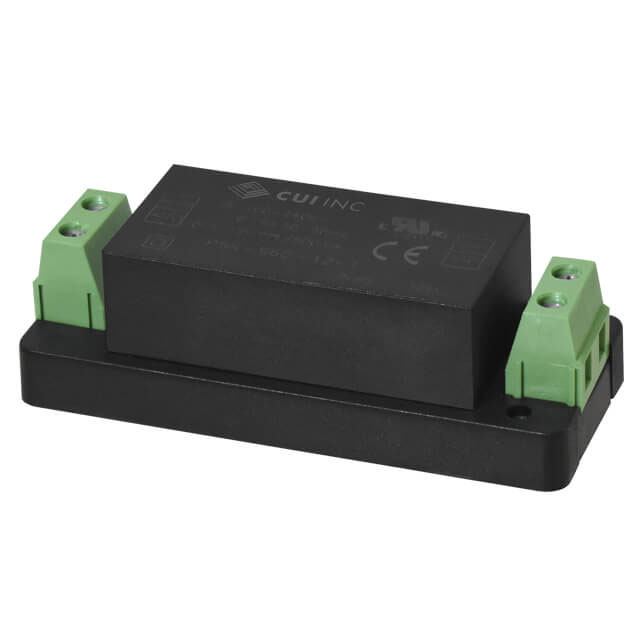

CUI Inc. PSK-S6C-24-T	Universal Input	Chassis Mount	CB Scheme EN IEC UL	85 VAC 100 V	264 VAC 370 VDC	6 W	24 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	76 mm	1.24 in	2.99 in	31.5 mm	24.13 mm	24.2 mm	ITE (Commercial)		1	80 %		Enclosed			4000 V	250 mA

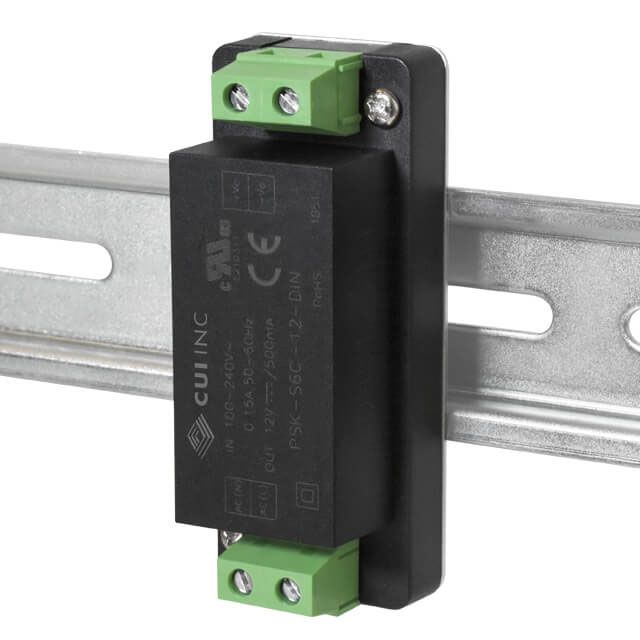

CUI Inc. PSK-S6C-5-DIN	Universal Input		CB Scheme EN IEC UL			6 W	5 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	76 mm	1.24 in	2.99 in	31.5 mm	1.13 "	28.8 mm	ITE (Commercial)		1	76 %				1.2 A	4000 V		100 V	AC or DC	264 VAC	85 VAC	370 V
CUI Inc. PSK-S6C-12-T	Universal Input	Chassis Mount	CB Scheme EN IEC UL	85 VAC 100 V	264 VAC 370 VDC	6 W	12 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	76 mm	1.24 in	2.99 in	31.5 mm	24.13 mm	24.2 mm	ITE (Commercial)		1	77 %		Enclosed			4000 V	500 mA
CUI Inc. PSK-S6C-9-DIN	Universal Input		CB Scheme EN IEC UL			6 W	9 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	76 mm	1.24 in	2.99 in	31.5 mm	1.13 "	28.8 mm	ITE (Commercial)		1	74 %				660 mA	4000 V		100 V	AC or DC	264 VAC	85 VAC	370 V
CUI Inc. PSK-S6C-24-DIN	Universal Input		CB Scheme EN IEC UL			6 W	24 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	76 mm	1.24 in	2.99 in	31.5 mm	1.13 "	28.8 mm	ITE (Commercial)		1	80 %				250 mA	4000 V		100 V	AC or DC	264 VAC	85 VAC	370 V
CUI Inc. PSK-S6C-5	Universal Input	Through Hole	CB Scheme EN IEC UL	85 VAC 100 V	264 VAC 370 VDC	6 W	5 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	50.8 mm	1 "	2 in	25.4 mm	0.6 "	15.4 mm	ITE (Commercial)	4-DIP Module	1	76 %	±1%	Enclosed	0.5 %	1.2 A
CUI Inc. PSK-S6C-24	Universal Input	Through Hole	CB Scheme EN IEC UL	85 VAC 100 V	264 VAC 370 VDC	6 W	24 V	55024 55032 Class A 60950-1 61000-3-2 62368-1	50.8 mm	1 "	2 in	25.4 mm	0.6 "	15.4 mm	ITE (Commercial)	4-DIP Module	1	80 %	±1%	Enclosed	0.5 %	250 mA
