SM08B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

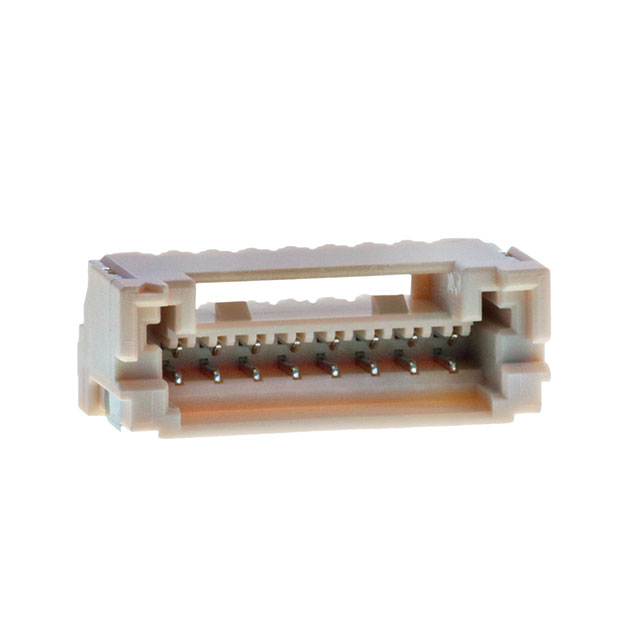

CONN HEADER SMD R/A 8POS 1.5MM
| Part | Contact Material | Insulation Material | Number of Rows | Contact Shape | Fastening Type | Connector Type | Insulation Color | Number of Positions | Shrouding | Voltage Rating | Current Rating (Amps) | Style | Insulation Height [z] | Insulation Height [z] | Termination | Features | Number of Positions Loaded | Contact Finish - Post | Contact Type | Mounting Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | Nylon Polyamide (PA) | 1 | Rectangular | Locking Ramp | Header | Natural | 8 | Shrouded - 4 Wall | 100 V | 2 A | Board to Cable/Wire | 0.228 " | 5.8 mm | Solder | Solder Retention | All | Tin | Outer Shroud Contact | Right Angle Surface Mount | UL94 V-0 | 85 °C | -25 °C |
