VM10 Series

Catalog

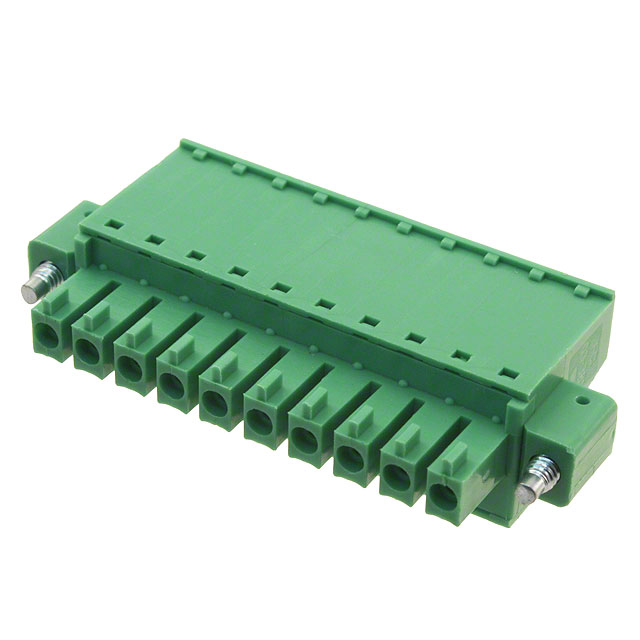

TERM BLOCK PLUG 10POS STR 5.08MM

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Screw Size	Housing Material	Color	Material Flammability Rating	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Insulation Height [z]	Insulation Height [z]	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Features	Number of Positions	Type	Current - UL	Voltage - UL	Pitch [x]	Pitch [x]	Contact Mating Finish	Positions Per Level	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Insulation Height [custom]	Insulation Height [custom]	Insulation Height	Insulation Height
Amphenol Anytek VM1055830000G	Copper	-40 °C	115 °C	M2.5	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	12 AWG	22 AWG	1	0.587 in	14.91 mm	0.4 Nm	3.5 Lb-In	7 mm	6 mm	Mating Flange Retention Latches (Non-Wire Side)	10	Plug Female Sockets	20 A	300 V	0.2 in	5.08 mm	Tin	10	0.34 mm²	2.5 mm²	Screw - Pressure Clip
Amphenol Anytek VM1015000000G	Phosphor Bronze	-40 °C	115 °C	M2	Thermoplastic	Black	UL94 V-0	Free Hanging (In-Line)	16 AWG	28 AWG	1			0.2 Nm	1.7 Lb-In	7 mm	6 mm		10	Plug Female Sockets	10 A	300 V	0.138 in	3.5 mm	Tin	10			Screw - Pressure Clip	0.488 in	12.4 mm
Amphenol Anytek VM1005830000G	Copper	-40 °C	115 °C	M2.5	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	12 AWG	22 AWG	1	0.587 in	14.91 mm	0.4 Nm	3.5 Lb-In	9 mm	8 mm	Mating Flange Retention Latches (Non-Wire Side)	10	Plug Female Sockets	20 A	300 V	0.3 in	7.62 mm	Tin	10			Screw - Pressure Clip
Amphenol Anytek VM1055820000G	Copper	-40 °C	115 °C	M2.5	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	12 AWG	22 AWG	1			0.4 Nm	3.5 Lb-In	9 mm	8 mm	Mating Flange Retention Latches (Non-Wire Side)	10	Plug Female Sockets	20 A	300 V	0.2 in	5.08 mm	Tin	10	0.34 mm²	2.5 mm²	Screw - Pressure Clip			0.591 in	15 mm
Amphenol Anytek VM1035800000G	Phosphor Bronze	-40 °C	115 °C	M2	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	16 AWG	28 AWG	1			0.2 Nm	1.7 Lb-In	7 mm	6 mm		10	Plug Female Sockets	10 A	300 V	0.15 in	3.81 mm	Tin	10			Screw - Pressure Clip			0.465 in	11.8 mm
Amphenol Anytek VM1015800000G	Phosphor Bronze	-40 °C	115 °C	M2	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	16 AWG	28 AWG	1			0.2 Nm	1.7 Lb-In	7 mm	6 mm		10	Plug Female Sockets	10 A	300 V	0.138 in	3.5 mm	Tin	10			Screw - Pressure Clip	0.488 in	12.4 mm
Amphenol Anytek VM1015820000G	Phosphor Bronze	-40 °C	115 °C	M2	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	16 AWG	28 AWG	1			0.2 Nm	1.7 Lb-In	7 mm	6 mm	Mating Flange	10	Plug Female Sockets	10 A	300 V	0.138 in	3.5 mm	Tin	10			Screw - Pressure Clip	0.488 in	12.4 mm
Amphenol Anytek VM1075820000G	Copper	-40 °C	115 °C	M2.5	Thermoplastic	Gray	UL94 V-0	Free Hanging (In-Line)	12 AWG	22 AWG	1			0.4 Nm	3.5 Lb-In	7 mm	6 mm	Mating Flange Retention Latches (Non-Wire Side)	10	Plug Female Sockets	20 A	300 V	0.197 in	5 mm	Tin	10	0.34 mm²	2.5 mm²	Screw - Pressure Clip			0.591 in	15 mm
Amphenol Anytek VM1035520000G	Copper Alloy	-40 °C	115 °C	M2	Thermoplastic Resin	Green	UL94 V-0	Free Hanging (In-Line)	16 AWG	28 AWG	1			0.2 Nm	1.7 Lb-In	7 mm	6 mm	Mating Flange	10	Plug Female Sockets	10 A	300 V	0.15 in	3.81 mm	Tin	10	0.5 mm²	1.5 mm²	Screw - Pressure Clip			0.854 "	21.69 mm
Amphenol Anytek VM1035000000G	Phosphor Bronze	-40 °C	115 °C	M2	Thermoplastic	Black	UL94 V-0	Free Hanging (In-Line)	16 AWG	28 AWG	1			0.2 Nm	1.7 Lb-In	7 mm	6 mm		10	Plug Female Sockets	10 A	300 V	0.15 in	3.81 mm	Tin	10			Screw - Pressure Clip			0.465 in	11.8 mm
