AS5048 Series

Catalog

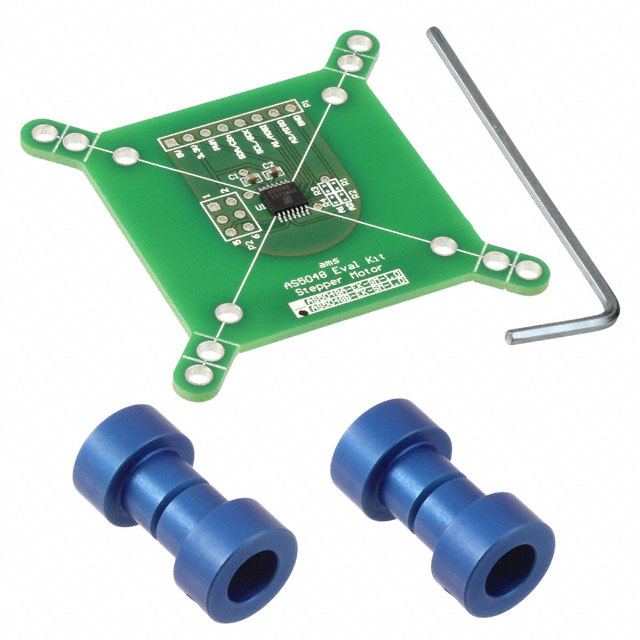

KIT EVAL MOTOR POSITION AS5048B

Part	Supplied Contents	Sensor Type	Sensing Range	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Contents	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Mounting Type	Termination Style	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Actuator Type	For Measuring	Supplier Device Package	Output	Package / Case [x]	Package / Case
ams-OSRAM USA INC. AS5048B MOTORBOARD	Accessories Board(s)	Magnetic Rotary Position	360 °	5.5 V	4.5 V	I2C	Accessories Board(s)
ams-OSRAM USA INC. AS5048B ADAPTERBOARD		Magnetic Rotary Position	360 °	5.5 V	3 V	I2C	Board(s)
ams-OSRAM USA INC. AS5048A-HTSP TSSOP14 LF T&RDP				3.6 V 5.5 V	3 V 4.5 V			-40 C	150 °C	Hall Effect	Surface Mount	Gull Wing	360 °	0 °	External Magnet Not Included	Angle	14-TSSOP	PWM SPI	0.173 " 4.4 mm	14-TSSOP
ams-OSRAM USA INC. AS5048A-HTSP-500				3.6 V 5.5 V	3 V 4.5 V			-40 C	150 °C	Hall Effect	Surface Mount	Gull Wing	360 °	0 °	External Magnet Not Included	Angle	14-TSSOP	PWM SPI	0.173 " 4.4 mm	14-TSSOP
