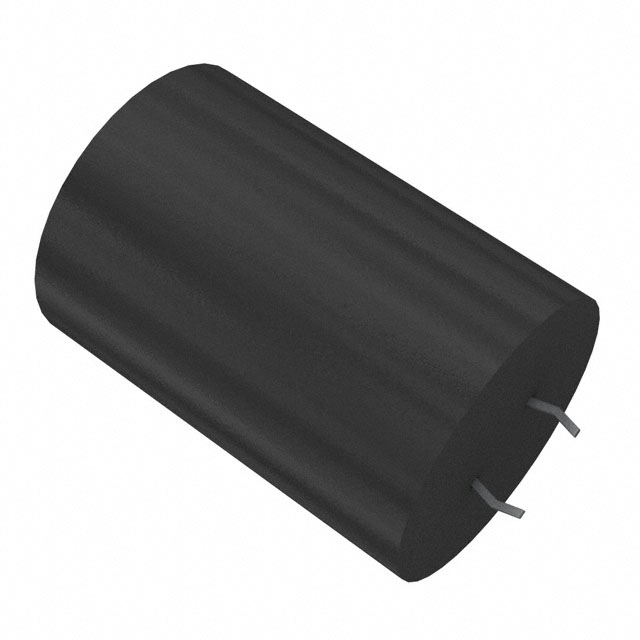

ALC10A Series

Manufacturer: KEMET

Catalog

CAP ALUM 330UF 20% 550V SNAP TH

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Ripple Current @ Low Frequency	Applications	Tolerance	ESR (Equivalent Series Resistance)	Capacitance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Voltage - Rated	Ripple Current @ High Frequency	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALC10A331EE550	1.575 in	40 mm	Through Hole	2.4 A	General Purpose	20 %	1.056 Ohm	330 µF	0.394 in	10 mm	18000 Hrs	550 V	3.9 A	Radial Can - Snap-In	1.85 in	47 mm	Polar	920 mOhms	85 °C	-40 C
KEMET ALC10A681DL500	1.378 "	35 mm	Through Hole	3.65 A	General Purpose	20 %	244 mOhm	680 µF	0.394 in	10 mm	15000 Hrs	500 V	6.45 A	Radial Can - Snap-In		3.228 in	Polar	178 mOhms	85 °C	-40 C	82 mm
KEMET ALC10A331CF450	1.181 "		Through Hole	1.91 A	General Purpose	20 %	373 mOhm	330 µF	0.394 in	10 mm	13000 Hrs	450 V	3.54 A	Radial Can - Snap-In	2.047 in	52 mm	Polar	253 mOhms	85 °C	-40 C		30 mm
KEMET ALC10A102DF250	1.378 "	35 mm	Through Hole	3.26 A	General Purpose	20 %	163 mOhm	1000 µF	0.394 in	10 mm	15000 Hrs	250 V	4.75 A	Radial Can - Snap-In	2.047 in	52 mm	Polar	106 mOhms	85 °C	-40 C
KEMET ALC10A681DH400	1.378 "	35 mm	Through Hole	2.9 A	General Purpose	20 %	232 mOhm	680 µF	0.394 in	10 mm	15000 Hrs	400 V	4.73 A	Radial Can - Snap-In	2.441 in		Polar	142 mOhms	85 °C	-40 C			62 mm
KEMET ALC10A181DC550	1.378 "	35 mm	Through Hole	1.5 A	General Purpose	20 %	1.94 Ohm	180 µF	0.394 in	10 mm	15000 Hrs	550 V	2.34 A	Radial Can - Snap-In			Polar	1.694 Ohms	85 °C	-40 C			37 mm	1.457 in
KEMET ALC10A102EP550	1.575 in	40 mm	Through Hole	4.86 A	General Purpose	20 %	352 mOhm	1000 µF	0.394 in	10 mm	18000 Hrs	550 V	7.59 A	Radial Can - Snap-In	4.213 in	107 mm	Polar	308 mOhms	85 °C	-40 C
KEMET ALC10A331DF500	1.378 "	35 mm	Through Hole	2.14 A	General Purpose	20 %	492 mOhm	330 µF	0.394 in	10 mm	15000 Hrs	500 V	3.75 A	Radial Can - Snap-In	2.047 in	52 mm	Polar	366 mOhms	85 °C	-40 C
KEMET ALC10A681DL450	1.378 "	35 mm	Through Hole	3.61 A	General Purpose	20 %	190 mOhm	680 µF	0.394 in	10 mm	15000 Hrs	450 V	6.09 A	Radial Can - Snap-In		3.228 in	Polar	131 mOhms	85 °C	-40 C	82 mm
KEMET ALC10A821DJ400	1.378 "	35 mm	Through Hole		General Purpose	20 %		820 µF	0.394 in	10 mm	15000 Hrs	400 V		Radial Can - Snap-In			Polar		85 °C	-40 C				2.756 in	70 mm
