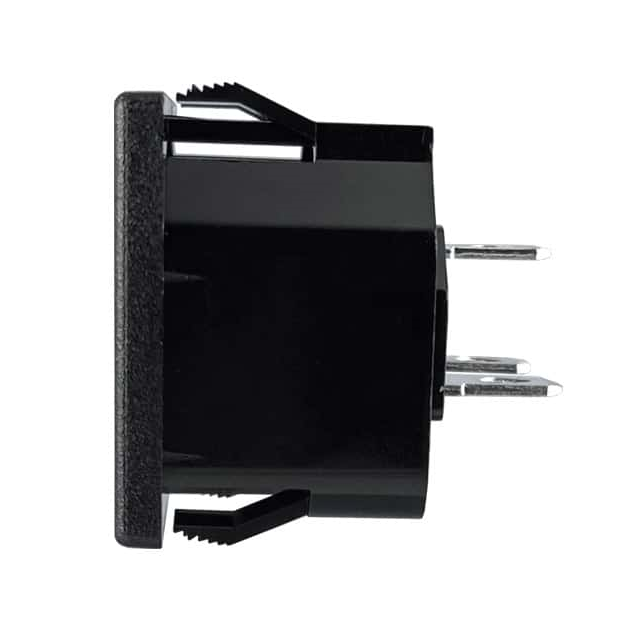

716W-X2 Series
Manufacturer: Qualtek
Beta
⌘K
PWR ENT RCPT IEC320-2-2F PNL QC
| Part | Connector Style | Accomodates a Fuse | Filter Type | Termination | Termination | Termination | Mounting Type | Approval Agency | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Connector Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | IEC 320-2-2/F | Unfiltered - Commercial | 0.189 " | 4.8 mm | Quick Connect | Panel Mount Snap-In | CSA TUV UL | 0.031 in | 0.059 in | 0.79 mm | 1.5 mm | 250 VAC | 10 A | Receptacle Female Sockets | 32.6 mm | 25.3 mm | |
 Qualtek | IEC 320-2-2/F | Unfiltered - Commercial | 0.25 " | 6.3 mm | Quick Connect | Panel Mount Snap-In | CCC CSA NEMKO TUV UL | 0.031 in | 0.059 in | 0.79 mm | 1.5 mm | 250 VAC | 10 A | Receptacle Female Sockets | 32.6 mm | 25.3 mm | |
Qualtek | IEC 320-2-2/F | Unfiltered - Commercial | Solder Eyelet | Panel Mount Snap-In | CSA TUV UL | 0.031 in | 0.059 in | 0.79 mm | 1.5 mm | 250 VAC | 10 A | Receptacle Female Sockets | 32.6 mm | 25.3 mm |
