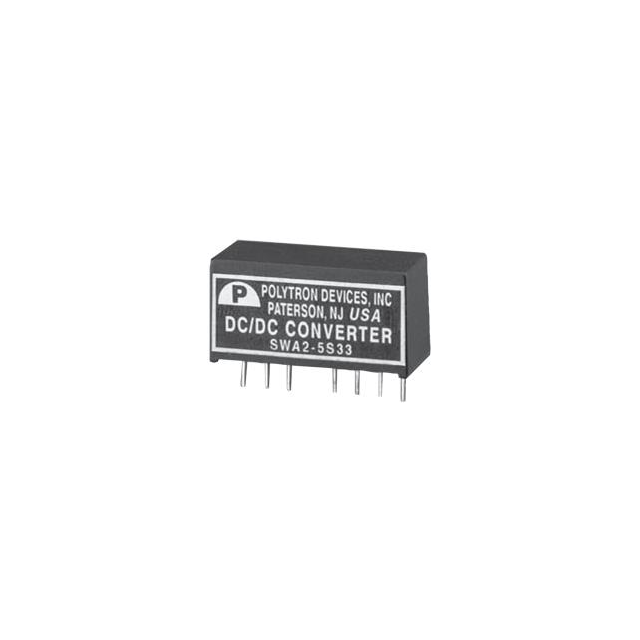

SWA2-24 Series
Manufacturer: Polytron
Beta
⌘K
DC DC CONVERTER +/-15V 2W
| Part | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Type | Efficiency | Voltage - Input (Max) [Max] | Features | Package / Case | Number of Outputs | Applications | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Polytron | -15 V | 67 mA | 67 mA | 2 W | 85 °C | -40 C | 18 V | Isolated Module | 70 % | 36 V | Heat Sink Remote On/Off Remote Sense | 8-SIP Module 7 Leads | 2 | ITE (Commercial) | Through Hole | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 1000 V | 15 V |
