V15 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BASIC / SNAP ACTION SWITCHES V BASICS

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - DC	Termination Style	Differential Travel	Differential Travel	Pretravel	Pretravel	Operating Force	Operating Position	Operating Position	Mounting Type	Overtravel	Overtravel	Voltage Rating - AC	Release Force	Switch Function	Actuator Type	Current Rating (Amps)	Differential Travel	Overtravel [custom]	Overtravel [custom]	Electrical Life
Honeywell Sensing and Productivity Solutions V15S05-CP200A06	SPST-NO	85 °C	-25 °C	500000 Cycles	48 V	Quick Connect - 0.250" (6.3mm)	0.05 in	1.3 mm	0.125 in	3.2 mm	120 gf	20.6 mm	0.812 in	Chassis Mount	1.2 mm	0.047 "	125 V	20 gf	Off-Mom	Lever Roller	5 A 100 mA

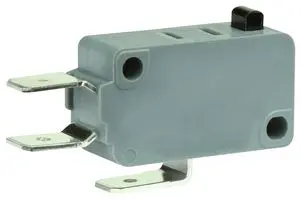

Honeywell Sensing and Productivity Solutions V15T16-CP300A02	SPST-NO	125 °C	-25 °C	1000000 Cycles		Quick Connect - 0.250" (6.3mm)	1.2 mm		0.125 in	3.2 mm	180 gf	15.3 mm	0.602 in	Chassis Mount			125 V	30 gf	Off-Mom	Lever Straight	16 A	0.047 in	0.051 "	1.3 mm
Honeywell Sensing and Productivity Solutions V15T16-CC100	SPST-NC	125 °C	-25 °C	1000000 Cycles		Quick Connect - 0.250" (6.3mm)	0.5 mm		0.06 in	1.5 mm	100 gf	14.7 mm	0.579 in	Chassis Mount			125 V	25 gf	On-Mom	Round (Pin Plunger)	16 A	0.02 in	0.03 "	0.76 mm
Honeywell Sensing and Productivity Solutions V15S05-E2Z015-K06
Honeywell Sensing and Productivity Solutions V15T10-DZ100-01

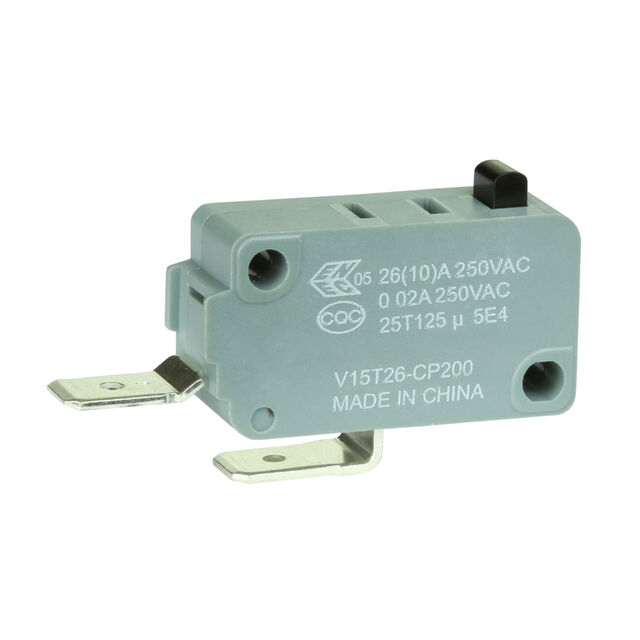

Honeywell Sensing and Productivity Solutions V15T26-CP200	SPST-NO	125 °C	-25 °C	1000000 Cycles		Quick Connect - 0.250" (6.3mm)	0.5 mm		0.06 in	1.5 mm	0.2 kgf	14.7 mm	0.579 in	Chassis Mount			250 V	50 gf	Off-Mom	Round (Pin Plunger)	26 A	0.02 in	0.03 "	0.76 mm
Honeywell Sensing and Productivity Solutions V15T22-CP200	SPST-NO	125 °C	-25 °C	1000000 Cycles		Quick Connect - 0.250" (6.3mm)	0.5 mm		0.06 in	1.5 mm	0.2 kgf	14.7 mm	0.579 in	Chassis Mount			125 V	50 gf	Off-Mom	Round (Pin Plunger)	22 A	0.02 in	0.03 "	0.76 mm
Honeywell Sensing and Productivity Solutions V15T16-DZ100A06-01	SPDT	125 °C	-25 °C	1000000 Cycles		Quick Connect	0.05 in	1.3 mm	0.125 in	3.2 mm	60 gf	20.6 mm	0.812 in	Chassis Mount	1.2 mm	0.047 "	125 V	10 gf	On-Mom	Lever Roller	16 A
Honeywell Sensing and Productivity Solutions V15T16-CZ300	SPDT	125 °C	-25 °C	1000000 Cycles		Quick Connect - 0.250" (6.3mm)	0.4 mm		0.063 in	1.6 mm	300 gf	14.7 mm	0.579 in	Chassis Mount			250 V	75 gf	On-Mom	Round (Pin Plunger)	16 A	0.016 in	0.03 "	0.76 mm	50000 Cycles
Honeywell Sensing and Productivity Solutions V15T22-CZ200	SPDT	125 °C	-25 °C	5000000 Cycles		Quick Connect - 0.250" (6.3mm)	0.4 mm		0.063 in	1.6 mm	0.2 kgf	14.7 mm	0.579 in	Chassis Mount			250 V	50 gf	On-Mom	Round (Pin Plunger)	22 A	0.016 in	0.03 "	0.76 mm	10000 Cycles
