MSM30-NX Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
MSM SERIES 30MM METAL LINE SWITC
| Part | Electrical Life | Mechanical Life | Ingress Protection | Circuit | Actuator Marking | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Switch Function | Illumination Voltage (Nominal) | Termination Style | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Type | Actuator Type | Mounting Type | Voltage Rating - DC | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 100 mA | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | Blue Green LED Red | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 30 V | |

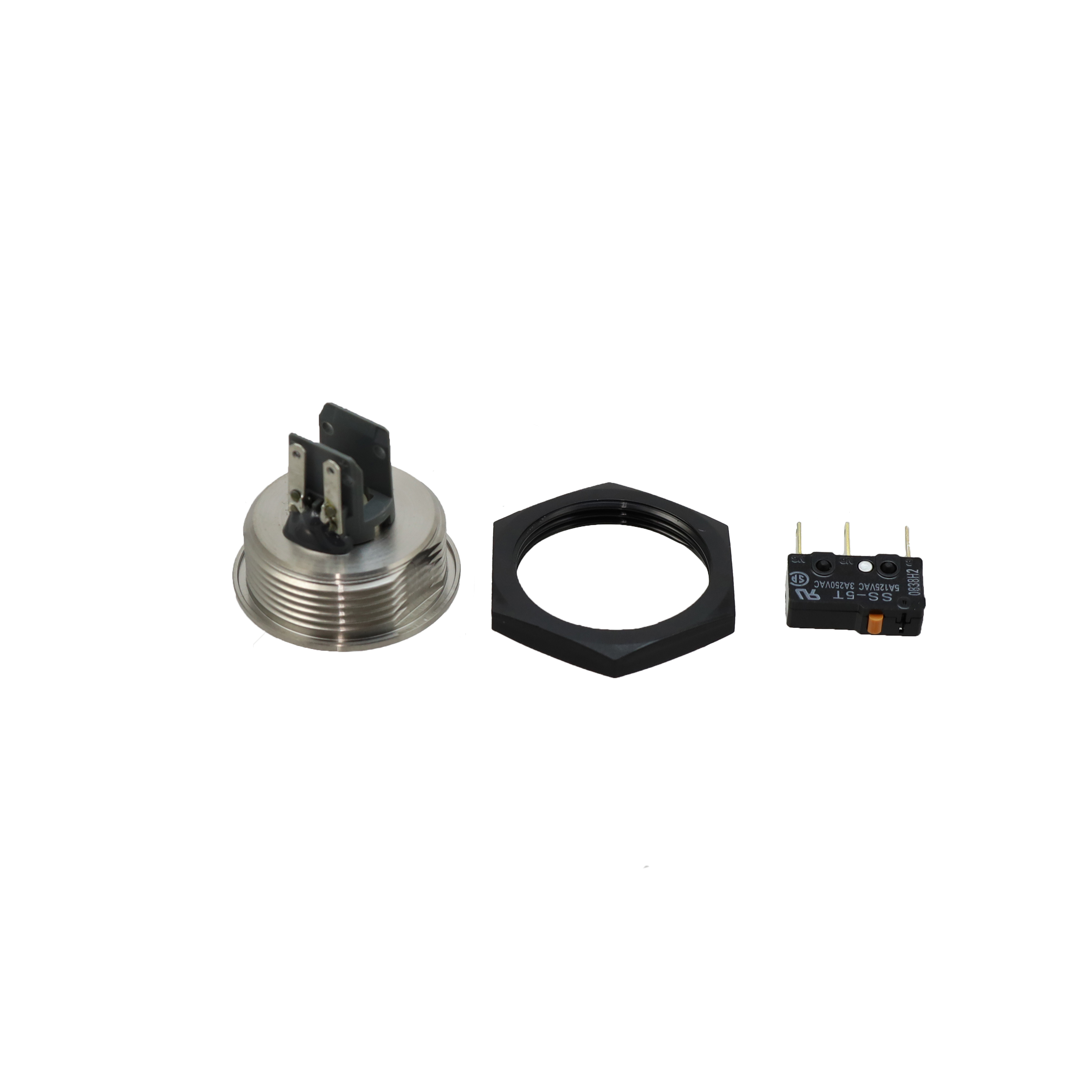

 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 5 A | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | LED Red | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 125 V | |

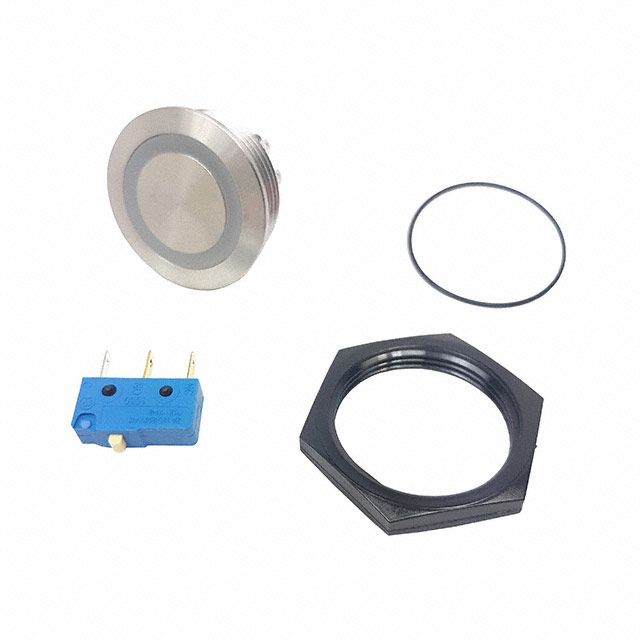

 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 100 mA | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | Green LED | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 30 V | |

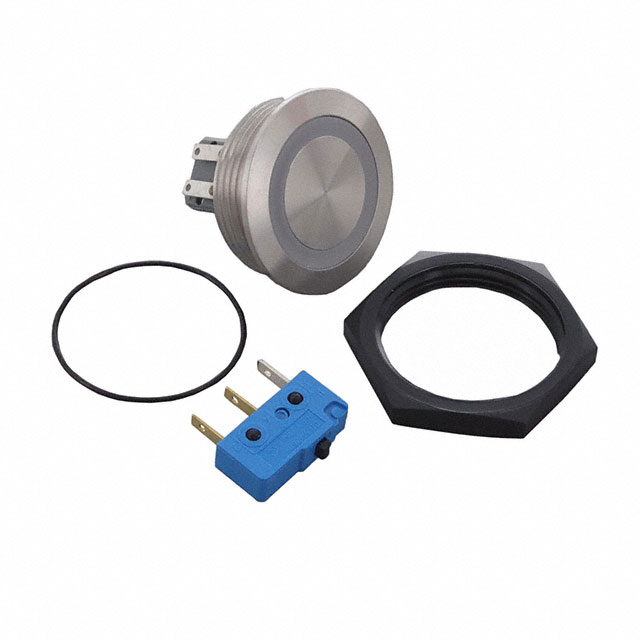

 SCHURTER Inc. | 50000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 10 A | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | LED Red | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 250 V | |

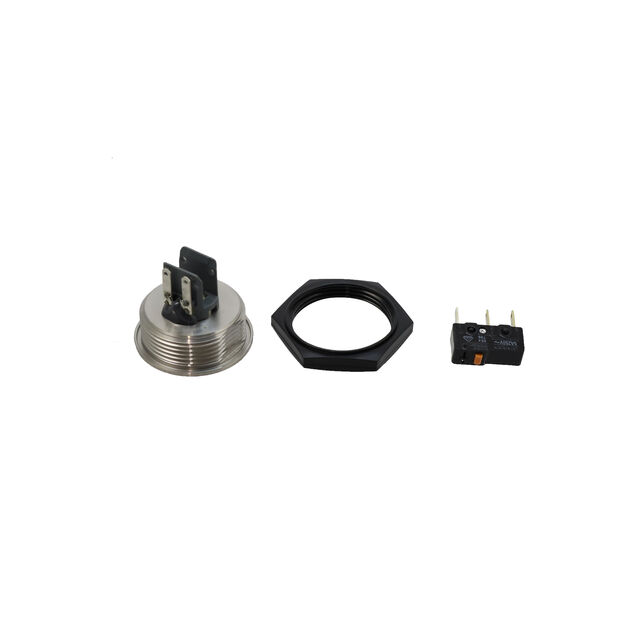

 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 5 A | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | Green LED | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 125 V | |

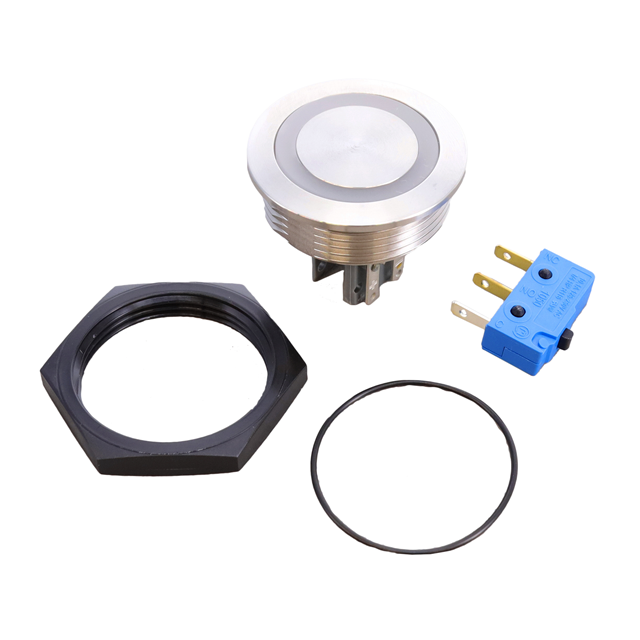

 SCHURTER Inc. | 50000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 10 A | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | Green LED | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 250 V | |

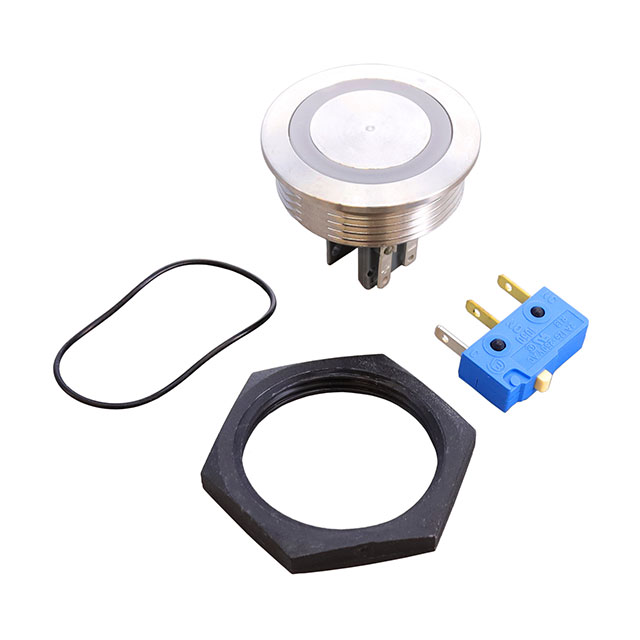

 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | IP40 | SPDT | No Marking | 30.1 mm | 100 mA | On-Mom | 24 V | Quick Connect - 0.110" (2.8mm) | Silver | 85 °C | -25 °C | Blue LED | Anti-Vandal Illuminated | Button Flush Round | Panel Mount Front | 30 V |
