R20355 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

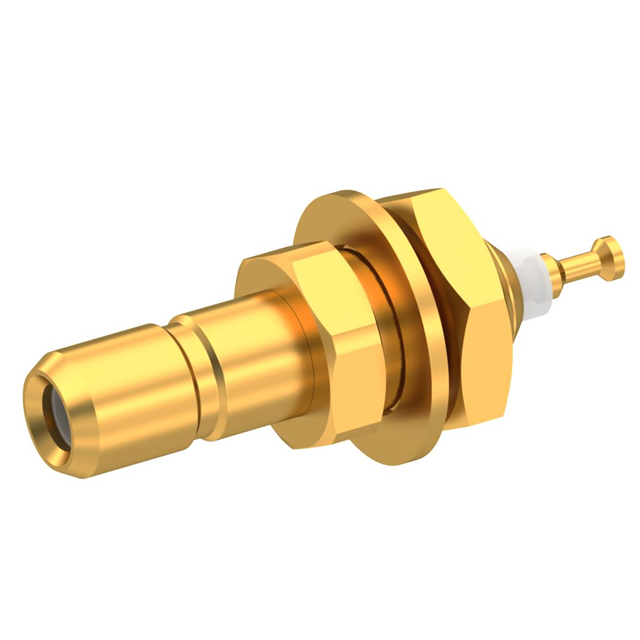

SSMB / BULKHEAD JACK RECEPTACLE
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Center Contact Plating | Voltage Rating | Mating Cycles | Center Contact Material | Connector Type | Mounting Feature | Fastening Type | Housing Color | Number of Ports | Contact Termination | Connector Style | Mounting Type | Frequency - Max [Max] | Impedance | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Gold | 250 V | 500 | Beryllium Copper | Receptacle Male Pin | Bulkhead - Rear Side Nut | Snap-On | Gold | 1 | Solder | SSMB | Panel Mount | 4 GHz | 50 Ohms | Solder |
