69305 Series

Catalog

CONN RCPT HSG 5POS 2.00MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Pitch [x]	Pitch [x]	Contact Type	Note	Insulation Material	Color	Number of Rows	Connector Type	Number of Positions	Number of Positions

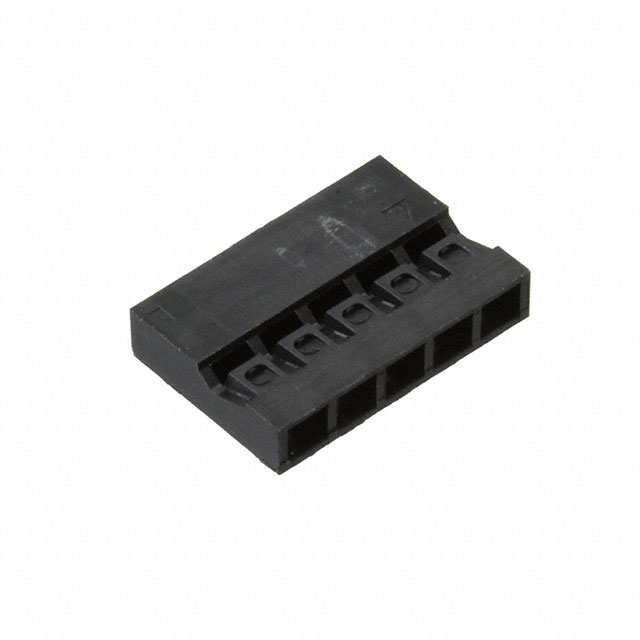

Amphenol ICC (FCI) 69305-005LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle
Amphenol ICC (FCI) 69305-004LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	4
Amphenol ICC (FCI) 69305-010LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	10
Amphenol ICC (FCI) 69305-014LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	14
Amphenol ICC (FCI) 69305-015LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	15
Amphenol ICC (FCI) 69305-013LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	13
Amphenol ICC (FCI) 69305-006LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	6
Amphenol ICC (FCI) 69305-016LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle		16

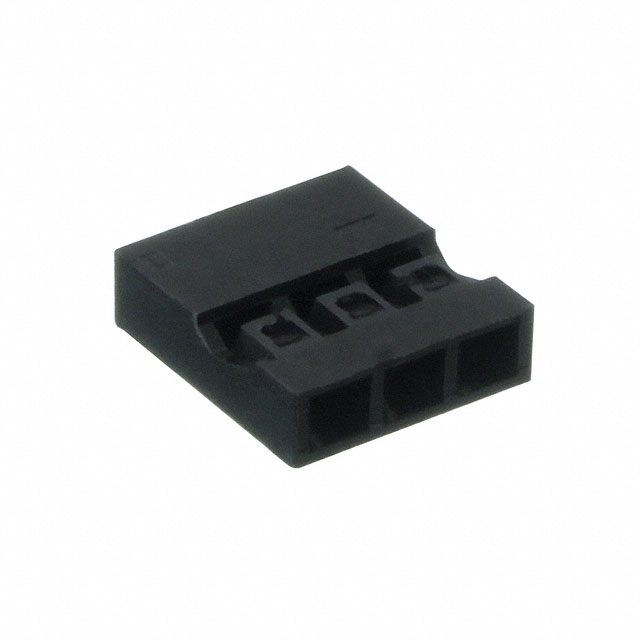

Amphenol ICC (FCI) 69305-003LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle
Amphenol ICC (FCI) 69305-008LF	-40 °C	105 ░C	Crimp	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Black	1	Receptacle	8
