9510 Series
Manufacturer: Belden Inc.
Beta
⌘K

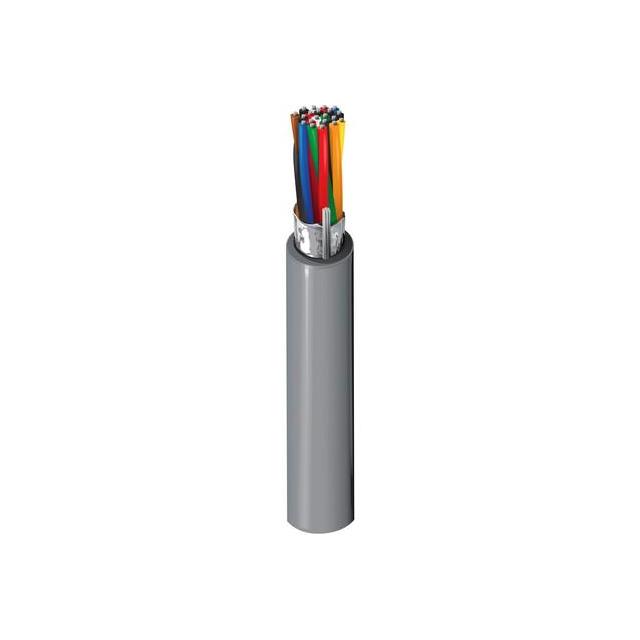

MULTI-PAIR 20COND 24AWG
| Part | Shield Material | Shield Coverage | Number of Conductors | Usage | Features | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Wire Gauge | Conductor Insulation | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Material | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | For Use With/Related Products | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 20 | Computer | Drain Wire | 7 | 32 AWG | Foil | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Poly-Vinyl Chloride (PVC) | 9.35 mm | 0.368 in | 152.4 m | 500 ft | Chrome | 0.864 mm | 0.034 in | UL Style 2464 | Copper Tinned | 300 VDC | 80 °C | -30 ░C | |||||||||

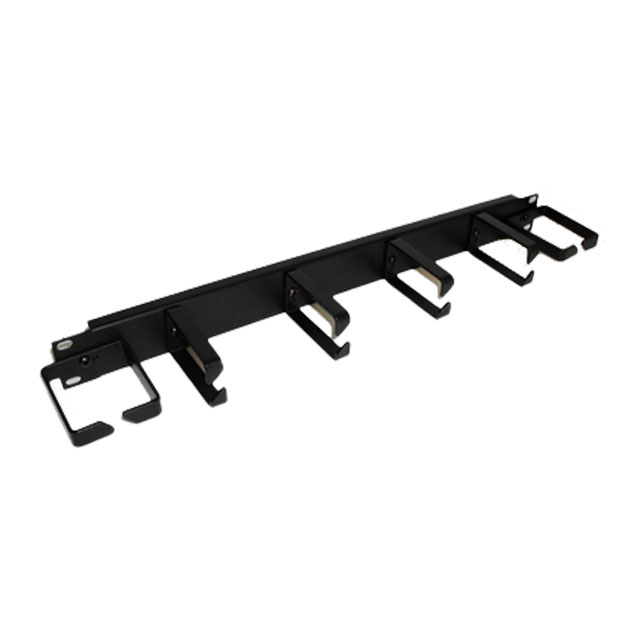

 Belden Inc. | Black | 482.6 mm | 1 in | 19 " | 25.4 mm | Wire Manager | Enclosures | ||||||||||||||||||||||||||
 Belden Inc. | Aluminum | 100 % | 20 | Computer | Drain Wire | 7 | 32 AWG | Foil | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Poly-Vinyl Chloride (PVC) | 9.35 mm | 0.368 in | Chrome | 0.864 mm | 0.034 in | UL Style 2464 | Copper Tinned | 80 °C | -30 ░C | 100 ft | 30.5 m |
