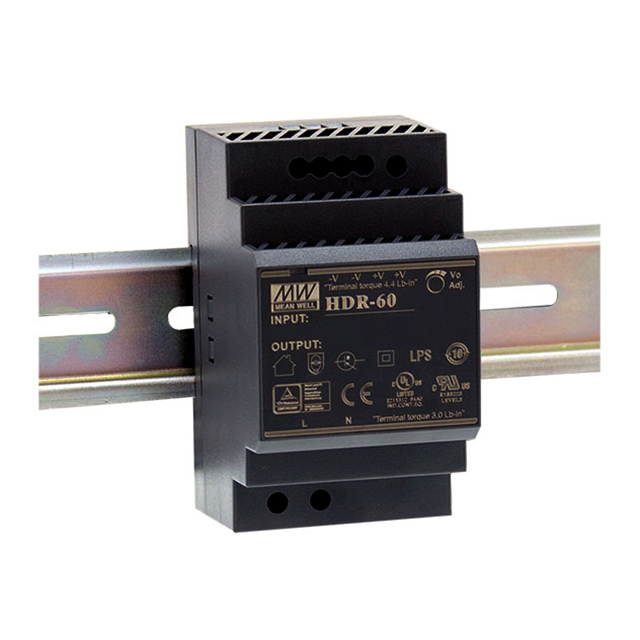

HDR-60 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 5V 33W
| Part | Minimum Load Required | Operating Temperature [Min] | Operating Temperature [Max] | DC Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Isolation | DC Voltage - Input (Min) [Min] | Applications | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Current - Output (Max) [Max] | Voltage - Output 1 | Features | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Input Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | -30 °C | 70 °C | 370 V | 1 | 4000 V | 120 V | Industrial ITE (Commercial) | 264 VAC | 85 VAC | 6.5 A | 5 V | Adjustable Output Universal Input | 85 % | 52.5 mm | 3.54 " | 54.5 mm | 90 mm | 2.15 " | 2.07 in | 33 W | AC or DC | CB CE cULus cURus TUV | |
MEAN WELL USA Inc. | -30 °C | 70 °C | 370 V | 1 | 4000 V | 120 V | Industrial ITE (Commercial) | 264 VAC | 85 VAC | 1.25 A | 48 V | Adjustable Output Universal Input | 91 % | 52.5 mm | 3.54 " | 54.5 mm | 90 mm | 2.15 " | 2.07 in | 60 W | AC or DC | CB CE cULus cURus TUV |
