8852-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Tail Type	Contact Material
Mill-Max Manufacturing Corp. 8852-0-15-80-30-27-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	9.55 mm	0.376 in	0.071 in	1.8 mm	1.42 mm	0.056 "	0.51 mm	0.02 in	Press-Fit	0.2 in	5.08 mm	30 Áin	0.76 Ám	Gold	Standard Tail	Beryllium Copper

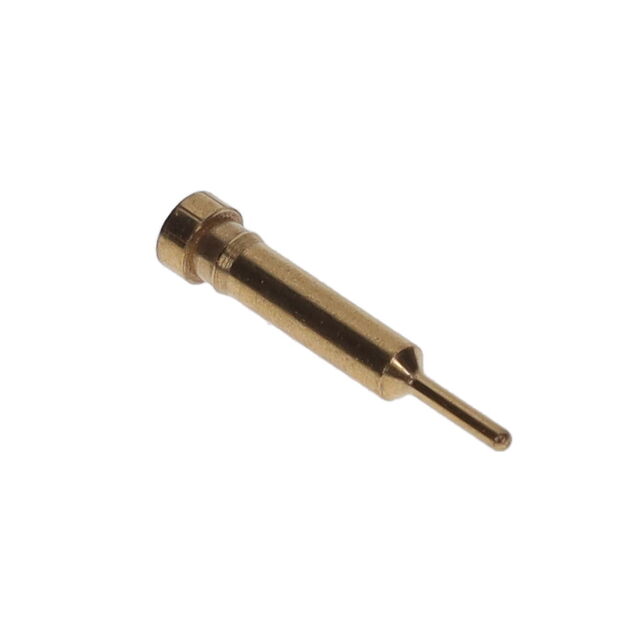

Mill-Max Manufacturing Corp. 8852-0-15-15-30-27-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	9.55 mm	0.376 in	0.071 in	1.8 mm	1.42 mm	0.056 "	0.51 mm	0.02 in	Press-Fit	0.2 in	5.08 mm	30 Áin	0.76 Ám	Gold	Standard Tail	Beryllium Copper
Mill-Max Manufacturing Corp. 8852-0-15-01-30-02-04-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	9.55 mm	0.376 in	0.071 in	1.8 mm	1.42 mm	0.056 "	0.51 mm	0.02 in	Press-Fit	0.2 in	5.08 mm	100 µin	2.54 µm	Tin-Lead	Standard Tail	Beryllium Copper
