W30F2C-P Series
Manufacturer: ODU
Beta
⌘K

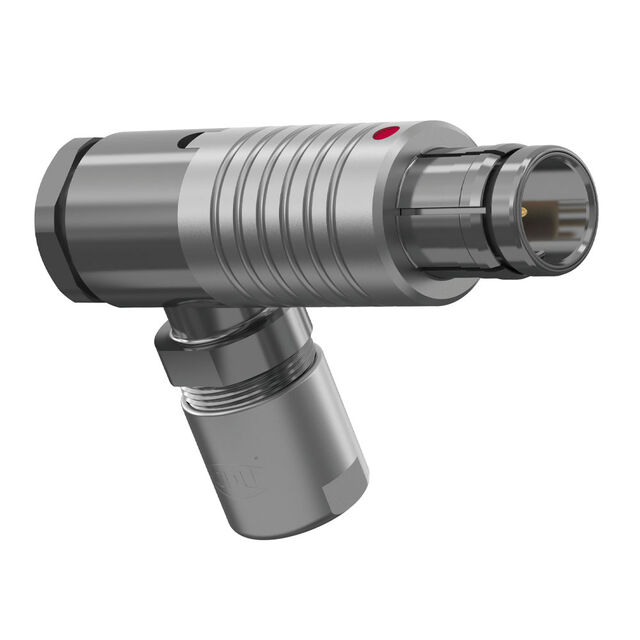

ODU MINI-SNAP RT.ANGLE PLUG, STY
| Part | Insert Material | Current Rating (Amps) | Contact Material | Connector Type | Shell Size - Insert [custom] | Shell Finish | Number of Positions | Ingress Protection | Contact Finish - Mating | Mounting Type | Color | Fastening Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Shell Material | Material Flammability Rating | Backshell Material, Plating | Shielding | Features | Applications | Primary Material | Orientation [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | 7.5 A | Brass | Plug Male Pins | 0 | Chrome over Nickel | 4 | IP68 - Dust Tight Waterproof | Gold | Free Hanging (In-Line) Right Angle | Silver | Push-Pull | 300 VDC | 120 °C | -40 C | 0.177 in | 5 mm | 4.5 mm | 0.197 in | Brass | UL94 V-0 | Brass Chrome over Nickel | Unshielded | Backshell | Industrial Medical Military Testing Equipment & Measurement | Metal | 2 |
